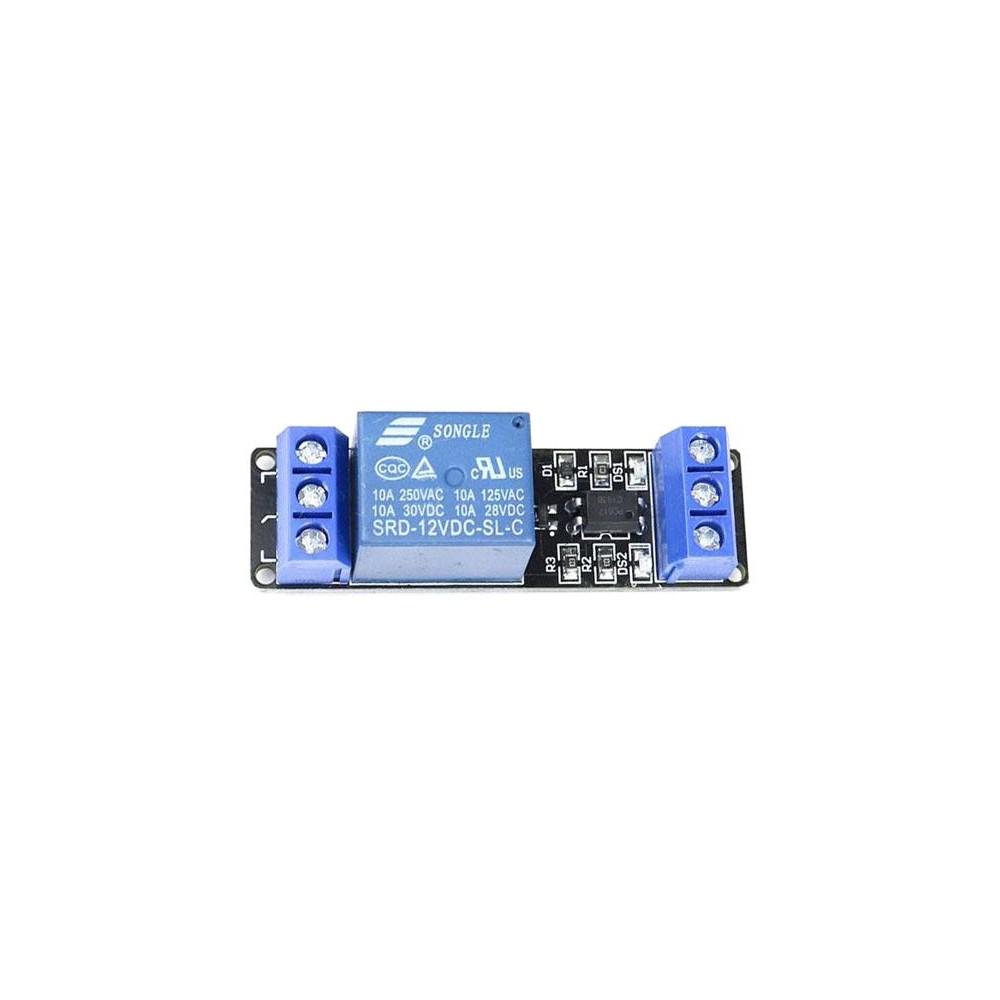

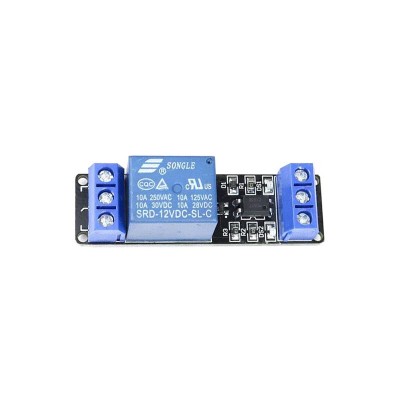

Relay module 1x, power supply 12V, with optocoupler
€3.80
Tax included
4 Items
TP-09830266-EU
Saugus Atsiskaitymas
El. Bankininkystė, Grynais arba Visa - Mastercard
Nemokamas Pristatymas
Nemokamas pristatymas užsakymams nuo 59€.
Nemokamas Grąžinimas
Suteikiame 14 dienų pinigų grąžinio garantiją
1 channel relay module with 12V supply voltage equipped with optocoupler. The relays themselves are switched by grounding the appropriate pin.
Technical parameters:
- working voltage: 12 V
- relay: Songle SRD-xxVDC-SL-C
- relay changeover contact: 250 V AC / 10 A
- start: log.0, GND, current 5mA
- compatible with Arduino, AVR, PIC, ARM etc.
- LED relay status indicator
- dimensions: 53 × 18 × 18.5 mm
The product is not a stand-alone unit, it requires professional installation.
