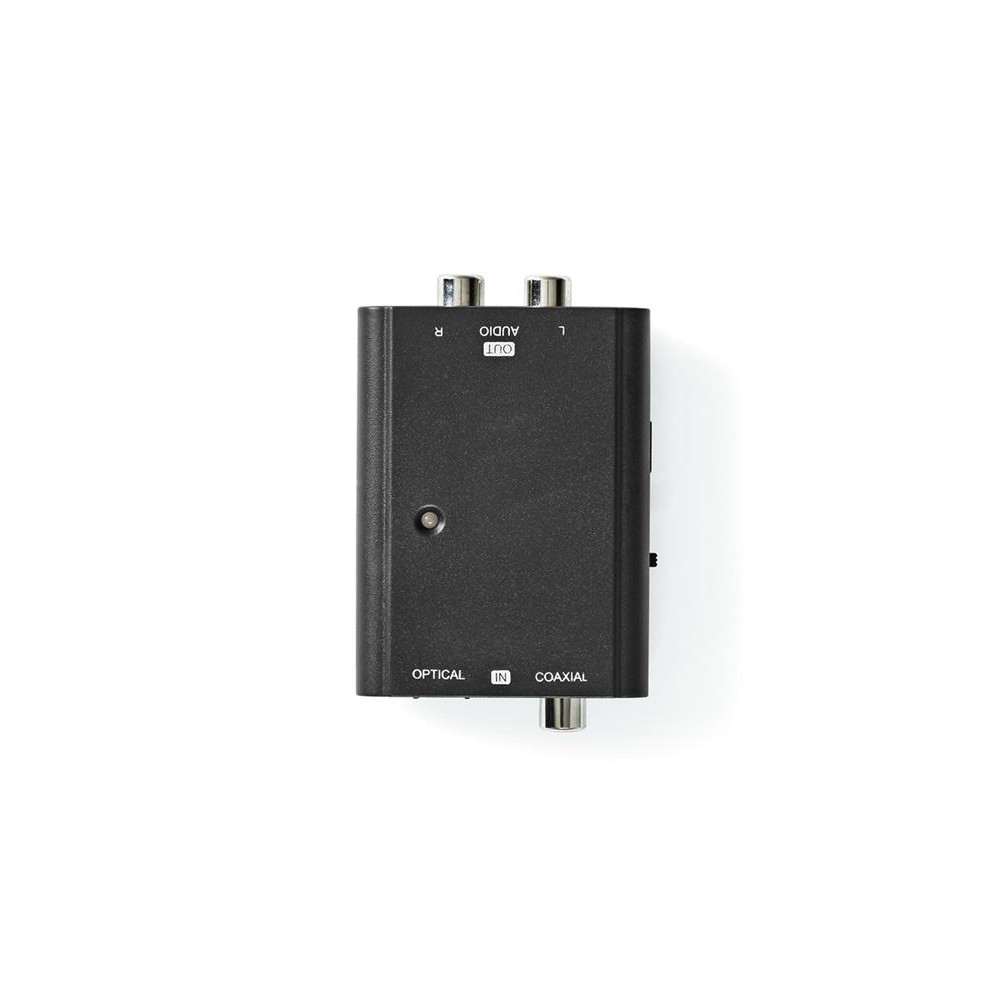

Converter Toslink/2x Cinch NEDIS ACON2509BK

Connect the latest digital screens with optical outputs to amplifiers with analog connections. This Nedis® digital audio to stereo RCA converter converts a digital Toslink or RCA audio signal to an analog stereo audio signal. Comes with a DC-USB charging cable (adapter not included) for easy powering of this digital audio converter.

• 1-way conversion - converts digital Toslink or RCA audio signals to analog stereo audio signals
• Amplifies digital audio signals - maintains the audio signal in the digital domain virtually all the way to the connected device
• Compact design - for easy installation and use

Properties:

- Data transmission direction: 2-way
- Black colour
- Material: ABS
- Power cord side A: USB
- Power supply type: USB power
- Power cord length: 1.80 m
- Standby power consumption: 1.0 W
- Width: 57.0 mm
- Power LED: Yes
- Power switch: Yes
- Device type: Audio converter
- Supported data streams: 44.1 kHz 24-bit
- 48 kHz 24-bit
- 96 kHz 24-bit
- Supported formats: PCM
- Control method: Manual
- Input current: 600 mA
- Input connector: 1x TosLink Socket
- 1x S / PDIF (RCA) Socket
- Output connector: 2x RCA Socket
- Height: 23.0 mm
- Length: 84.0 mm
- Depth: 50.5 mm
- Input power connector (s): DC 9 x 5.5 mm
- Power cable side B: DC 9 x 5.5 mm
- Power consumption in operating mode: 2.0 W
- Weight: 44.0 g
- Input voltage: 5.0 VDC

Package contents:

- Audio converter
- 1.5 m DC-USB power cable
- Quick start guide
