Wall fan axial BASIC 100 standard TES HACO 905

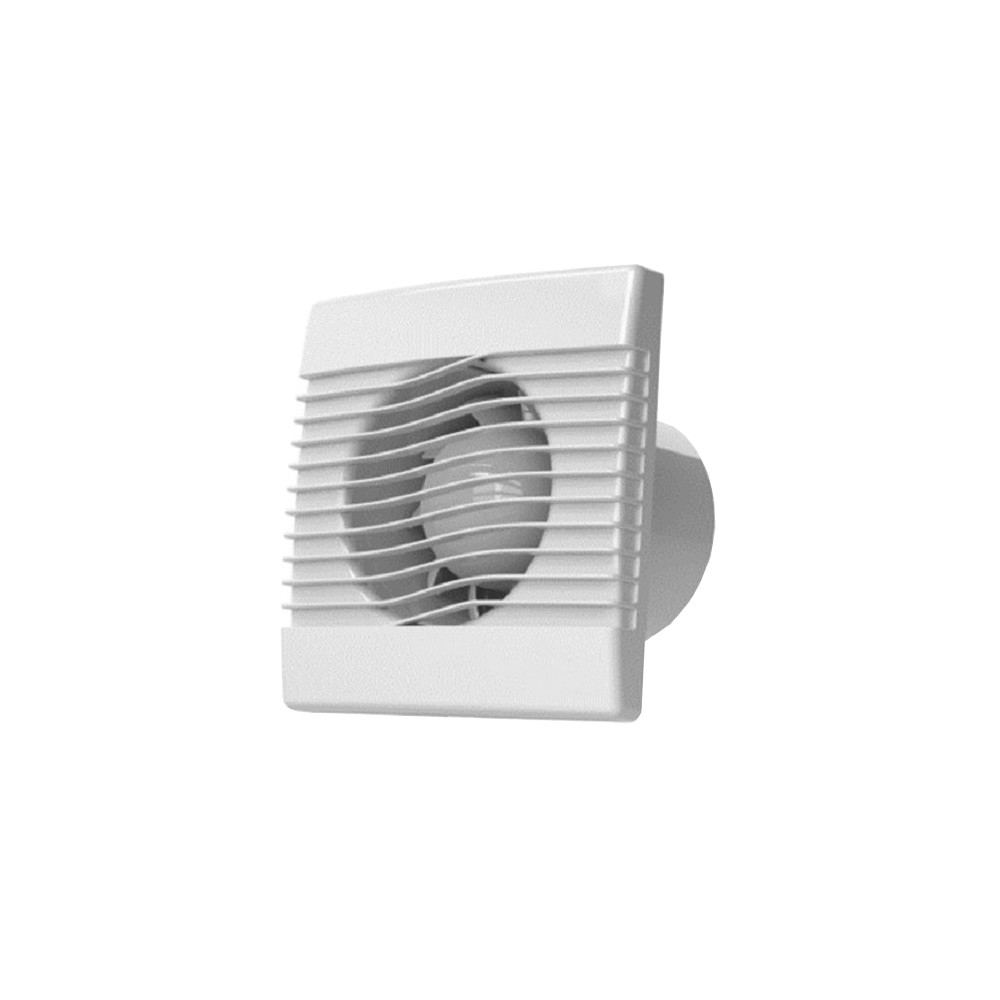

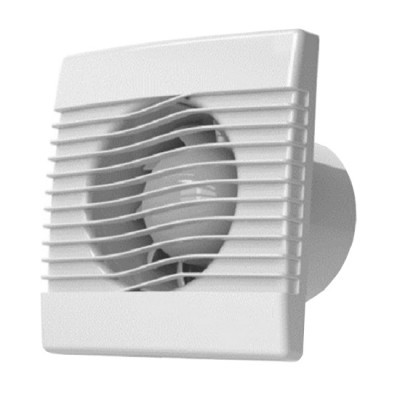

Axial wall fan BASIC 100 S
It is a basic axial fan in our offer suitable for wall installation. Together with the ventilation system and HACO ventilation grilles, they create a complex solution of ventilation especially for living rooms, technical facilities, cellars, attics, offices, etc.
Turbine:
It is characterized by high air and low acoustic pressure. A separate turbine type was designed for each fan size. Its size and shape are the result of parametric simulations. The turbine is mounted on the front of the fan and is so well attached that it is almost impossible to remove. Perfect turbine balancing extends engine life.
Material:
Fan housing and cover grille - high quality, white ABS.
Active parts - polycarbonate.
Cable glands - silicone.
Technical parameters:
Flow rate: 104 m3 / h
Static pressure: 33 Pa
Sound pressure: 39 dB
Voltage: 230 V, 50 Hz
Power: 15 W
Speed: 2400 rpm
Operating temperature: -20 ° C to 40 ° C
Bearings: plain
Thermal protection: up to 125 ° C
Manufacturer part number: AV BASIC 100 S.
Package content: Set of dowel screws.
Dimensions: A: 160.5mm, B: 113mm, C: 100mm, D: 85mm.
