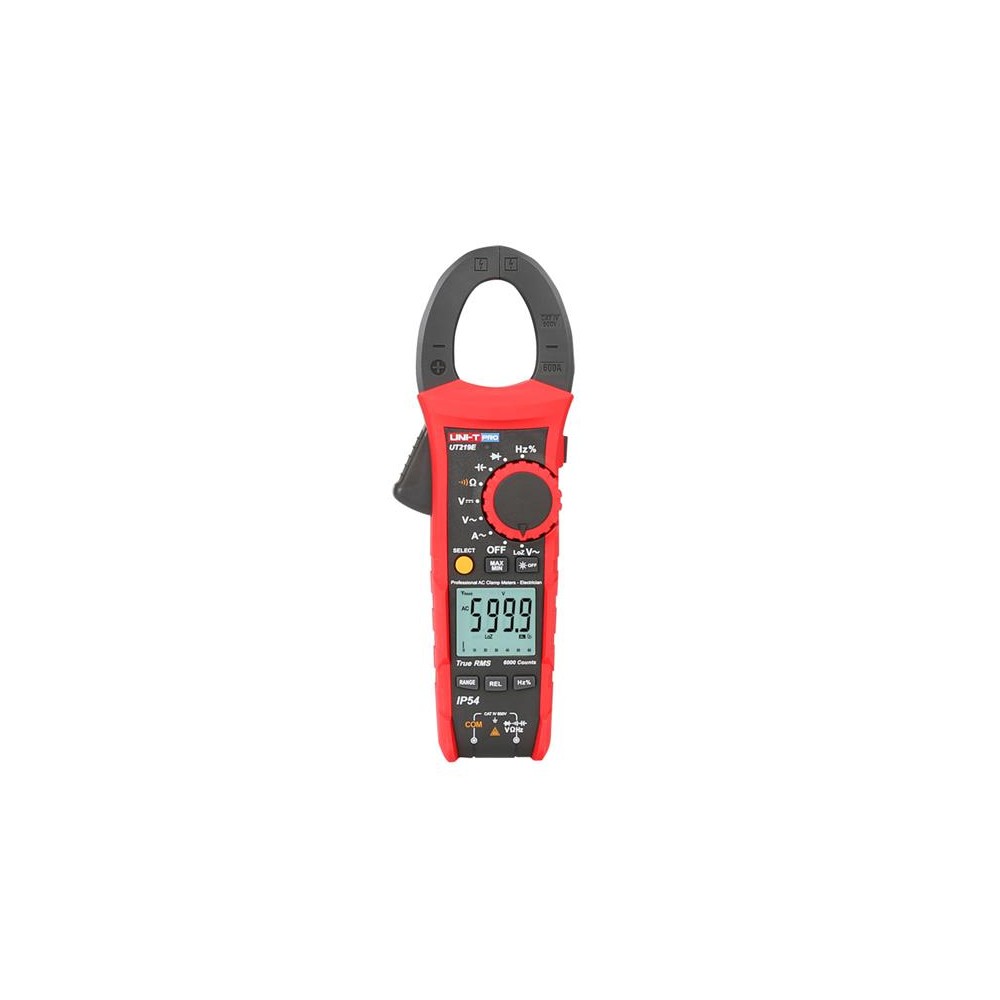

Multimeter UNI-T UT219E clamp PRO Line

Multimeter UNI-T UT219E clamp PRO Line
Clamp Multimeter UNI-T UT219E PRO Line

Product parameters and functions:

- display count: 6000
- auto/manual range 　
- jaw size: 33mm
- True RMS 　
- diode test: 6V/10V
- measuring digit conversion rate: times/s 3
- measuring analogue bar conversion rate: times/s 10
- analogue bar: 31 section
- LCD display (HTN): interface, single display
- auto power off 　
- low battery indication 　
- data hold (H) 　
- relative value (REL) 　
- MAX/MIN 　
- functional selection (SELECT) 　
- auto backlight 　
- 2m drop proof 　
- protection grade: IP54


Technical parameters:

- AC current (A): 60.00A - 600.0A ±(1.8%+6)
- AC voltage (V): 6.000V - 600.0V ±(1.0%+6)
- LoZ ACV: 600.0V ±(2.5%+6)
- DC voltage (V): 600.0mV - 600.0V ±(0.6%+3)
- resistance (Ω): 600.0Ω - 60.00MΩ ±(1.0%+3)
- capacitance: 60.00nF - 60.00mF ±(4.0%+7)
- frequency: 60.00Hz - 10.00MHz ±(0.1%+6)
- AC current frequency response: 40Hz - 400Hz
- AC voltage frequency response: 40Hz - 400Hz
- input impendance: ≥10MΩ
- duty ratio: 0.1% - 99.9% ±(2.6%+7)
- power supply: AAA 1.5V alkaline battery × 3
- LCD size: 35mm × 31mm
- device weight: 338g
- device size: 235 × 83 × 47 mm


Accessories:
- testing probes
- battery
- carrying bag
- manual

Manufacturer:
UNI-TREND
