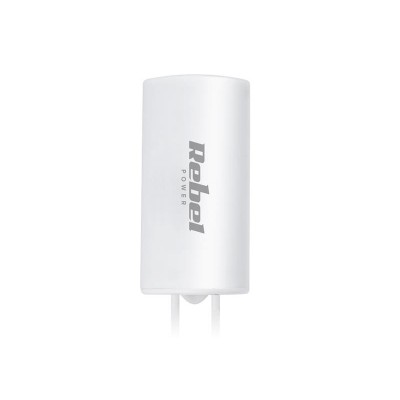

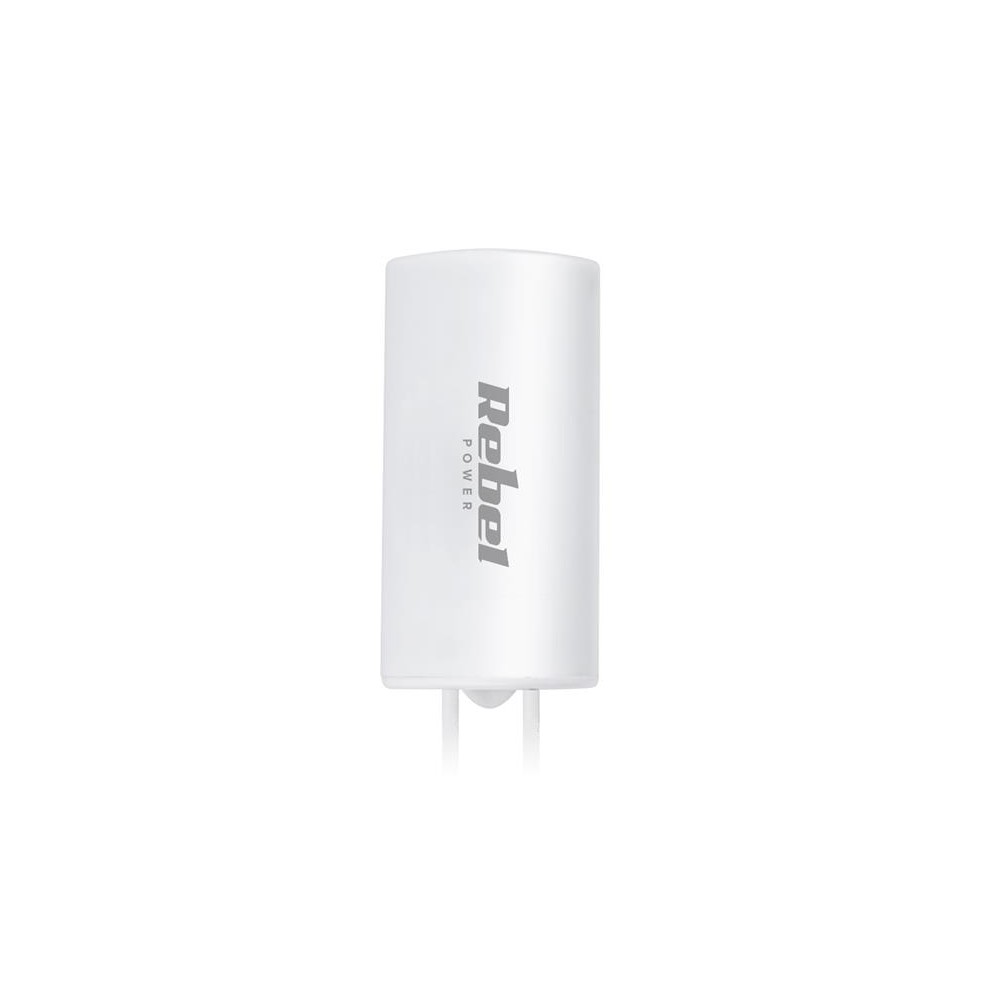

Capacitor for single-phase motors 15uF 450V
Application: refridgerators, cooling fans, electrical pumps, washers, ventilators, air conditioning
Specification:
- Capacity: 15 uF
- Tolerance: +/- 5%, +/- 10%
- Operating voltage: 110 ~ 600 V AC
- Temperature range: -40°C ~ +70°C
- Class: C/D IEC60252
- High capacitive stability
- High insulation resistance
- Small dimensions:
- Height 68 mm
- Diameter: 35 mm
- External shape: UL 94 V-O, cyllinder-shaped case made from flame-resistant plastic
- Connection type: cable
- Size 73 x40 mm
Application: refridgerators, cooling fans, electrical pumps, washers, ventilators, air conditioning
Specification:
- Capacity: 15 uF
- Tolerance: +/- 5%, +/- 10%
- Operating voltage: 110 ~ 600 V AC
- Temperature range: -40°C ~ +70°C
- Class: C/D IEC60252
- High capacitive stability
- High insulation resistance
- Small dimensions:
- Height 68 mm
- Diameter: 35 mm
- External shape: UL 94 V-O, cyllinder-shaped case made from flame-resistant plastic
- Connection type: cable
- Size 73 x40 mm
