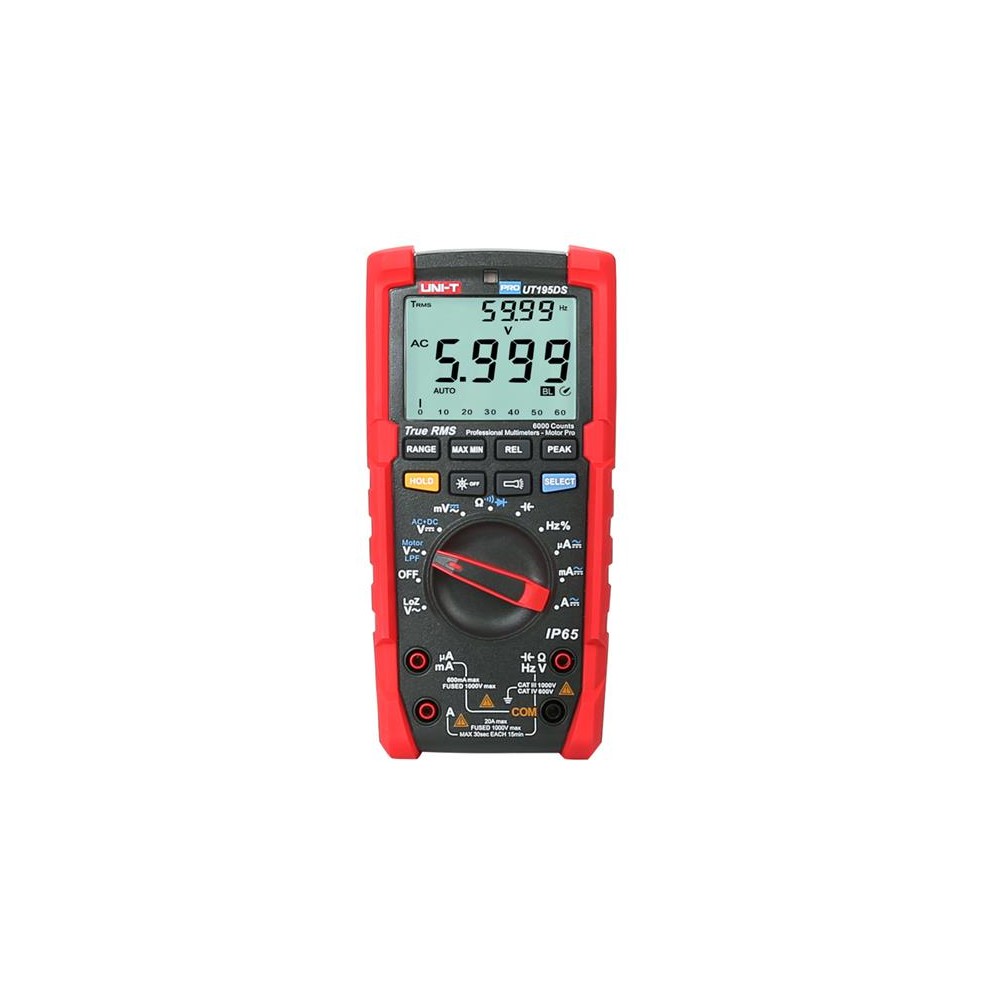

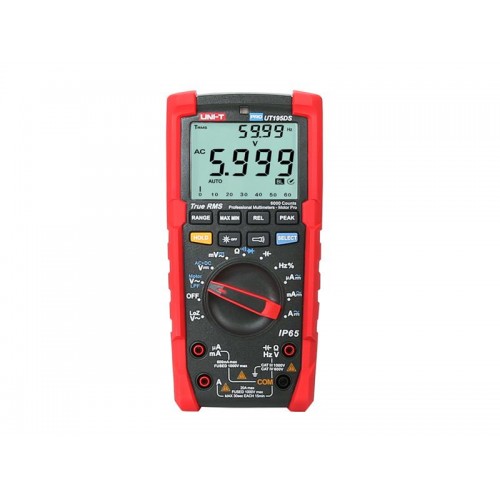

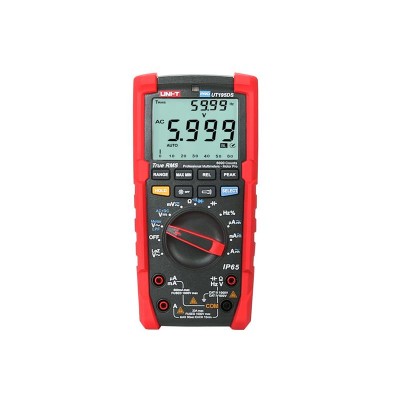

Multimeter UNI-T UT195DS PRO Line

Multimeter UNI-T UT195DS PRO Line
Multimeter UNI-T UT195DS PRO Line

Product parameters and functions:

- display count: 6000
- display interface (HTN): dual display
- measuring digit conversion rate: times/s 5
- measuring analogue bar conversion rate: times/s20
- analogue bar: 31 section
- True RMS 　
- AC voltage frequency response: 45 - 5kHz
- AC current frequency response: 45 - 5kHz
- low pass filter test: (1kHz 3dB attenuation) 　
- diode/continuity test: 3V
- auto/manual range
- auto power off
- continuity buzzer
-low battery indication
- Data hold
- MAX/MIN
- functional selection
- electrical torch
- auto backlight
- working temperature: 0 °C - 40 °C
- 2m drop proof
- protection grade: IP65


Technical parameters:

- DC voltage: 600mV - 1000V ±(0.5%+3)
- AC+DC: 6.000V - 600V ±(1.5%+4)
- AC voltage: 600mV - 750V ±(0.7%+3)
- LoZ ACV: 600.0V ± (2.0%+3)
- DC current (A): 600.0μA - 20A ±(0.8%+3)
-AC current (A): 600.0μA - 20A ±(1.0%+3)
- resistance (Ω):600.0Ω - 60.00MΩ ±(0.8%+2)
- capacitance: 6.000nF - 60.00mF ±(3%+5)
- frequency: 60.00Hz - 40.00MHz ±(0.1%+4)
- duty ratio: 0.1% - 99.9% ±(2.0%+5)
- peaks hold: 250μS
- power supply: 9V 6F22 carbon-zinc or 6LR61 alkaline battery
- LCD size: 66mm × 51mm
- device weight: 473g
- device size: 195mm × 95mm × 58mm


Accessories:
- testing probes
- battery
- carrying bag
- manual


Manufacturer:
UNI-TREND
