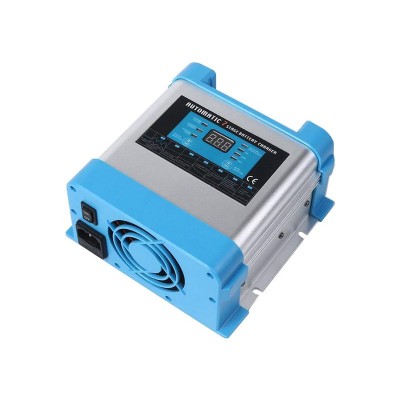

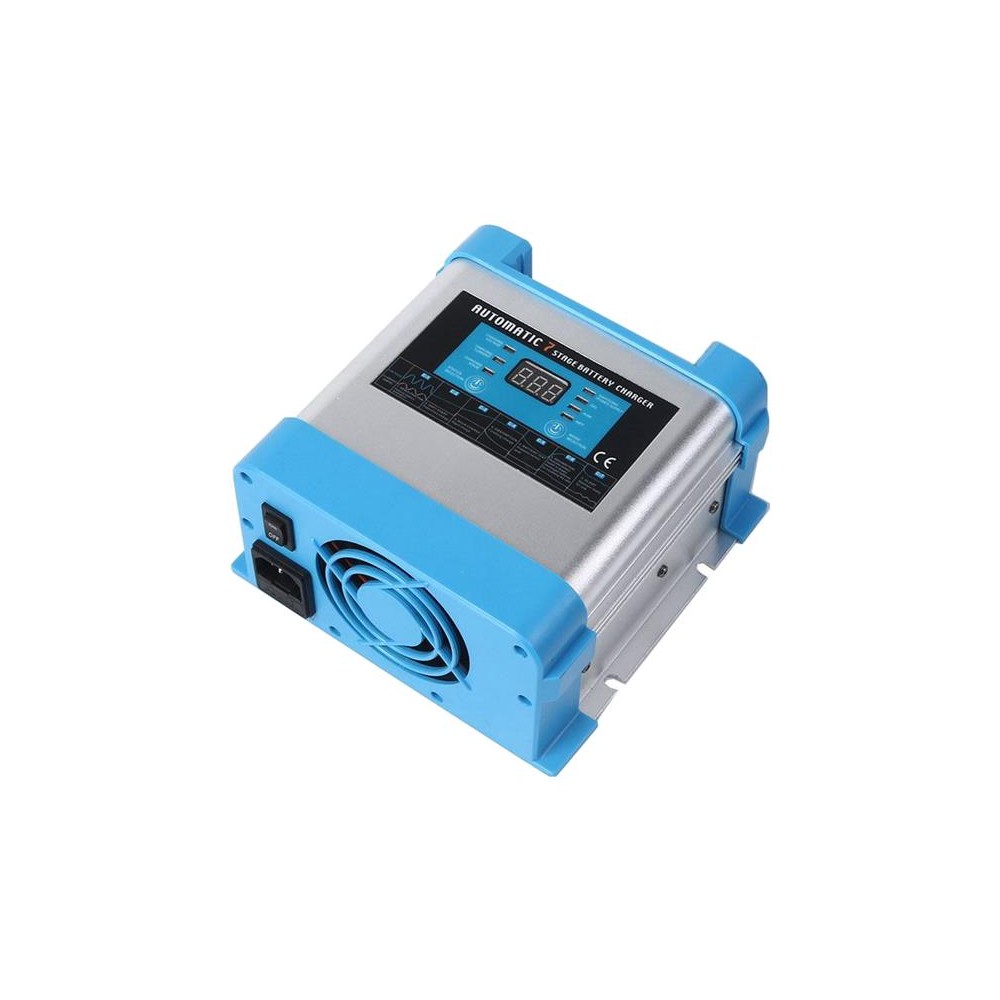

Battery charger CARSPA EBC1220 12V-20A
Charger for Pb batteries CARSPA EBC1220, 12V / 20A, with automatic. Intelligent automatic charger for lead-acid accumulators (batteries) with a seven-stage automatic device, designed for permanent connection with a rechargeable battery. Suitable for backup sources, caravans, island systems, etc.
Charging phase:
C-1 Desulfation:
Pulse current charging. This phase is optional and precedes the standard charging cycle.
C-2 Soft Start:
Phase of gradual increase of charging current up to a maximum value of 20A
C-3 Constant current charging:
Key phase of the charging cycle. Constant current charging until a terminal voltage of 14.2 to 14.8V is reached (optional in three stages)
C-4 Absorption charging:
Constant voltage charging 14.2–14.8V with a gradual decrease in charging current
C-5 Battery Test:
At 90 sec. test, the battery is discharged and the terminal voltage is measured at the same time. If the test is successful, the last, maintenance level automatically follows. If the test fails and the terminal voltage drops rapidly during the test, step 6 follows.
C-6 Reconditioning charging:
In reconditioning mode, the battery is charged for 4 hours at a reduced constant current
C-7 Maintenance Mode:
Maintaining the battery terminal voltage of 13.2-13.8V (optional in three stages).
Technical parameters:
- supply voltage: 190–265 V AC
- max. charging current: 20A
- for lead starter and traction batteries 12V 60–200Ah, AGM and AGM GEL
- temperature compensation of the charging current with the enclosed temperature sensor
- LED display with information on charging status, charging current and voltage and charge level
- efficiency: 88%
- operating temperature 0–40 ° C
- dimensions: 176 × 175 × 95mm
- delivery including power and charging cables
