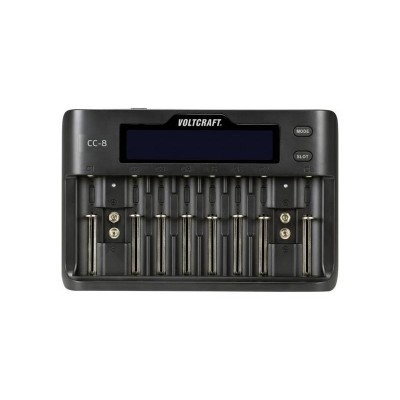

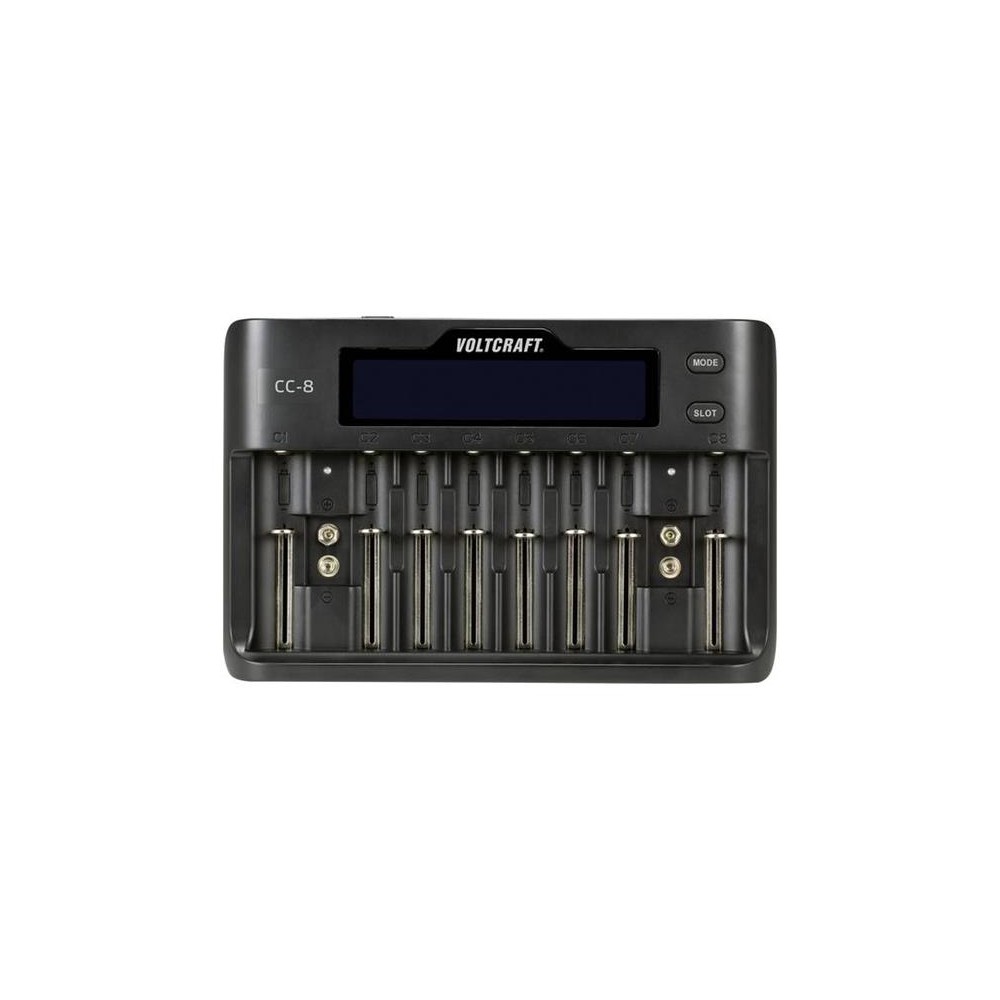

Battery charger VOLTCRAFT CC-8

Voltcraft CC-8 round cell charger
Voltcraft CC-8-charges NiMH / NiCD, Li-Ion and LiFePo4. The charger is compatible with a maximum battery length of 74 mm. The charger has ten independent charging slots, including two 9V blocks. The LCD displays all the necessary information, such as Battery voltage (V), charging current (mA), capacity (mAh) and status in% for the selected slot.
Built-in charging technology recognizes inserted batteries and adjusts the charging current individually. The charger can charge your batteries so quickly and safely.


Product parameters:

- Compatible with Ni-MH / CD, Li-Ion and LiFePo4 (max. Length: 74 mm)
- 10x slots (including 2x 9 V batteries)
- Intelligent ultra fast charging function (max. 2 A charging current)
- Detection of defective batteries
- Reverse polarity protection
- Short circuit protection
- Overcharge protection
- Max. 5 type C batteries can be charged simultaneously


Technical parameters:

Suitable battery: Li-Ion, LiFePO, NiMH, NiCd
Suitable for battery size:
A, AA, AAA, Mini (AAAA), Small mono, Sub-C, 9 V
10340, 14500, 16340, 17500, 17650, 18490, 18500, 18650, 21700, 22650, 26500, 26650

Number of charging channels / shafts: 10
Number of AAA charging shafts: 8
Number of AA charging shafts: 8
Number of charging shafts C: 5
Number of charging shafts 9V: 2
Operating voltage: 12 V / DC
Max. shaft charging current: 2000 mA
Battery charging current (AAA): 1000 mA
Battery charging current (AA): 1000 mA
Battery charging current (small mono): 1000 mA
Battery charging current (large mono): 1000 mA
Battery charging current (9 V): 60 mA
Battery charging current (Li-Ion / Li-Po): 2000 mA
Inspection of individual shafts
Battery recognition
Battery defect detection
Battery diagnostics
Typical battery charging time 9 V 150 mAh: 150 min

External length: 230 mm
External width: 150 mm
External height: 34 mm
Weight: 635 g

Scope of delivery:
- Charger CC-8
- Power supply
