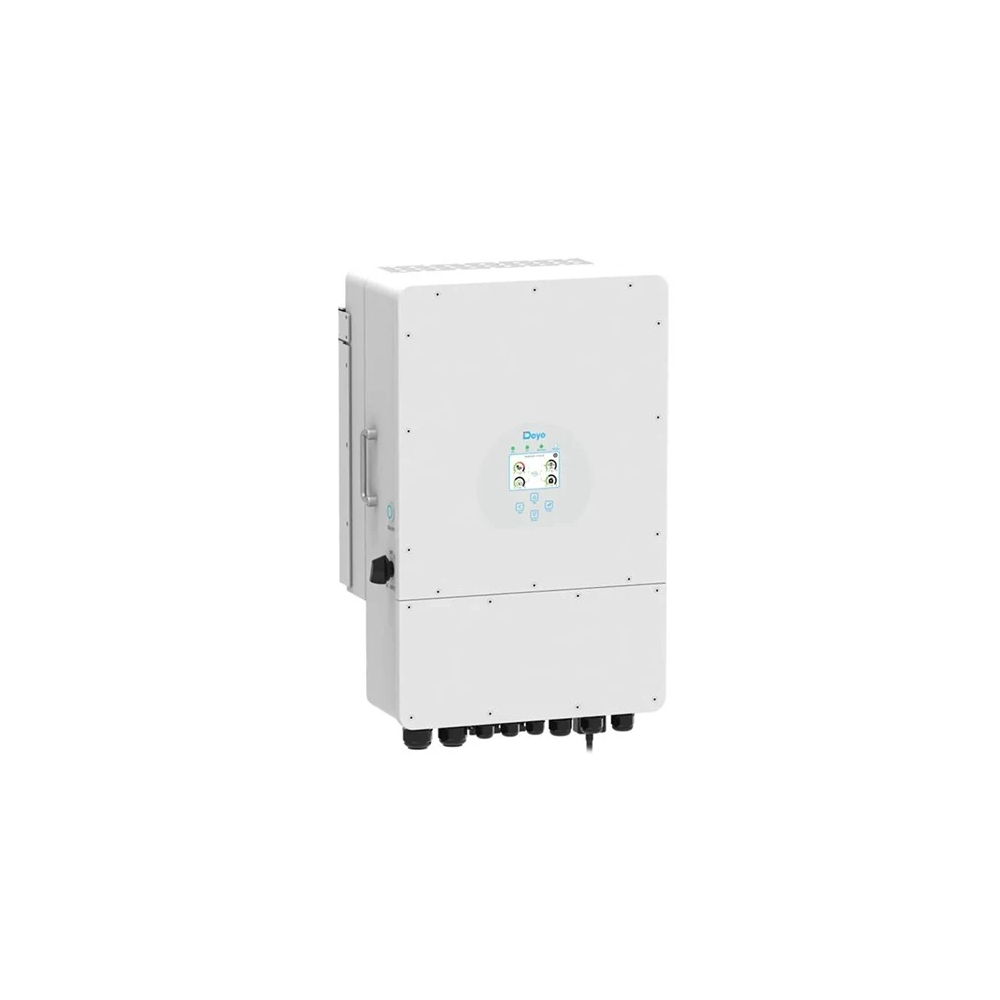

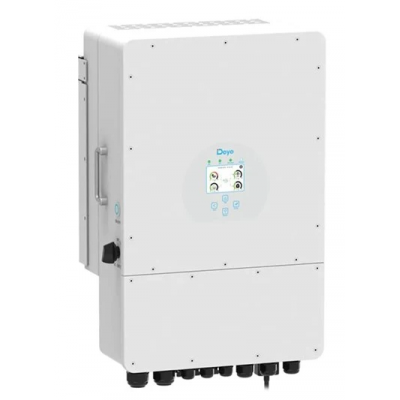

Hybrid inverter DEYE SUN-10K-SG04LP3-EU 10kw

The versatile Deye SUN-10K-SG04LP3-EU, low-voltage 3-phase hybrid inverter with wall mount combines a solar inverter and a battery charger. It supports asymmetric 3-phase output with a range of 0 to 5 kW per phase, 100% overload capability for 10 s, extending usability to the absolute maximum. The inverter is compatible with low voltage 40V to 60V batteries. Communication with BMS takes place via CAN or RS485 interface and is fully compatible with lead and lithium batteries of many brands. The color LCD display provides a user-friendly interface for both system overview and configuration (battery management, AC/solar charging depending on different applications, etc.). The biggest advantage of this converter is the adjustable "smart load" input / output, where you can connect a generator, mains converter, or heating element for heating water. The options of this port offer you to use similar functions as the wattrouter.


Product parameters

3-phase asymmetric output
Load up to 11 kW
Up to 5 kW on one phase
Number of MPP Trackers: 2 inputs (2+1)
MPPT voltage range: 200 to 650 V
Support for lead-acid and lithium low-voltage batteries
Solarman intelligent monitoring platform
Unique functions Smart Load, Grid peak shaving, phase balancing
Clear and colorful LCD display
Degree of protection IP65
Anti-PID function


Technical parameters

Number of stages: 3
Max. DC input power: 13 kW
Max. output power: 11 kW
Maximum output current: 15.2 A
Number of MPP Trackers: 2
Total number of strings: 2 + 1
PV input current: 26 + 13 A
MPPT operating range: 200 to 650 VDC
Battery system: low voltage
Battery types: lead-acid, lithium (with BMS)
Number of battery inputs: 1
Battery voltage range: 40 to 60 VDC
Max. charging and discharging current: 210 A

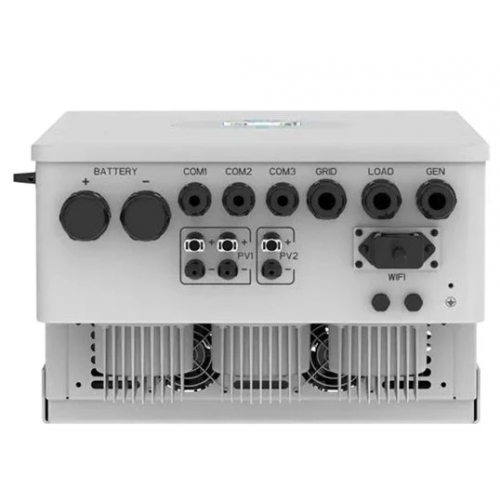

Communication interface: RS-232, CAN / RS-485, Modbus
BMS communication interface: CAN / RS-485
LCD display: yes, color
Efficiency: 97.6 %
Cooling: active, intelligently controlled
Design: on the wall
Use: indoor and outdoor
Operating temperature: -40°C to 60°C
Weight: 33.6 kg
Dimensions (DWH): 281 x 422 x 702 mm
Protection rating: IP65


Package contents:
Hybrid inverter
Wall bracket
4x concrete anchor
3x measuring coil 100 A / 50 mA
Temperature sensor for Pb batteries
Wi-Fi dongle
