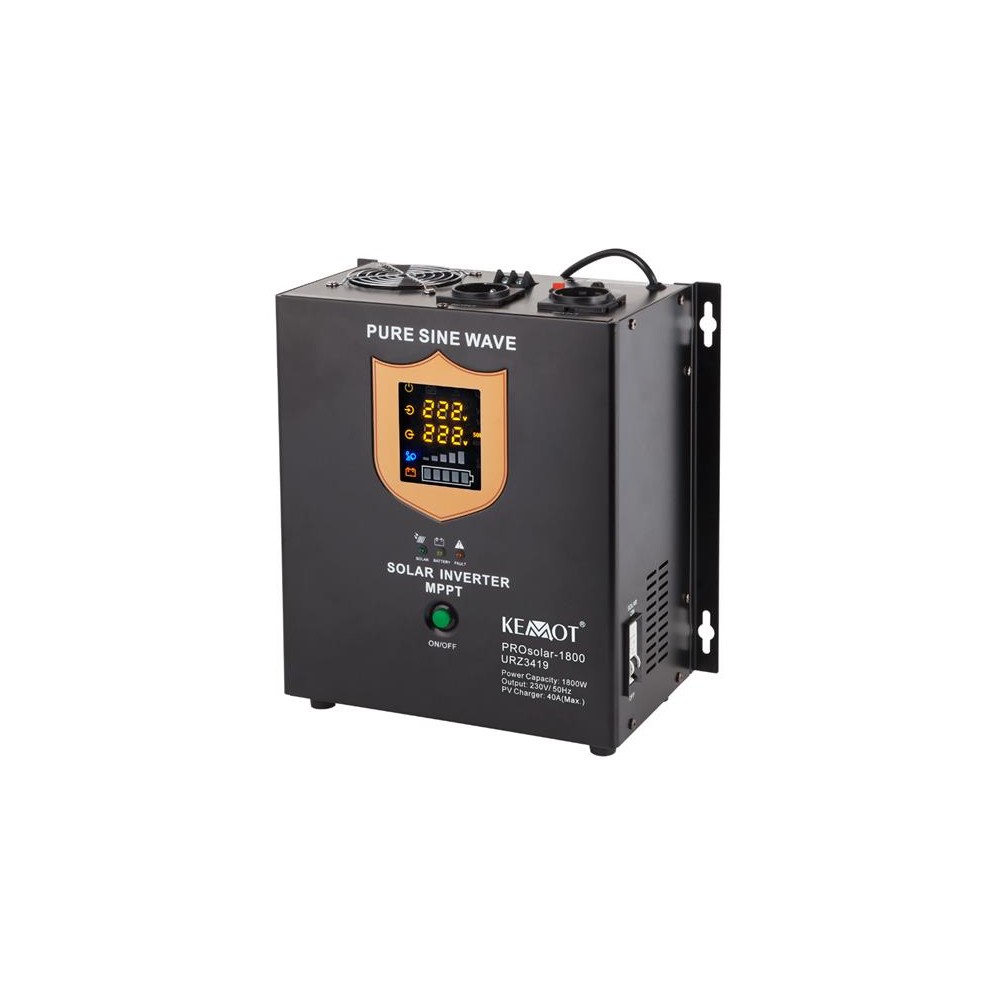

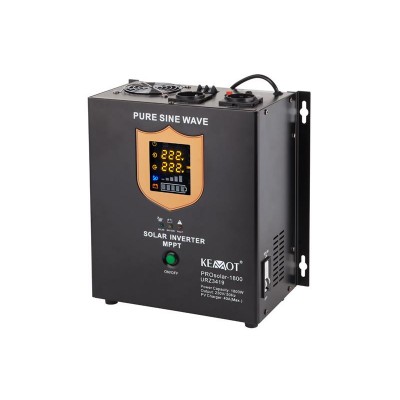

Solar regulator KEMOT PROsolar-1800 1800W 24V Black with voltage converter

It converts direct voltage produced by photovoltaic panels into alternating voltage (230V/50Hz) for photovoltaic power plants.

The device is also suitable for powering electrical devices requiring 230V AC voltage and as an emergency power source it will ensure trouble-free operation of devices requiring continuous power supply, e.g. central heating pumps or alarm and monitoring systems.

The solar inverter KEMOT PROsolar-1800 has a solid cover, equipped with a holder that allows it to be hung on a wall, for example in a boiler room or electrical switchboard.

• Pure sinusoidal waveform
• Wide compatibility (possibility of connecting different devices)
• Toroidal transformer C.R.G.O
• Control by two processors
• High efficiency
• Efficient MPPT solar charge controller
• Two modes: network priority and photovoltaic
• Automatic protection and signaling: against short circuit, too high / low voltage, overheating


Technical parameters:

- Model: URZ3419 - 2500 VA
- Power: 1800 W
- Battery voltage: 24 V DC
- Operating mode: PV (PV / PV priority) / AC (AC / mains priority)
- PV mode:
- Input voltage range: 30 V DC - 50 V DC
- Max. charging current: 40 A (depending on the PV cell used)
- Maximum conversion efficiency: 98%
- AC mode :
- Input voltage range: 190V AC ~ 260V AC
- Input frequency range: 45-65Hz Range
- Output voltage: 206V AC ~ 242V AC
- Input power factor (AC / DC): 98%
- Efficiency: network traffic >= 96%
- Charging current: 10 A
- Converter output:
- Inverter output voltage: 230 V ± 3%
- Output frequency: 50 Hz / 60 Hz ± 0.3 Hz
- Output power factor: > = 0.8
- Waveform distortion: Resistive load = <3%
- Switching time from PV to AC mode: standard 4 ms; max. 6 ms
- Efficiency: Inverter Mode > = 80%
- Inverter overload: 110%-130% shutdown after 30s, 130%-150% shutdown after 3s
- Short circuit: Automatic shutdown
- Ambient temperature 0 ~ 40 °C
- Air humidity 10% ~ 90%
- Noise level = <50 dB
