TTL logic level converter for Arduino with TXS0108E
€1.43
Tax included
4 Items
TP-09830081-EU
Saugus Atsiskaitymas
El. Bankininkystė, Grynais arba Visa - Mastercard
Nemokamas Pristatymas
Nemokamas pristatymas užsakymams nuo 59€.
Nemokamas Grąžinimas
Suteikiame 14 dienų pinigų grąžinio garantiją

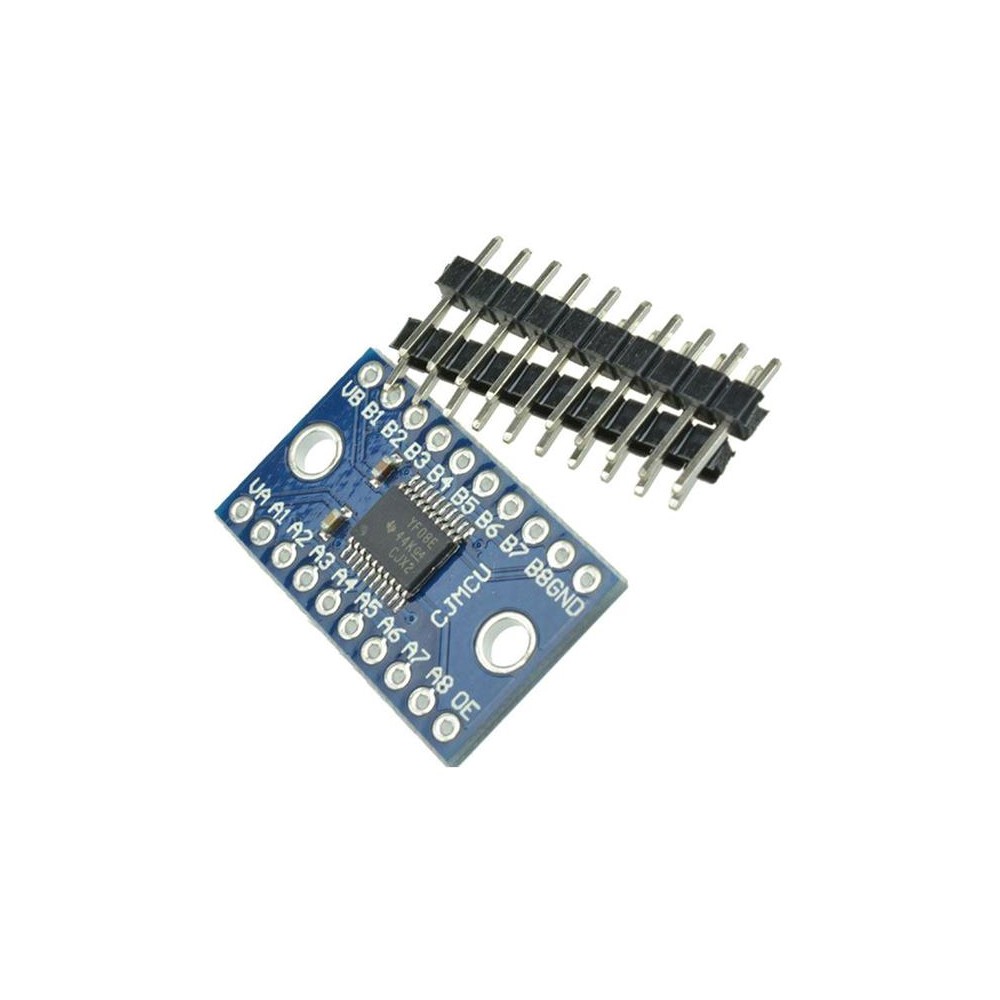

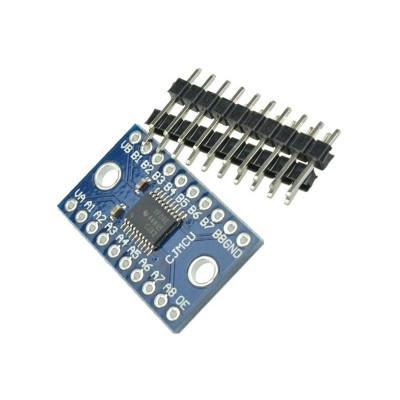

8-channel bidirectional TTL 3.3V / 5V logic level converter with TXS0108E chip.
Technical parameters:
- chip TXS0108E (Texas Instrument)
- VCCA - 3.3V power supply (1.2-3.6V)
- VCCB - power supply 5V (1.65-5.5V)
- A1-A8 - low level side TTL 3.3V
- B1-B8 - high level side TTL 5V
- OE - activation of the module when log.1 is on its input
- data transfer rate: 20Mb / s
- dimensions: 26 × 17 mm
The product is not a stand-alone unit, it requires professional installation.
