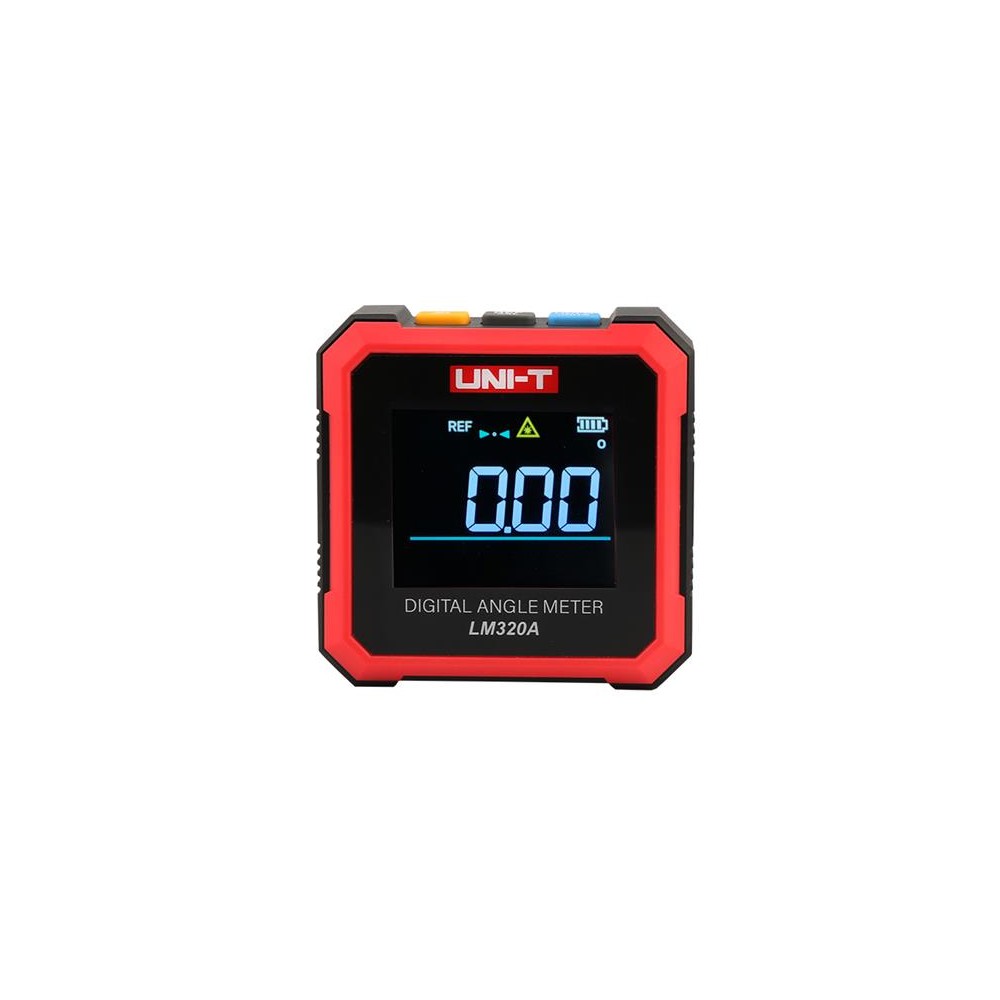

Protractor UNI-T LM320A

The LM320A digital protractor allows you to accurately measure the inclination of the plane, it actually replaces the spirit level for construction work - in the construction of roofs, floors, sewers. However, it is much more accurate than the spirit level (± 0.2 ° at a resolution of 0.01 °). The device is built into an aluminum alloy casting, which is a guarantee of durability at work. The device has an EBTN display on which light data is displayed on a dark background, the data on the display automatically rotates according to the inclination of the device, so that they are always easy to read. There are magnets on four sides of the device for easy mounting on a metal structure. The basic unit of measurement is degree (°), but it is possible to select other units: percent (%), millimeters per 1m length or inches per 1 foot. The device, unlike the LM320B, does not have a built-in laser. The device has a built-in lithium battery 3.7V, 300mAh, which can work with one charge for 2 hours and which is charged in the device with the included USB-C cable.

Product parameters :

- precise digital protractor (inclinometer)
- EBTN display with 0.01 ° resolution


Technical parameters :

- angle measurement accuracy: ± 0.2 °
- measurement resolution: 0.01 °
- laser indication: no
- measuring range: 4 x 90 °
- display: EBTN, with illumination and automatic data rotation
- magnetic fastening to the substrate: yes, on two sides
- measurement modes: relative / absolute measurement
- lock (freeze) the value on the display: yes, HOLD
- power supply: lithium battery 3.7V / 300mAh
- working time on one charge: 2 hours
- automatic shutdown: yes, after five minutes of inactivity
- low battery indication: yes
- battery charging: in the device, with the included USB-C cable
- ambient operating temperature: 0 ° C to 50 ° C
- net product weight: 106 g
- product size: 61 x 61 x 31 mm
- product color: black and red


Contents of individual packaging :

- digital protractor LM320A: 1pc
- USB adapter: 1pc
- USB-C extension cable: 1pc
- instructions for use: 1pc


Wholesale packaging :

- standard quantity per carton: 6pcs
- dimensions of the standard carton: 165 x 150 x 130 mm


MANUFACTURER: UNI-TREND
www.uni-t.cz
