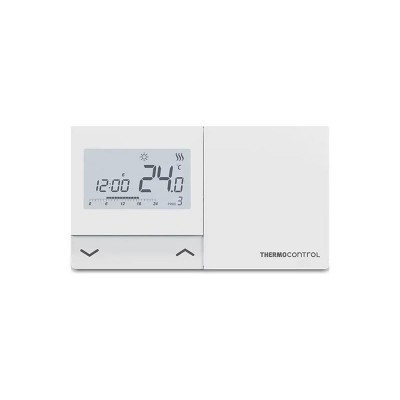

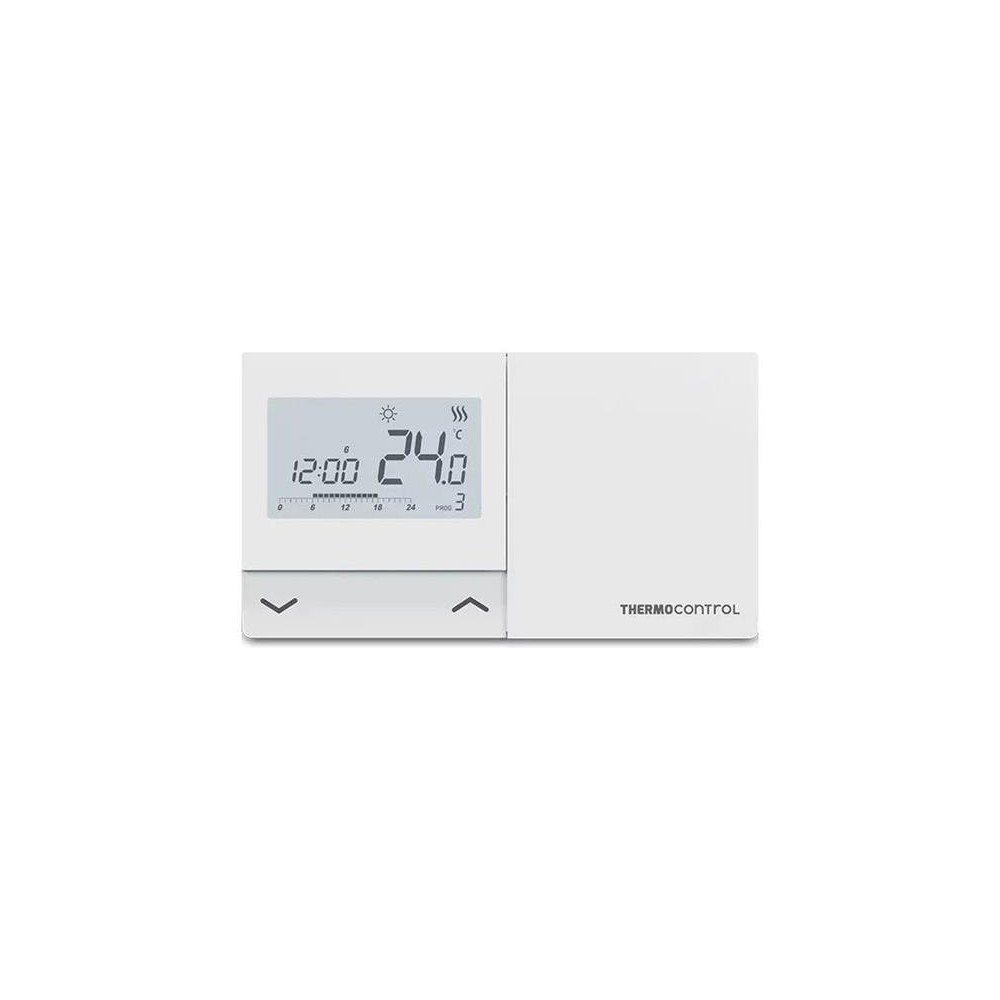

Thermostat THERMOCONTROL TC 910

TC 910 is a programmable thermostat that is used for wired control of heating and cooling devices. Its task is to maintain comfortable conditions in the room in accordance with the schedule or constant temperature set by the user. Connects directly to the device.

- 2 types of time schedules
- limitation of maximum/minimum temperature
- HEATING / COOLING function
- option to choose hysteresis or built-in TPI algorithm
- program change of relay type – no voltage open (NO) or no voltage closed (NC)
- blocking buttons and/or advanced settings using a PIN code

Technical parameters:

- Power supply: 2 x AA alkaline batteries
- Max. load: 5 (3) A
- Output: voltage-free NO/COM relay
- Temperature control range: 5 – 35°C
- Temperature setting accuracy: 0.1°C or 0.5°C
- Control algorithm: TPI or Hysteresis (±0.25°C or ±0.5°C)
- Communication: Wired
- Dimensions [mm]: 150 x 84 x 22
