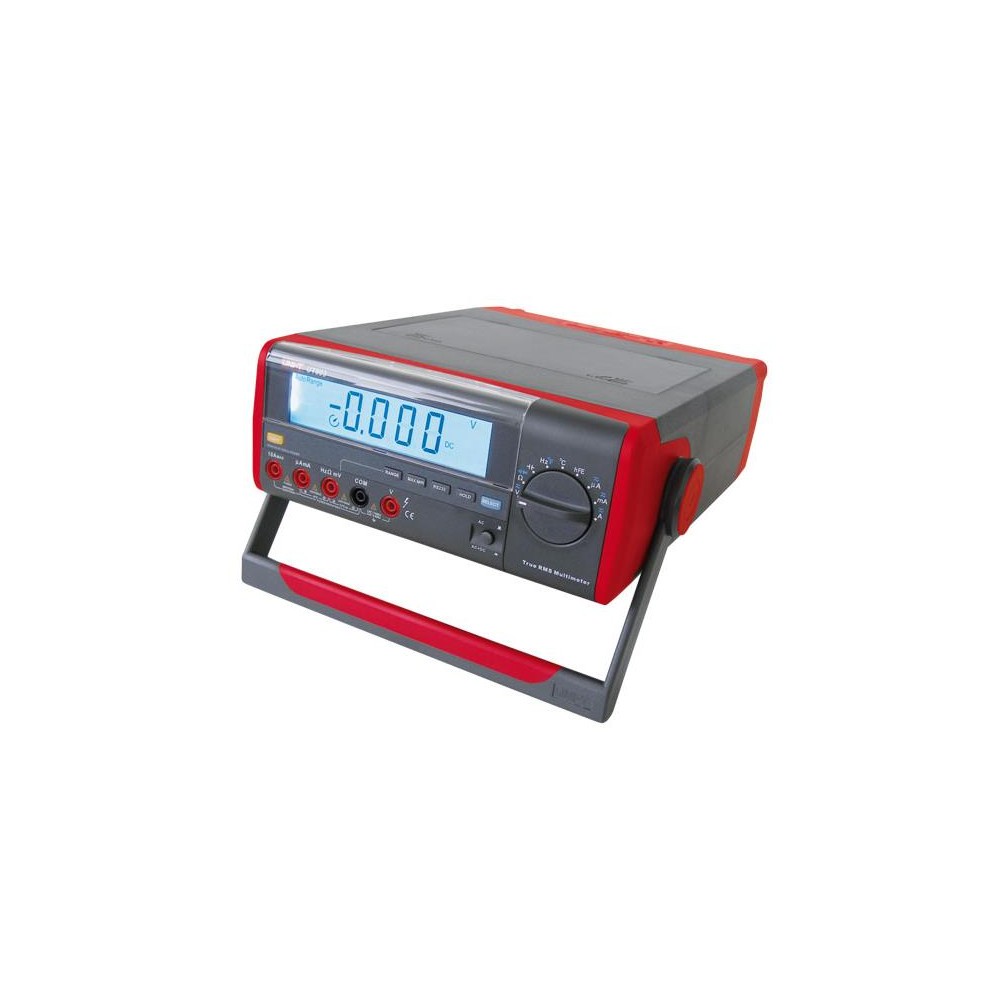

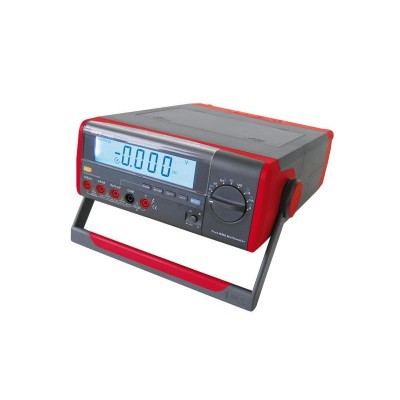

Benchtop Digital Multimeter UNI-T UT803

Benchtop Digital Multimeter UNI-T UT803
SPECIFICATION:
DC Voltage: 600mV / 6V / 60V / 600V / 1000V
- best accuracy: +/- (0.3%+2)
AC Voltage: 600mV / 6V / 60V / 600V / 1000V
- best accuracy: +/- (0.6%+5)
DC Current: 600µA / 6000µA / 60mA / 600mA / 10A
- best accuracy: +/- (0.5%+3)
AC Current: 600µA / 6000µA / 60mA / 600mA / 10A
- best accuracy: +/- (1%+5)
Resistance: 600 Ohm / 6 kOhm / 60 kOhm / 600 kOhm / 6 MOhm / 60 MOhm
- best accuracy: +/- (0.5%+2)
Capacitance: 6nF / 60nF / 600nF / 6µF / 60µF / 600µF / 6mF
- best accuracy: +/- (2%+5)
Temperature: -40 / +1000°C, -40 / +1832°F
- best accuracy: +/- 1%+3 (°C), +/- 1.5%+5 (°F)
Frequency: 6kHz / 60kHz / 600kHz / 6MHz / 60MHz
- best accuracy: +/- (0.1%+3)

SPECIAL FUNCTIONS:
Fused 10A range
Auto range
Voltage/Current AC+DC measurement
Frequency (AC voltage) 100kHz True RMS
Diode
Continuity buzzer
Transistor
Max/Min mode
Data hold
RS232C
USB
Full icon display
Sleep mode
Low battery display
Input impedance for DC Voltage: 10 MOhm, for DC 600mV: 3 GOhm
Display backlight
Max. display 5999 (28 x 128mm)

GENERAL CHARACTERISTICS:
Power: 220V AC / 50Hz or 6x 1.5V Bat. (R20)
Product size: 105 x 240 x 310mm
Product weight: 2.4kg
