Stiprintuvas SHOW PA-20M, 20W/4Ω, MP3 grotuvas
43,53 €
Su PVM
4 Vnt.
TP-05510459-EU
Saugus Atsiskaitymas
El. Bankininkystė, Grynais arba Visa - Mastercard
Nemokamas Pristatymas
Nemokamas pristatymas užsakymams nuo 79€.
Prekių Grąžinimas
Suteikiame 14 dienų pinigų grąžinio garantiją

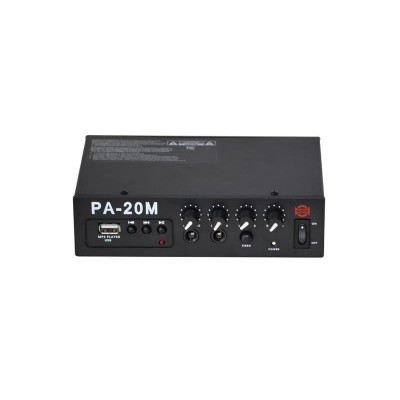

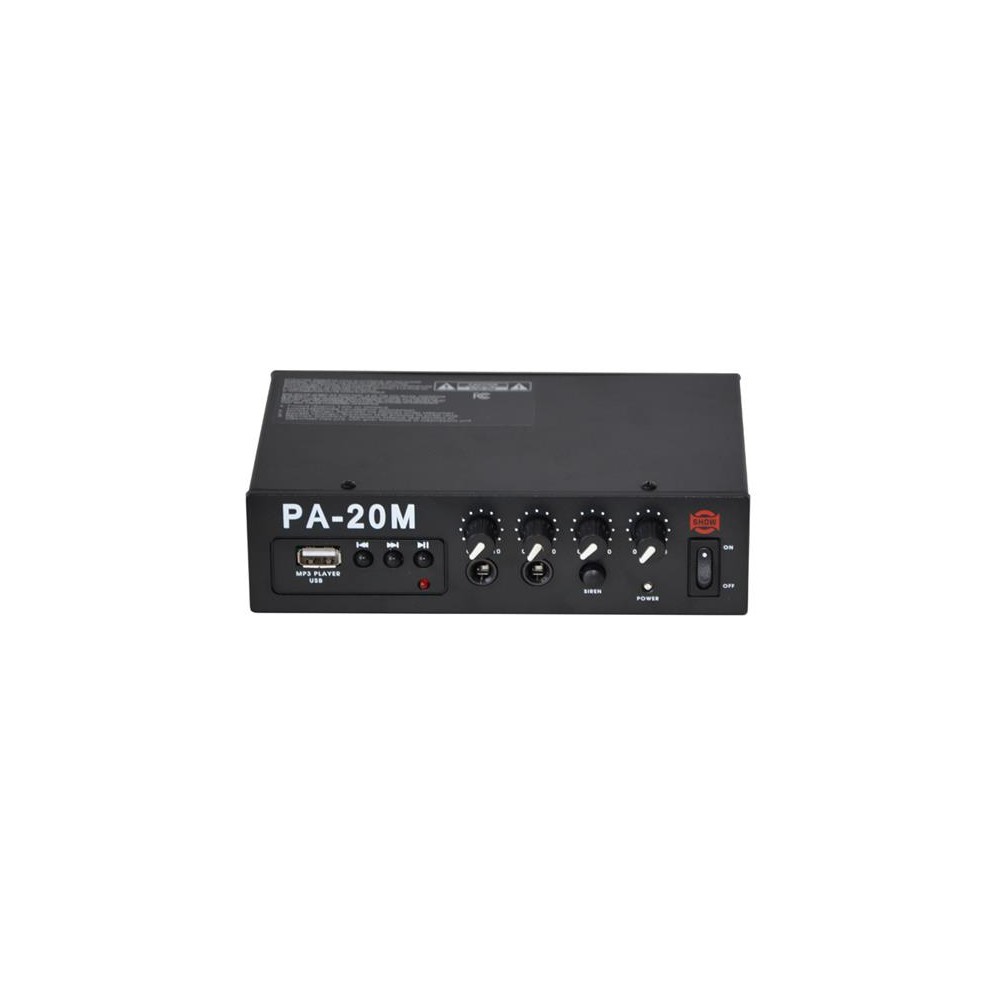

Amplifier SHOW PA-20M
The PA-20M is very compact amplifier specifically designed for fixed or mobile applications. Their small size and light weight make easy their integration in little space. The 12V DC operation perfectly fits for portable use or for installations where direct AC power supply is not available. They are an ideal solution for zoning, information points, ticketing counters and vehicles using rooftop speaker system. Both amplifiers feature a MP3 player with a UBS port, plus a siren triggered with a push button from the front panel. 2 Mic inputs are available with TRS 6.35mm jacks, plus 1 Aux stereo input on the rear panel with RCA connectors. All volume controls are on the front panel and it includes a simple EQ setting. On the rear panel there is also a DC connector ø5.5 / ø1.5mm for connecting the input supply voltage 12V to 15V/DC and terminals for connecting a load with an impedance of 4Ω. The amplifier includes a switched power supply 230V AC / 15V DC / 2A.
Product parameters :
- small size and weight
- supply voltage 12V / 2A DC
- class D activity, high efficiency, low heating
- mounting using the enclosed screws on the wall
- 2 microphone inputs and line AUX
- built-in siren triggered by a button
- built-in MP3 player with USB input
- possibility to connect a 4Ω load
Technical parameters :
- supply voltage: DC 12 to 15V
- external power supply: 230V AC / 15V DC / 2000mA.
- maximum current consumption: 2A
- rated output power: 20 W
- maximum rated power: 30 W
- rated output impedance: 4Ω
- frequency range: 100Hz to 18kHz (± 3dB)
- signal to noise ratio S/N: >70dB
- input sensitivity MIC 1 + MIC 2: -30dBu (1 kHz)
- AUX input sensitivity: -6dBu (1 kHz)
- THD distortion (1W): 0.1%
- output isolating nf transformer
- Built-in MP3 player with USB input
- dimensions (W x D x H): 168 x 105 x 44 mm
- weight PA-20M: Net 500g, Gross 880g
Package contents :
- PA-20M amplifier
- power supply 230V AC / 15V DC / 2A.
- two-pole terminal block for connecting speakers
- screws for fixing the amplifier to the wall
- Czech and English instructions for use
