Purvo gaudyklė su magnetu CALEFFI DIRTMAG 1"

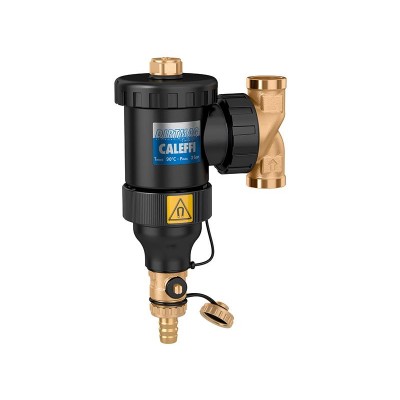

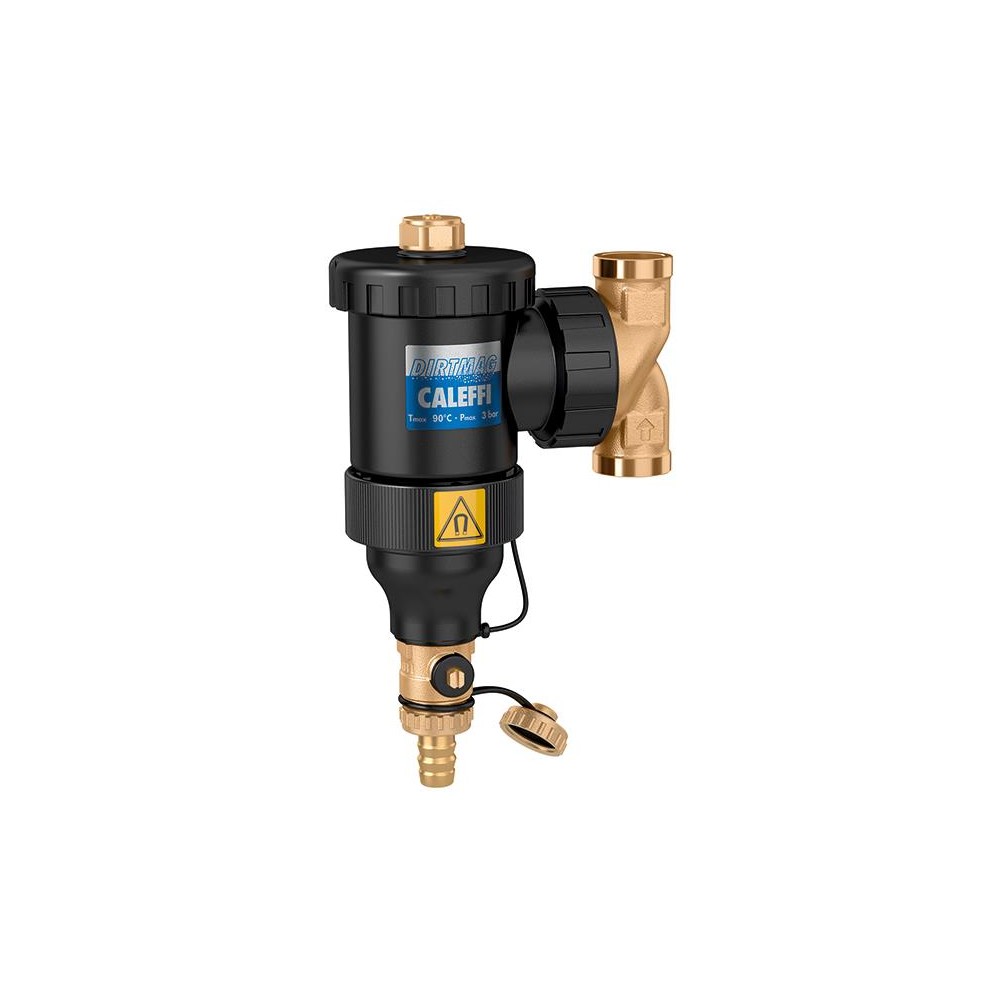

Caleffi DIRTMAG 1"dirt separator with magnetic ring

The dirt separator separates impurities, consisting mainly of sand and rust particles, which circulate in closed-circuit systems, with very small pressure losses. Dirt is collected in a large sludge chamber, which requires a low frequency of cleaning and from which it can be removed even during system operation. DIRTMAG series dirt separators are also equipped with a removable magnetic ring for the separation of ferrous impurities. This dirt separator, which is made of a composite material specially designed for use in air conditioners, is extremely versatile, as it can be mounted on horizontal and vertical pipes.

- dirt separator with magnetic ring
- technopolymer body
- adjustable for horizontal and vertical pipes
- drain with hose connection
- maximum operating pressure: 3 bar
- operating temperature: 0 - 90 ° C
- 1"connection
