IN-borto ekranas STU SE-165

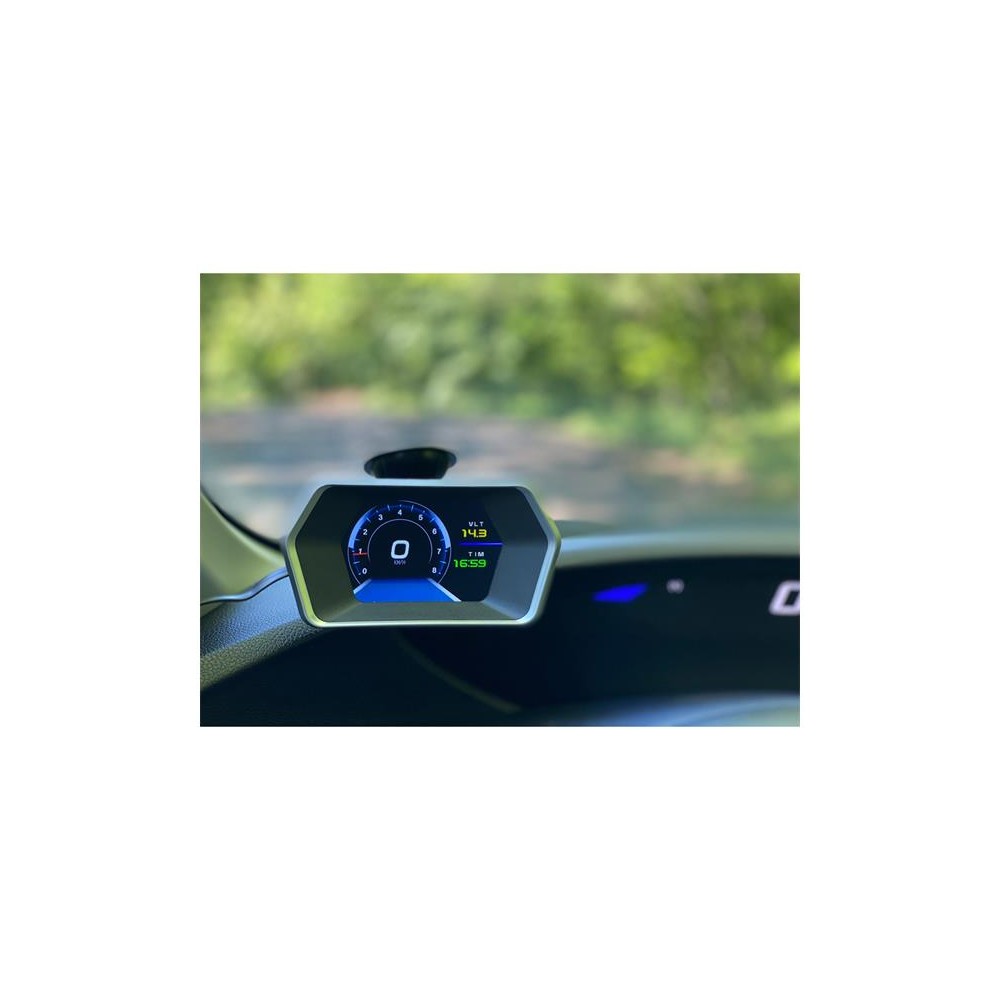

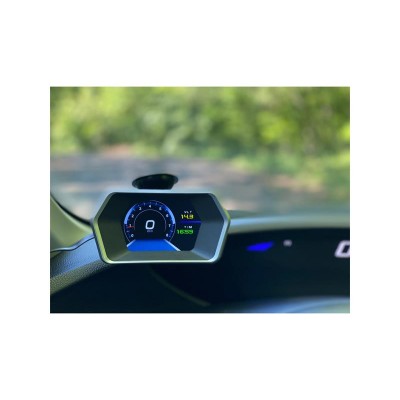

4The on-board display (computer), while driving, displays speed, engine speed and other data on a clear color LCD display.

The display only connects to the OBD diagnostic connector and reads all the data itself from the vehicle data bus.
The speed is read from the GPS module or OBD.
The on-board display can be installed either with double-sided cardboard on the dashboard or with a suction cup holder (included in the package) on the window.

- automatic adaptation of the car model, the information is read from the on-board computer via the OBD II or EUOBD connector
- LCD display, color with high resolution
- Multi-color display makes the screen more readable
- the display shows: speed, engine speed, water temperature, battery voltage, fuel consumption (current / 100 km), mileage measurement, turbo pressure, driving time, engine error codes
- Warning of low battery voltage, high motor speed / speed, high motor temperature
- switching between kilometer and mile modes and Celsius / Fahrenheit temperature levels
- diagnostics and deletion of motor error codes
- measurement of vehicle acceleration and deceleration during braking
- automatic switching on and off when starting and stopping the engine - effective protection for the car battery. With this function, the manual switch mode is retained
- automatic brightness adjustment mode for glare-free control

Technical parameters:

- supply voltage: 12 V (9-18 V)
- power consumption at rest less than 3 mA
- Compatibility with all vehicles with OBD2 and EUOBD
- units: km / mile, for speed accuracy it is possible to read from the GPS module
- dimensions: 125 x 68 x 34 mm

Note: Due to possible incompatibilities with some vehicle models, we recommend testing with the car first and only then installing it firmly in place. Due to compatibility with most cars, not all device features may be available on some models

Recommendation: when installing in the vehicle for the first time, we recommend resetting the on-board computer to the factory settings so that the data is read correctly, this recommendation also applies when installing in another vehicle.
