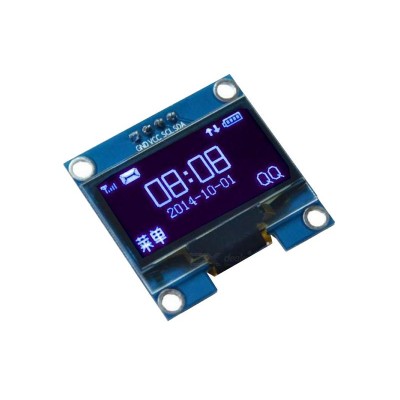

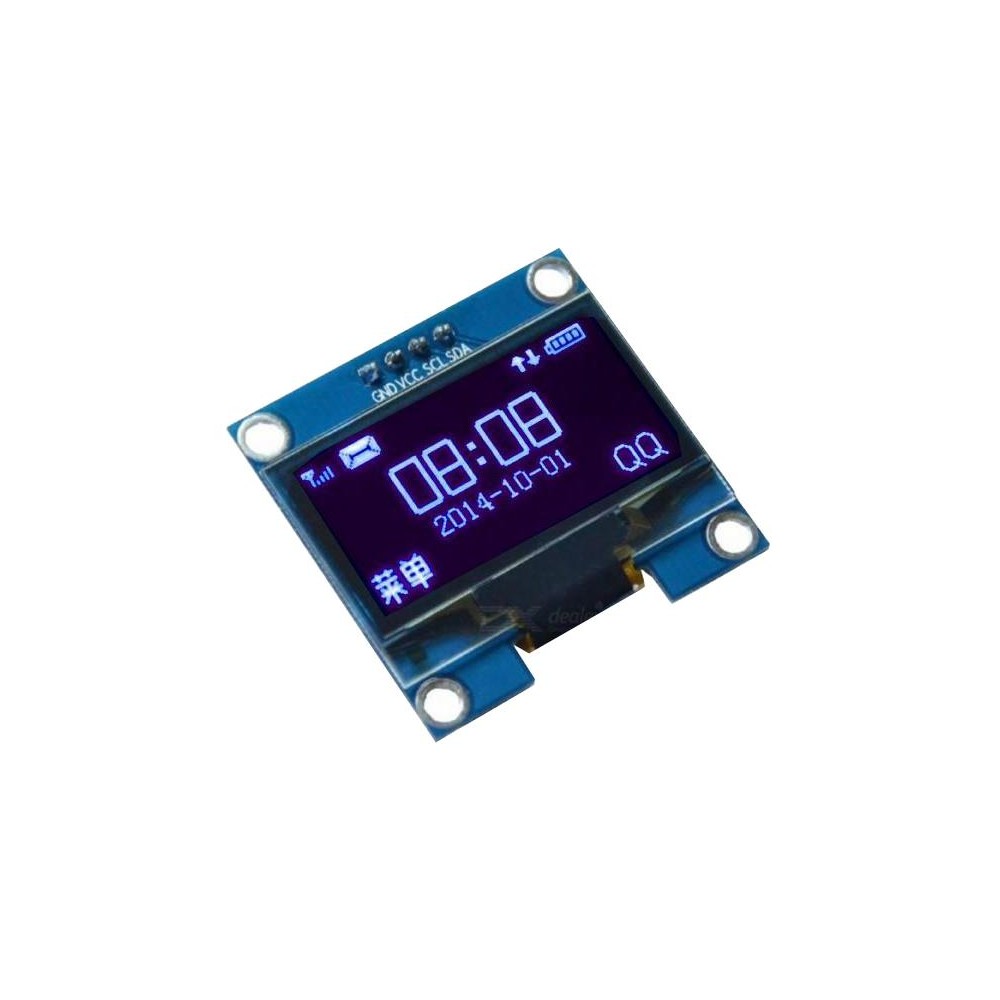

OLED ekranas 0,96", 128x64 ženklai, IIC / I2C, 4-pin, mėlynos spalvos

OLED display 0.96 "with blue characters and I2C bus. Pins GND, VCC, SCL, SDA.


Technical parameters:

- IIC I2C bus
- diagonal: 0.96 "
- resolution: 128 × 64 pix
- blue OLED dots
- power consumption: 40 mW
- power supply: 3.3 - 5 V DC
- operating temperature: -30 to +80 ° C
- module dimensions: 27 × 27 × 4,1mm
- driver: SSD1306

The product is not a stand-alone unit, it requires professional installation.
