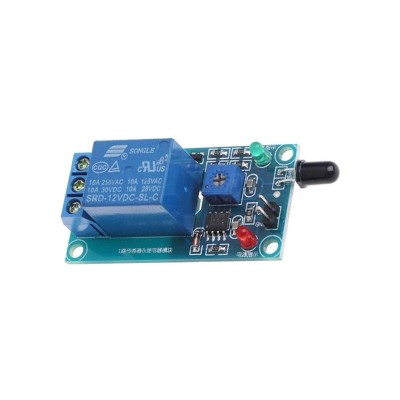

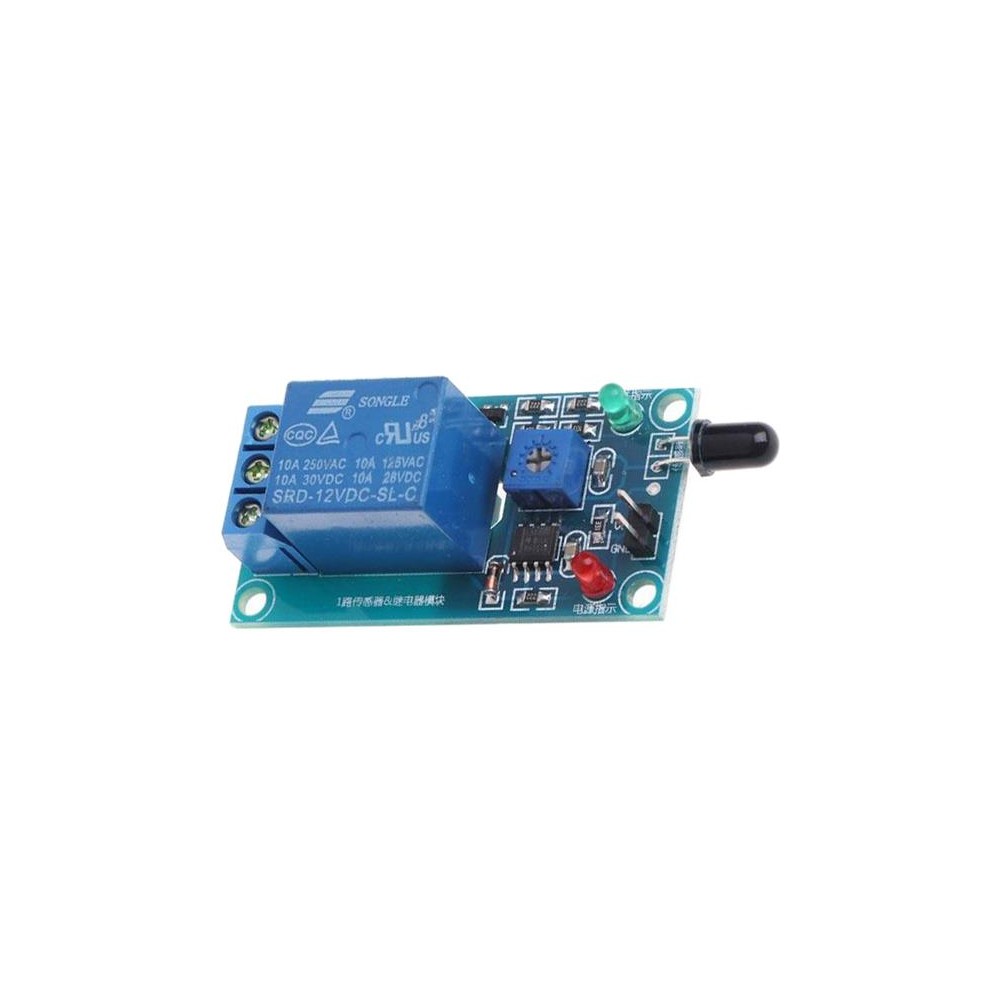

Liepsnos detektorius, FC-13 modulis su reliniu išėjimu

The flame detector module detects the presence of fire. It works on the principle of detecting infrared radiation, which emits fire. Detection angle 60 °, threshold sensitivity adjustable by trimmer. Output to relay changeover contact.


Technical parameters:

- power supply: 12V DC
- consumption: 150mA
- wavelength detection: 760 - 1100nm
- detection angle: 60 °
- indication of standby and active state in case of alarm
- output: relay, changeover contact 250VAC / 10A
- dimensions: 50 × 26 × 19mm

The product is not a self-functional unit, it requires professional assembly.
