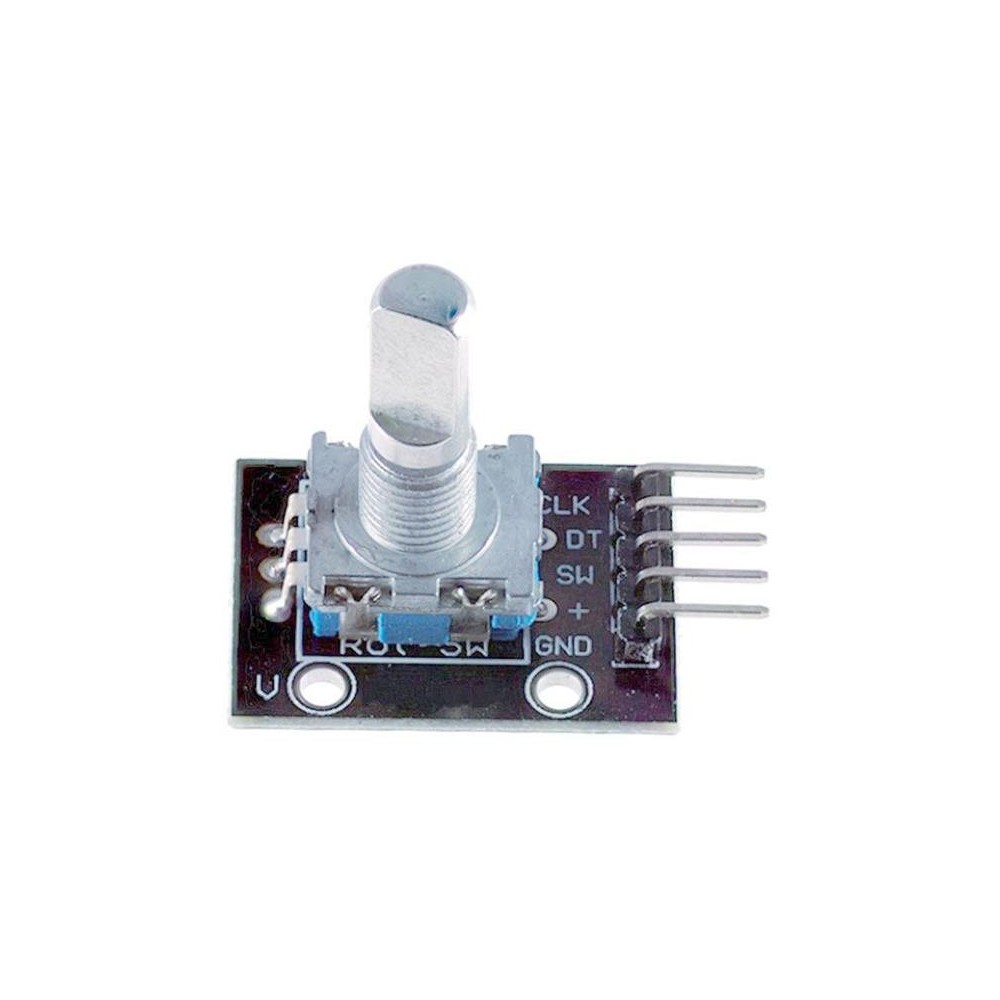

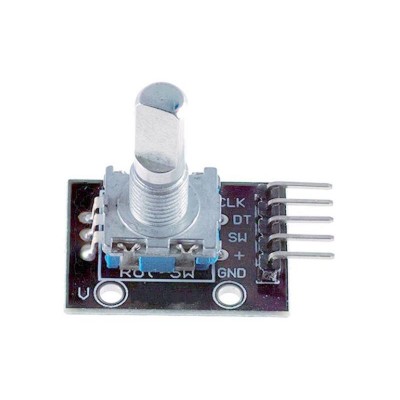

Sukamasis daviklis su mygtuku KX-040 - skirtas Arduino

Non-stop potentiometer with pushbutton and two phase outputs for determining the direction of rotation.


Technical parameters:

- power supply: 5V
- speed: unlimited
- number of pulses per revolution: 20
- pins: CLK, DT, SW, VCC, GND
- button (push in the direction of the axis)
- service life: 30,000 cycles
- axis diameter: 6 mm
- axis length: 20 mm
- thread length: 6 mm

The product is not a stand-alone unit, it requires professional installation.
