Suvirinimo inverteris FIELDMANN FDIS 20140-E

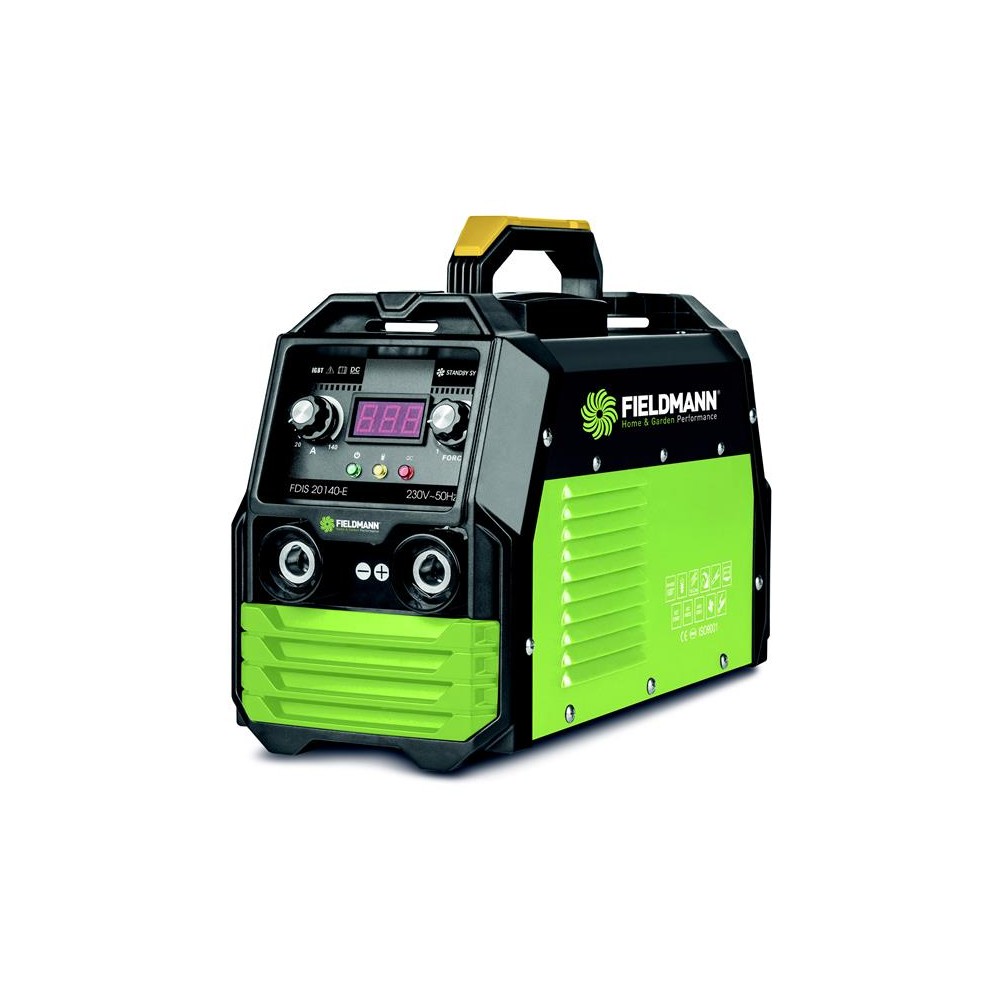

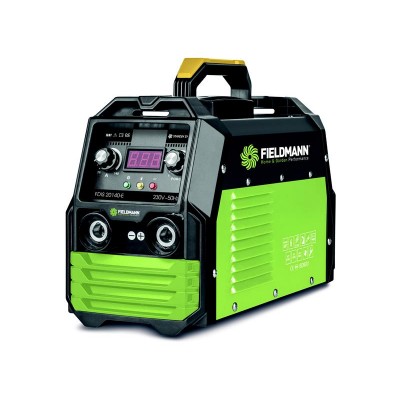

The invert welder from the renowned manufacturer FIELDMANN ensures all work for easy cutting and homogeneous joining of steel, stainless steel, galvanized metal and alloy. This machine is supplied including a practical welding shield, welding cable and also a grounding cable. The machine is compatible with all commonly available steel, cast iron and basic rod electrodes. The machine includes continuous regulation of welding current, where the maximum welding current is 140 A with a maximum electrode diameter of 3.2 mm.

- Compact welder with inverter technology and low weight
- Overload protection thanks to control device with control light
- Infinitely adjustable welding current 20-140 A
- The package includes a practical welding shield, welding cable for electrodes and grounding cable
- Suitable for welding diodes max. 3.2 mm
- Integrated fan

Technical parameters:

- Voltage: 230 V AC / 50 Hz
- Actual output current: 20-140 A
- Electrode diameter: 1.6 - 3.2 mm
- Input current: 28 A
- Maximum input power: 6.1 KVA
- Voltage without load VRD: 25-50
- Protection class IP21
- Efficiency: ≥ 80%
- Insulation class: F
- Welding shield included

Package contents:

- Invert welder
- Welding shield
- 1 ground cable
- 1 piece of welding cable
- brush
