Lauko antena Emme Esse 45WS5G, 5G, sidabrinė serija, 21 kanalas-48, folija, 1150 mm

Outdoor antenna Emme Esse 45WS5G, 5G, silver ser., ch.21-48, foil, 1150mm

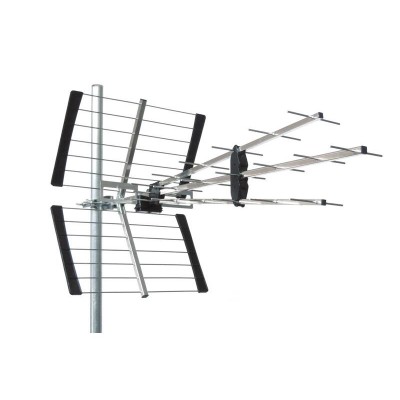

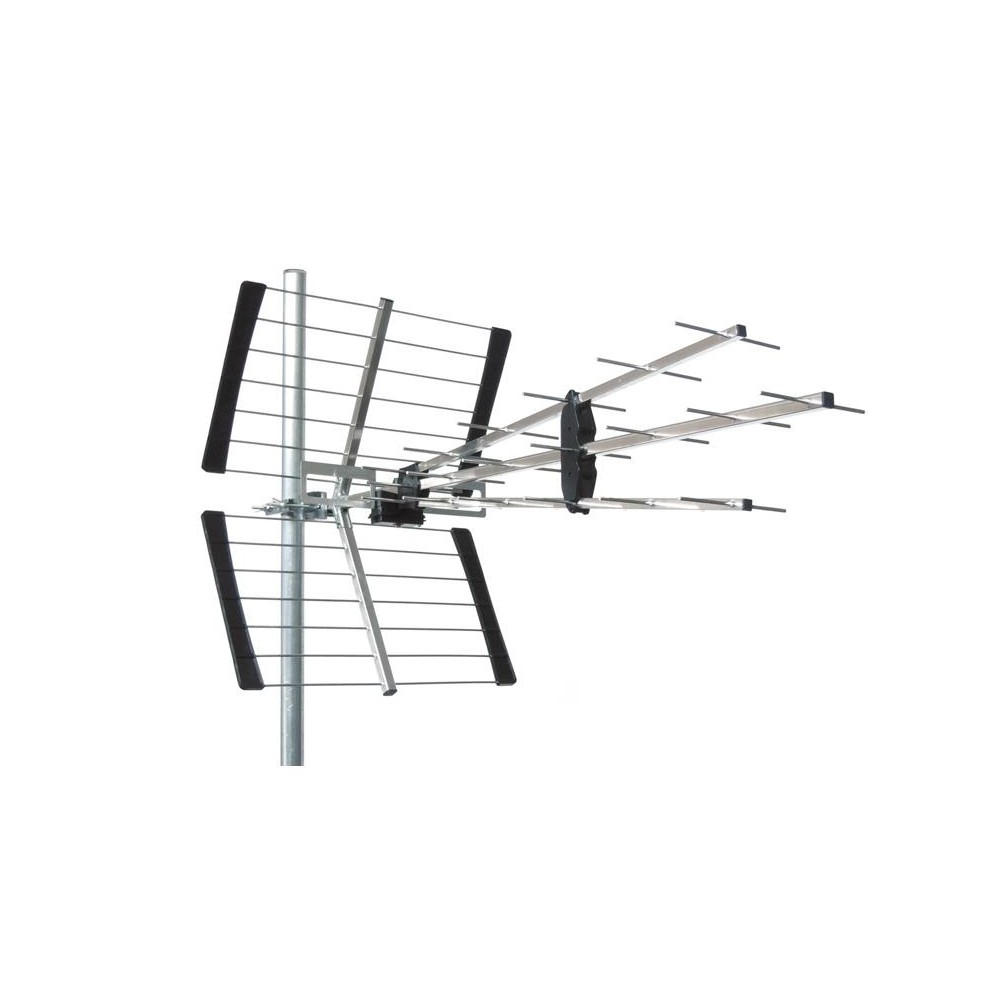

The 45WS5G antenna has three director lines on top of each other and is from the renowned Italian manufacturer Emme Esse. The antenna is calculated to receive television on channels 21 to 48, and although it does not contain any filter from discrete components, it suppresses reception above channel 48 (interfering mobile internet signals in the 5G and LTE bands). It is also suitable for remote DVB-T and DVB-T2 transmitters. The antenna is completely pre-assembled and ready for installation. The antenna is made in the Silver series in the basic surface treatment of aluminum alloy with black plastic parts.

Technical parameters :

- operating frequency : 470 - 694 MHz
- channels : 21-48
- gain : 12.5 to 18dB
- rear-to-back ratio : 30 dB
- output impedance : 75 ohm
- connection : connector F
- horizontal beam angle : 40 ° to 20 °
- number of elements : 35
- mechanical load to the mast at 120 km/h : 10,6 kg
- weight : 2.2 kg
- length : 1150mm
- transport packaging : foil
