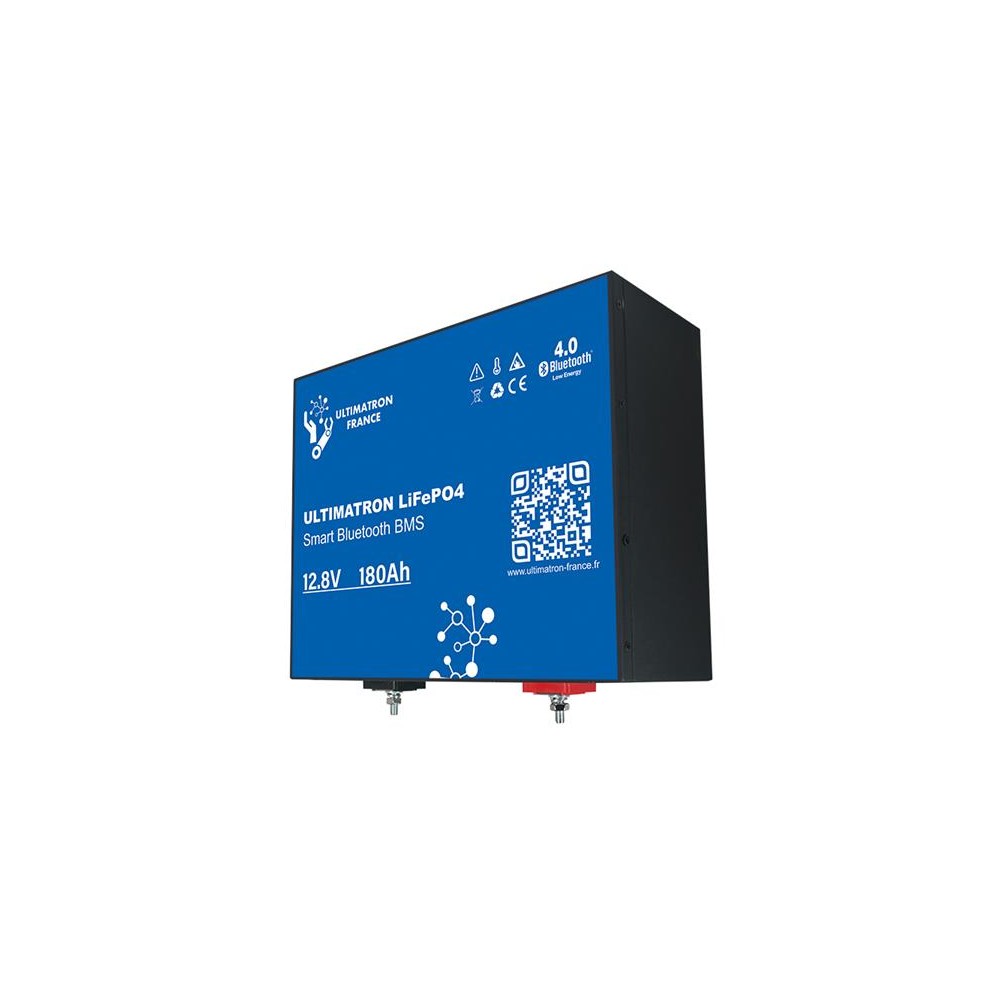

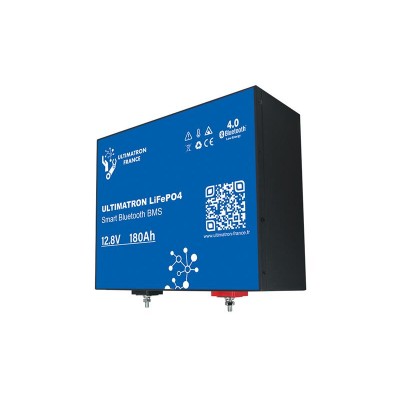

LiFePO4 12,8 V 180 Ah plokščias karavano akumuliatorius

LiFePO4 battery Ultimatron Smart BMS 12.8V 180Ah is designed especially for solar systems of motor homes and caravans. Due to its dimensions, the battery can be placed under the seat of most of these vehicles. It includes an integrated BMS battery management to control charging and provide information via Bluetooth. The ideal replacement for lead-acid batteries with many times longer life.


Technical parameters :

- nominal voltage: 12.8 V
- capacity 180 Ah
- energy: 2304 Wh
- charging voltage: 14.4-14.6 V
- load disconnection: 10 V
nominal charging current: 20 A
- peak charging current: 50 A
- max. discharge current: 450 A (5-15 ms.)
- self-discharge: 3% / month
- integrated charging automation (BMS-battery management system) - bluetooth 4.0
- charging temperature: 0 ° to 45 ° C
- discharge temperature: -20 ° to 60 ° C
- storage temperature: -5 ° to 35 ° C
- IP protection: IP65
- type of connection terminal: M8
- dimensions (LxWxH): 338 × 357 × 152 mm
- weight: 23.7 kg

The batteries can be arranged in series - max 4 batteries. We recommend batteries of the same type, capacity and batch.
