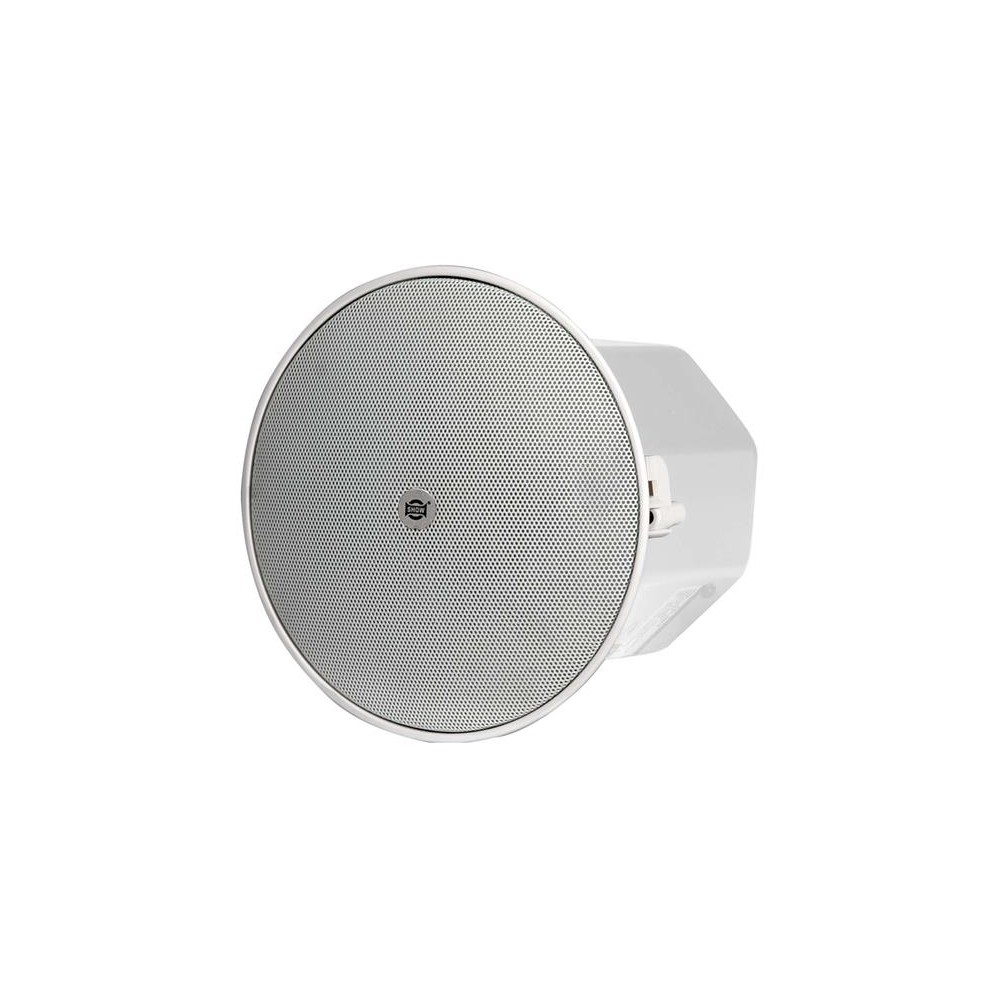

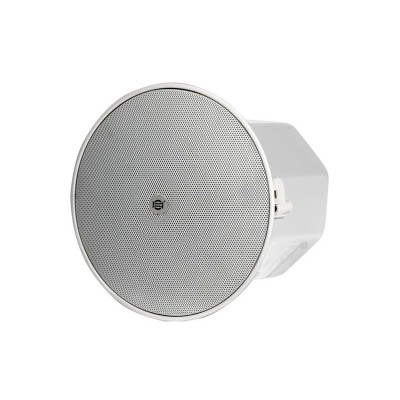

SHOW NCL-6 garsiakalbiai, 60 W, evakuacijai iš patalpų, 70 V/100 V, 1 pora

The NCL range of ceiling speakers are equipped with high-quality two-way speakers that provide exceptional sound quality even for message transmission. The stylish flat grille provides component invisibility, especially in rooms where a discreet ceiling architecture is required. The system of attaching the folding ear loops allows for easy and quick installation of the speakers. The speakers can be connected to a high-impedance distribution of 70V or 100V, and the rotary switch can be used to select the taps of the transformer and thus reduce the volume (power) of the speaker. The internal four-pin terminal block allows serial or parallel switching of speakers. Operation with an internal impedance of 16Ω is also possible. The speakers comply with the European standard EN 54-24 / 2008; Certificate No. 1438-CPR-0696 for indoor fire and evacuation radio.

The range includes two models NCL-4 and NCL-6 differing in power and diameter of the subwoofer. The NCL-6 model is for a maximum output of 60W and consists of a 6.5" (160.6 mm) conical woofer and a coaxial dome 3/4" (19 mm) tweeter.

1 pc = 1 pair of speakers
Can only be ordered in pairs.


Product parameters :

- NCL-6 speaker model for indoor radio
- dual-band system with high sound quality and 60W power
- installation in ceiling systems
- fire resistance certification for evacuation radio


Technical parameters :

- system type: ceiling two-way speaker
- for environment: indoor (type A)
- standardized: European standard EN 54-24 / 2008; Certificate No. 1438-CPR-0363
- bass audio converter: 6.5" (160.6 mm) subwoofer
- audio tweeter: 3/4" (19 mm) coaxial tweeter
- frequency range: 65 Hz ~ 20 kHz
- rated noise power: 60 W
- rated impedance (100V line): 146Ω (60W)
- rated impedance (100V line): 328Ω (30W)
- rated impedance (100V line): 656Ω (15W)
- nominal impedance (70V line): 82 Ω (60 W)
- rated impedance (70V line): 164Ω (30W)
- rated impedance (70V line): 328Ω (15W)
- rated impedance (70V line): 656Ω (7.5 W)
- nominal impedance (Bypass): 16 Ω
- sensitivity (500 Hz - 5 kHz pink noise): 91 dB (1 W, 1 m)
- sensitivity (100 Hz - 10 kHz pink pump EN54-24): 78 dB (1 W, 4 m)
- sensitivity (100 Hz - 10 kHz pink noise, according to EN54-24): 90 dB (1 W, 1 m)
- max. SPL (100 Hz - 10 kHz pink noise, according to EN54-24): 94 dB (20 W, 4 m)
- max. SPL (100 Hz - 10 kHz pink noise, according to EN54-24): 106 dB (20 W, 1 m)
- coverage angle (500 Hz): 207°
- coverage angle (1kHz): 78°
- coverage angle (2kHz): 142°
- coverage angle (4kHz): 86°
- operating temperature: -10°C to + 50°C
- connecting cable, solid conductor: 0.75 mm² (18 AWG) UL2464
- cable connection: 4-pin removable screw terminal
- surface treatment of the fire barrier: cold-rolled cast iron and ABS + PC, white lacquered
- speaker grille finish: steel mesh grille, white lacquered
- weight (including holder and dome): 3,33 kg
- product dimensions: diameter 252 x height 224mm (total depth)
- holder: surface-treated C-shaped holder and tile supports, white
- screws and cable: stainless steel


Package contents :

- ceiling evacuation speaker NCL-6
- Czech and English instructions for use


Manufacturer: SEIKAKU Group - SHOW
