Skaitmeninis termostatas ir drėgmės reguliatorius HX-M452, nuo -50 iki 110 °C

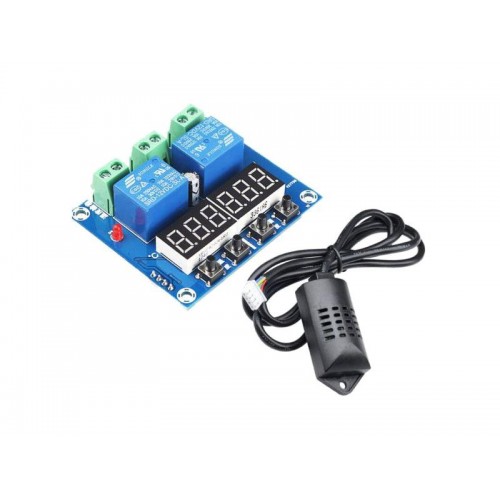

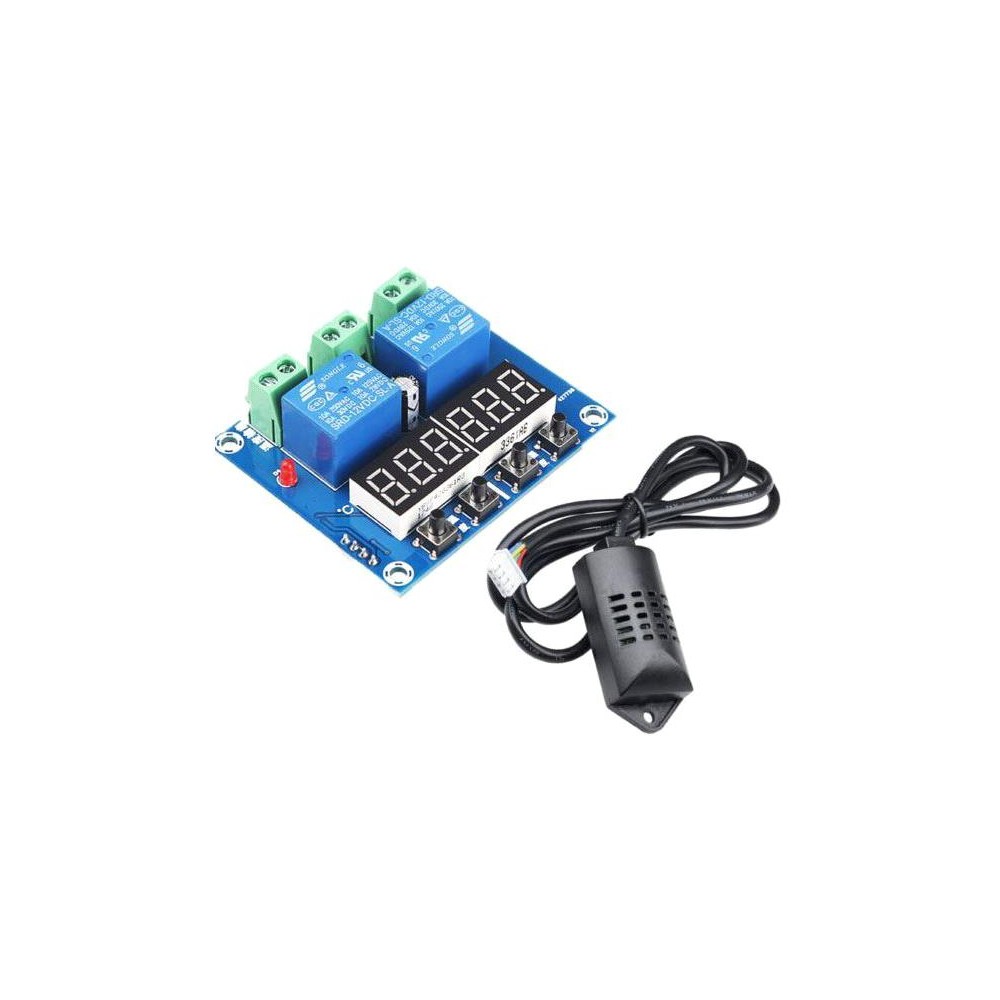

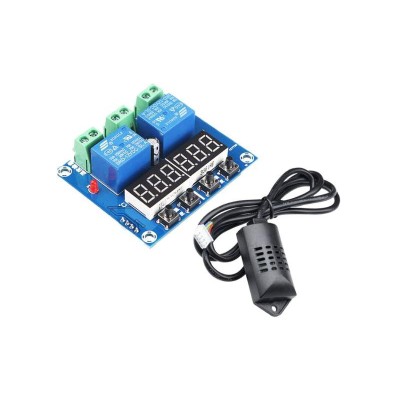

Digital thermostat and humidistat module 2 in 1.


Technical parameters:

- working voltage: DC12V
- temperature measurement range: -40 ° C to 120 ° C
- humidity measuring range: 0-100% RH
- temperature measurement accuracy: 0.1 ° C
- resolution for humidity measurement: 0.1% RH
- T + H sensor: SHT20
- output: 2 × relays, contacts 250VAC / 10A
- dimensions: 65 × 55 × 28mm

Thermostat settings:
The temperature can be set for both heating and cooling mode. If T1 T2, then cooling mode is active.

Heating mode:

- Press for 3sec. + button in the thermostat section
- After the temperature display flashes, use the + or - buttons to set the lower limit for starting heating or cooling (temperature T1).
- Press for 3sec. button - in the thermostat section
- after the temperature display flashes, set the upper limit to stop heating or cooling (temperature T2) with the + or - buttons.

Humidity setting:

Like the temperature, the humidity can be set for both humidification and drying modes. If H1 H2, then the drying mode is active.
The humidity range setting is identical to the temperature, the setting buttons are in the humidistat section.

The product is not a stand-alone unit, it requires professional installation.
