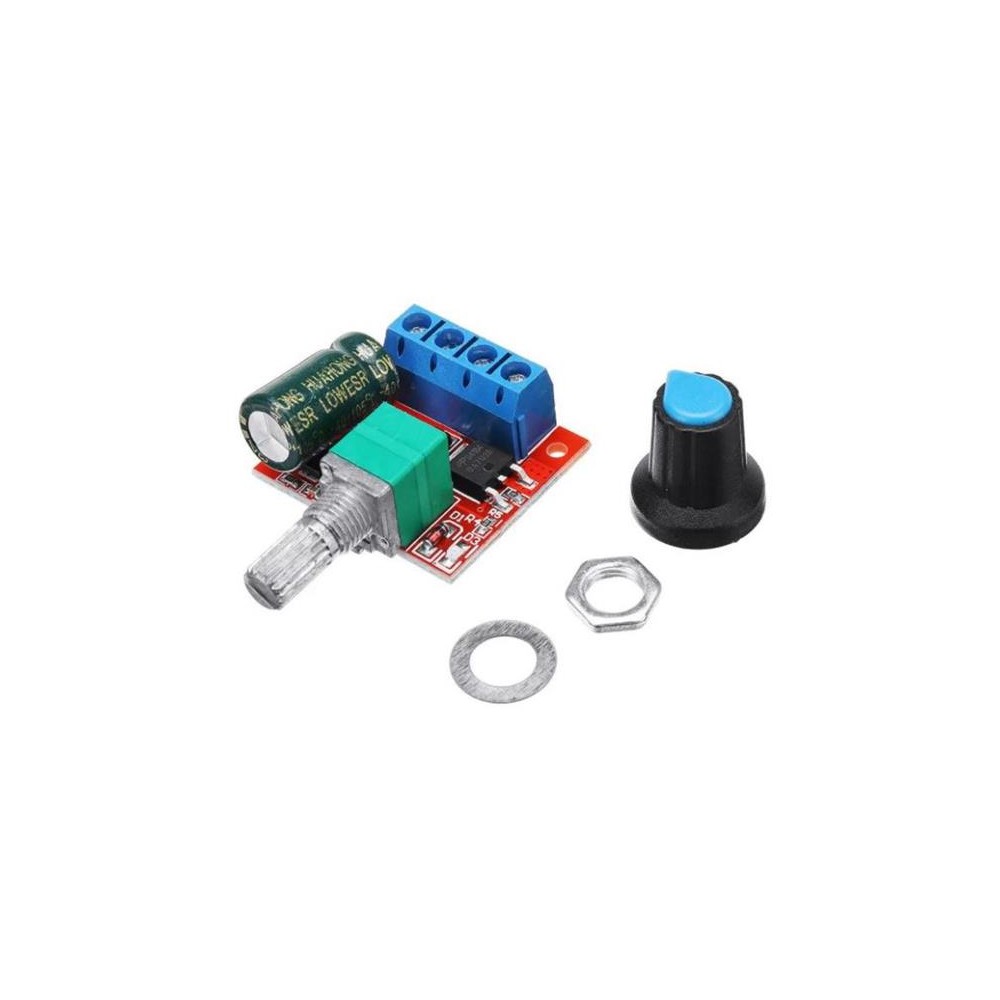

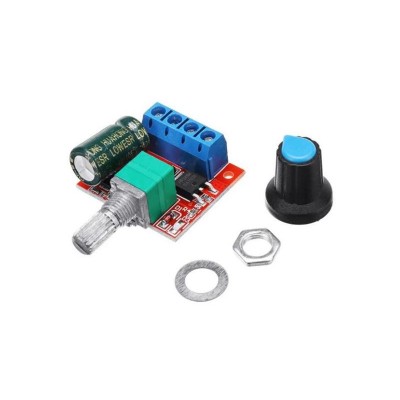

PWM greičio reguliatorius nuolatinės srovės (DC) varikliams 5-35 V iki 5 A

Pulse PWM controller for DC motors or LED lights and strips. No feedback to check the set speed.


Technical parameters:

- Supply voltage: DC 5-35V
- Max. output power 90W
- Max. peak output current: 5A
- Max. continuous output current 2.6A
- Quiescent current 7uA
- PWM frequency 20kHz
- Control range 1-100% by changing the pulse width
- Dimensions 30 × 24 × 14mm / 13g

Involvement:

M- Engine -
M + Motor +
V + Power supply +
V- Power supply -

When connected, it does not matter how the DC motor is connected to the + and - terminals. In the event of a reverse connection, the motor will start to rotate to the other side. The speed of the connected motor is regulated by a potentiometer.

The product is not a stand-alone unit, it requires professional installation.
