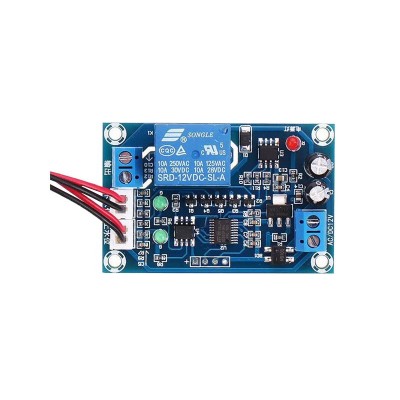

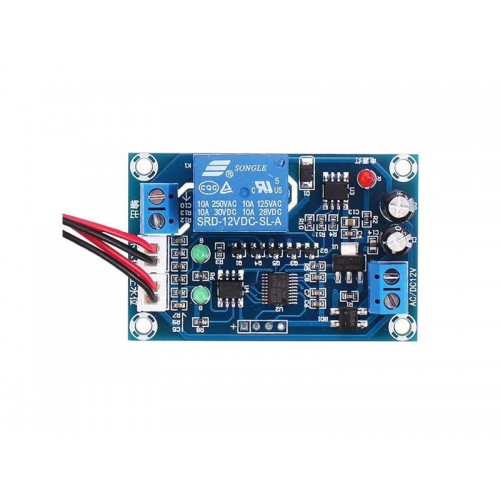

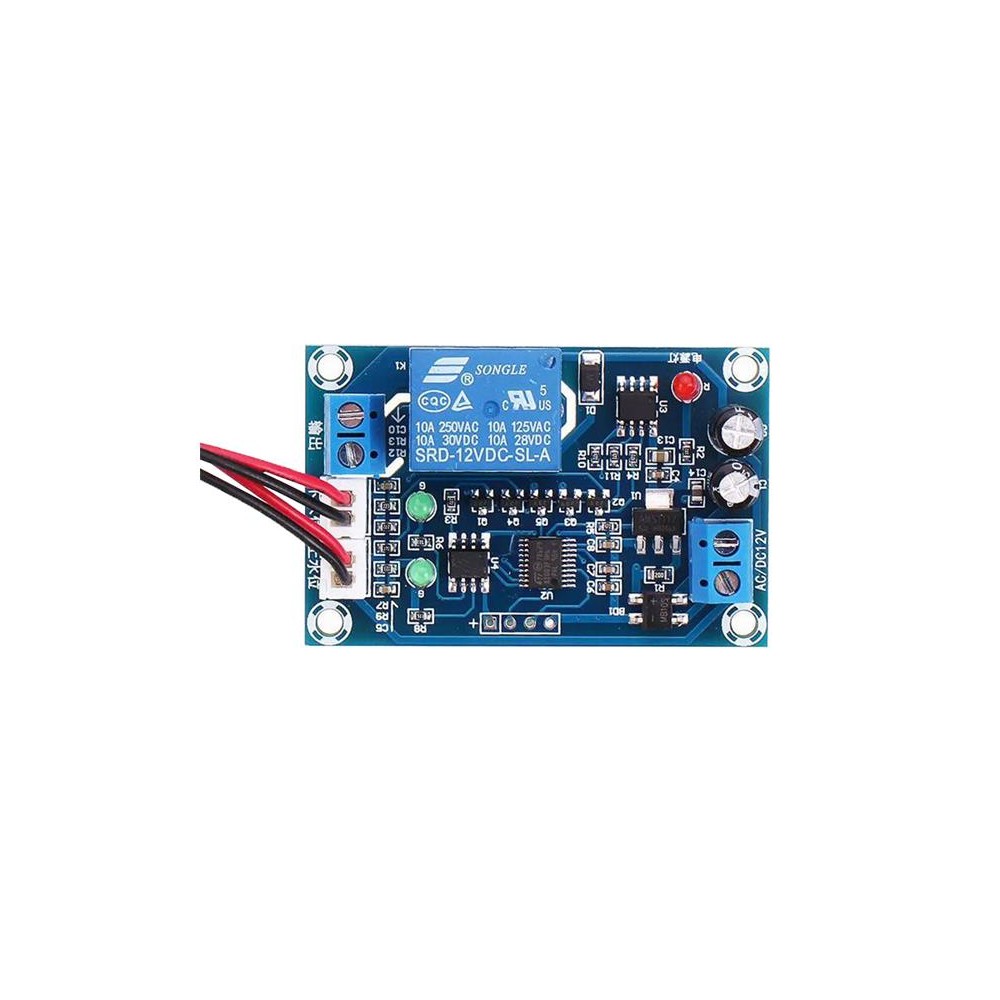

Skysčio lygio jutiklis - modulis XH-M203, maitinimo šaltinis 12 V

The water level monitor is used to ensure the specified water level in tanks, reservoirs, expansion systems, collection tanks. The monitor works on the principle of changing the conductivity of the electrodes when they are flooded with water. By placing the electrodes in the tank, the required minimum and maximum level is selected. A float water level sensor can also be used as a sensor.


Technical parameters:

- supply voltage: 12 V DC
- current consumption: <= 50 mA
- output power: 230 V AC / 10 A or 30 V DC / 10 A
- sensors: float water level sensor
- power indicator: red LED
- upper and lower level indicator: green LED
- dimensions: 60 × 39 × 19 mm
- weight: 32 g

The product is not a stand-alone unit, it requires professional installation.
