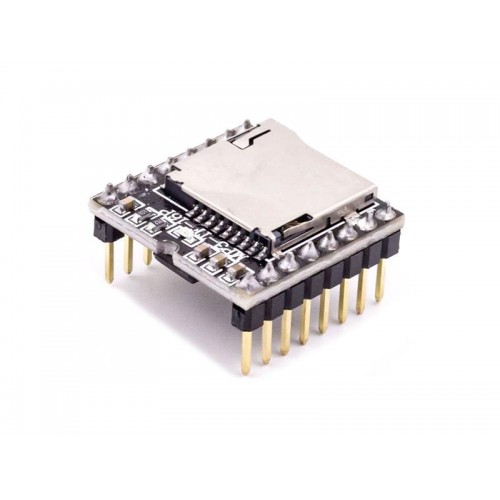

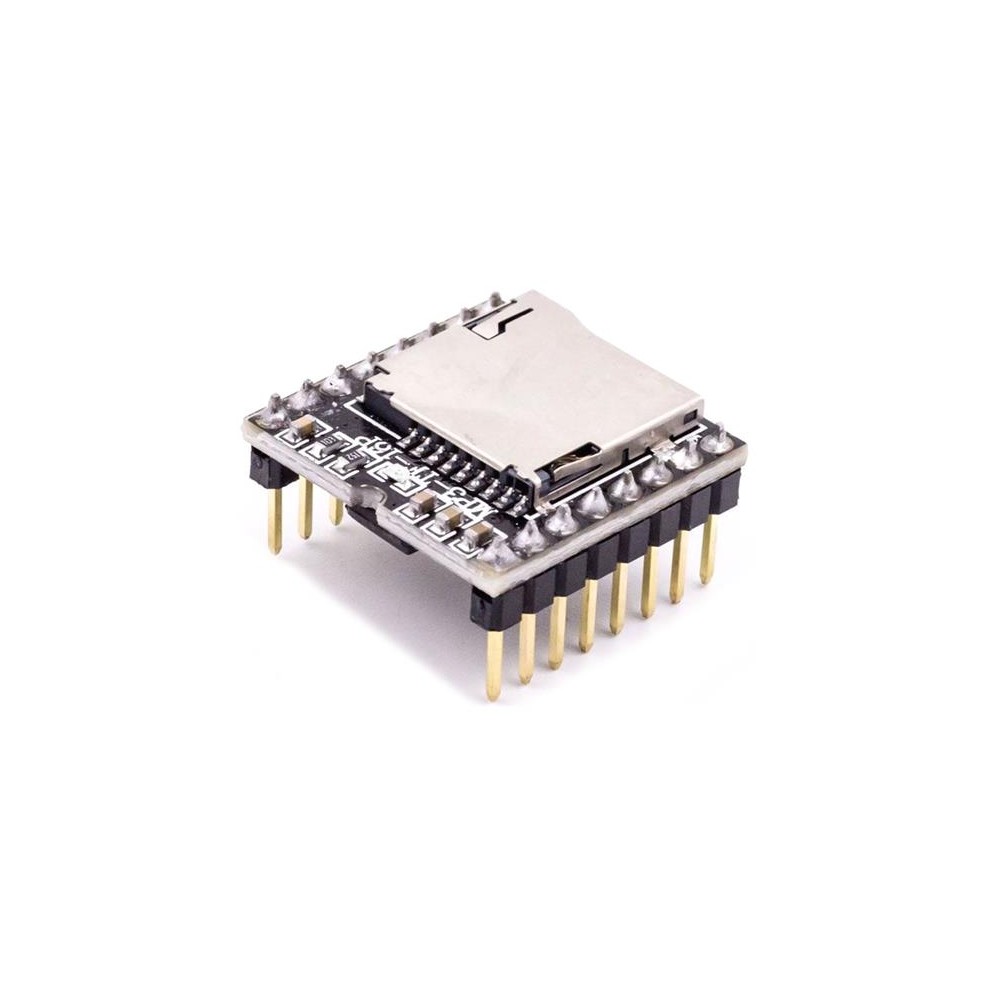

MP3 grotuvas mini MP3-TF-16P Arduino

MP3 player for Arduino, which can also work in autonomous mode. Including nf amplifier 3W. Micro SD card reader (max. 32GB).


Product parameters:

- GD3200B chip
- 3.2-5V power supply
- integrated 3W amplifier
- support for MP3, WAW, WMA formats
- microSD card support: FAT16, FAT32
- data transfer via serial port (UART) or via buttons
- supported sampling frequencies (kHz): 8 / 11,025 / 12/16 / 22,05 / 24/32 / 44,1 / 48
- 24-bit DAC output, dynamic range 90dB, SNR 85dB support
- loads up to 100 directories, each of which can contain up to 255 songs
- volume in 30 degrees, 6 levels of equalizer
- dimensions 21 × 21mm

The product is not a stand-alone unit, it requires professional installation.
