Universalus nuotolinio valdymo pultas su imtuvu HX1838, skirtas Arduino

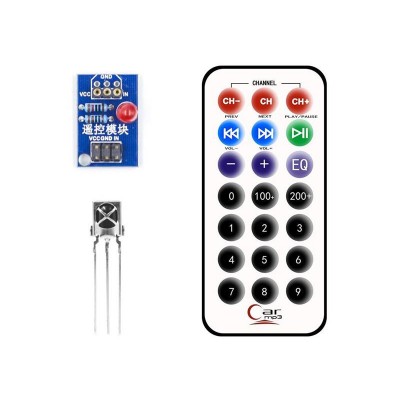

Power supply CR2025 IR remote control module with receiver with HX1838. Battery for CR2025 controller (not supplied).


Technical parameters:

- power supply: 2.7-5.5 V
- current: 0.35mA (max.0.6mA)
- frequency: 38 kHz
- reception at a distance: up to 8 m
- temperature range: –20 ° C ~ + 65 ° C

Connector connection:
- The pin marked "IN" is a signal to the Arduino pin
- VCC is for power connection
- GND is the ground


The product is not a stand-alone unit, it requires professional installation.
