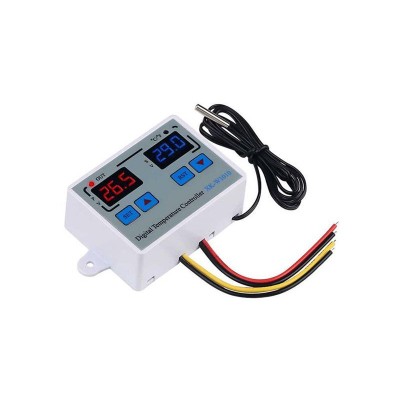

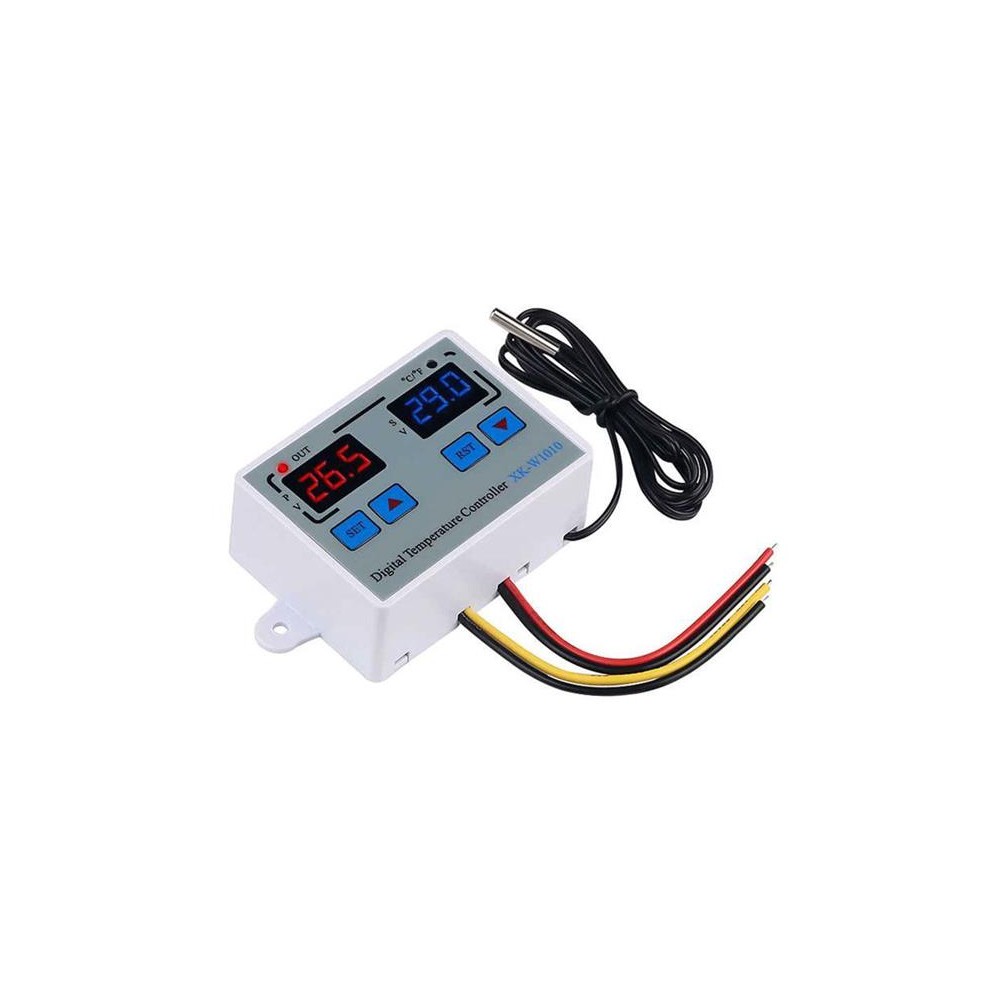

Skaitmeninis termostatas XK-W1010, nuo -50 iki + 120 °C, maitinimo šaltinis 230 V

Single circuit thermostat with double display. The left display shows the real temperature, the right display the set temperature.


Technical parameters:

- operating voltage: 230 V AC
- output: in active state 230 V AC, via switching contact of relay 250VAC / 5A
- temperature measurement range: –50 - 120 ° C
- resolution: 0.1 ° C (above 100 ° C 1 ° C), accuracy 0.5 ° C in the range -10 ° -100 ° C
- measurement frequency: 2 × / sec
- measuring sensor: 1 × NTC (10kohm 0.5%), waterproof
- dimensions: 75 × 55 × 30 mm


Instructions for use:
- normal mode: The red LED display on the left shows the temperature in real time, the blue LED panel on the right shows the set temperature.
- setting mode: The red LED display on the left shows the setting mode, the blue LED display on the right shows the contents of the setting.

To set the start or end temperature: press the "SET" button once and the screen flashes. Press the "Up" and "Down" buttons to set the temperature.

Note:
- the output relay has a voltage of 230V applied to the switching contact, so that its output is also 230V in its active state.
- the red and yellow wires are connected, the black wires are connected via relays.

The product is not a stand-alone unit, it requires professional installation.
