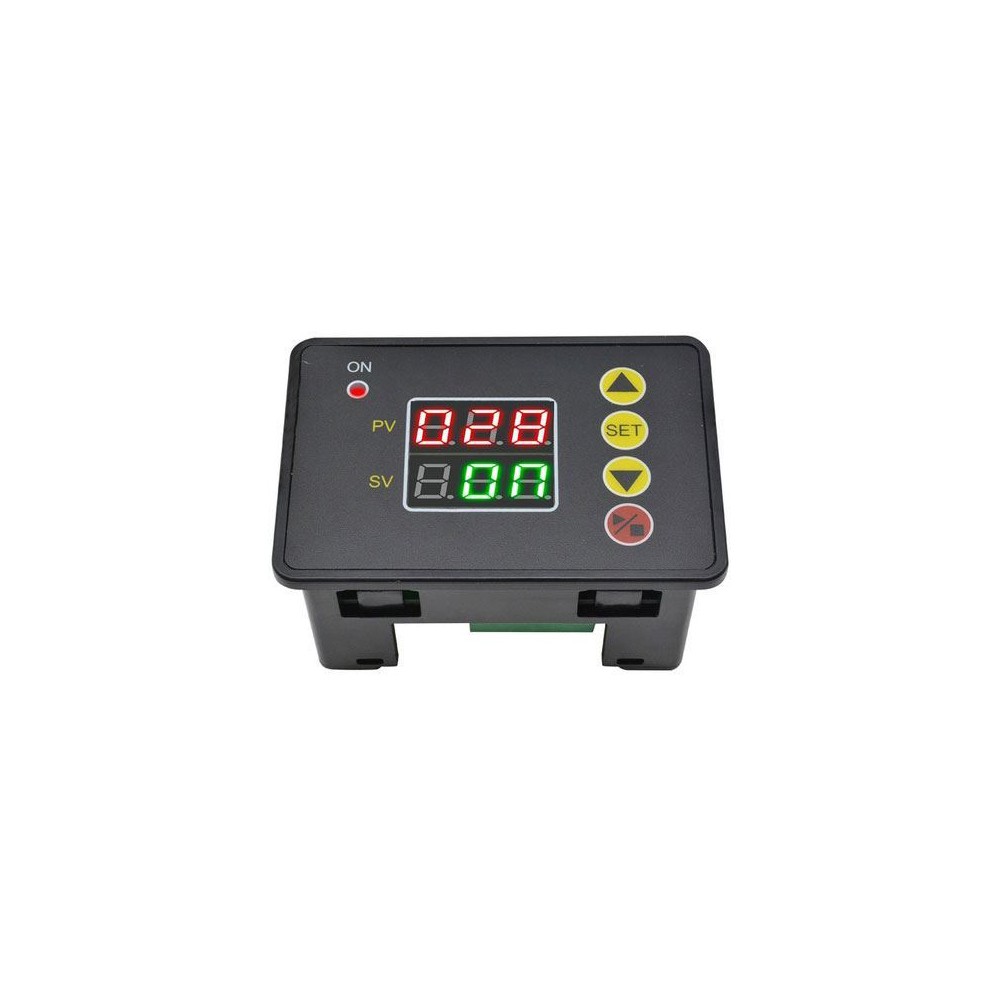

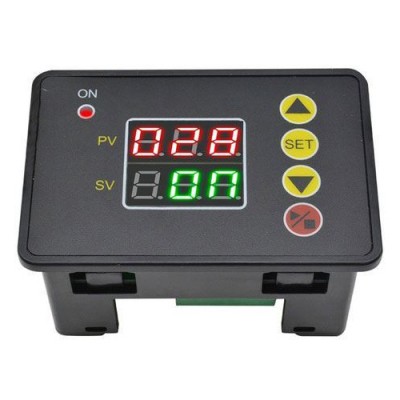

Laikmatis T2310 12V

Timer T2310 12V. Driver type: intelligent microcomputer module with timer, delayed relay module.


Technical parameters:

- operating voltage: DC 12V
- control circuit voltage: DC 12V
- relay load power: 240 W ,, 10 A (max.)
- recommended carrying capacity - relay type: normally open relay
- power consumption: <1W
- relay life: 100,000 times
- timing error: ± 3 s (in 24 hours)
- weight: 65 g
- size: 67 mm × 45 mm × 34 mm
- fixed design: built-in hole 63 mm × 42 mm

Product benefits:

- independent crystal oscillator, more accurate timing
- convenient direct output connection
- add a buzzer and an audible alarm
- if you want to stop urgently, add a pause button

The product is not a stand-alone unit, it requires professional installation.
