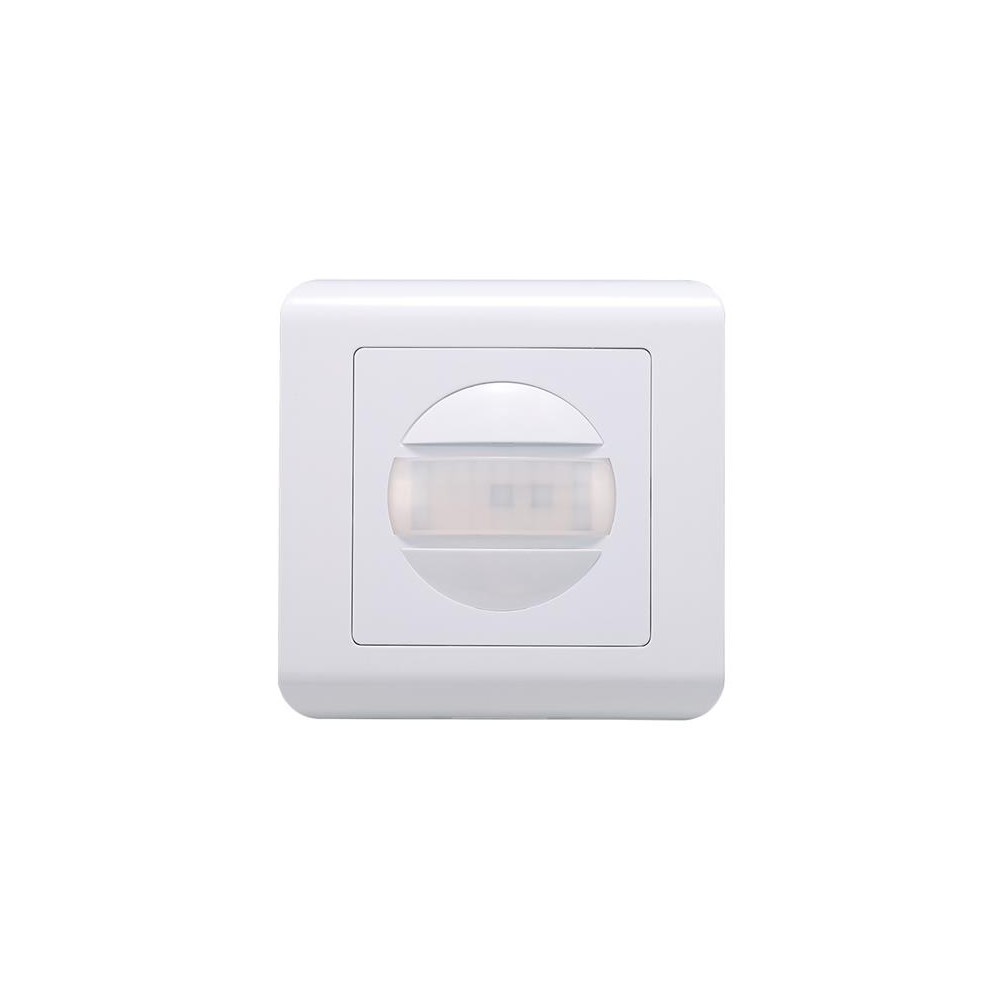

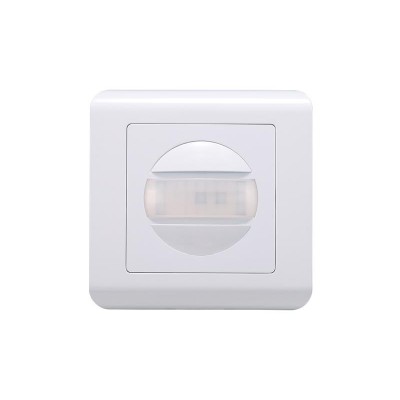

PIR jutiklis GETI GS1105

Motion switch from the new GETI GS1105 range of motion sensors.
The sensor meets demanding requirements not only for design, but especially for function, it is intended for installation instead of a switch with 2-wire connection. It reacts immediately to the movement of a person in the detection zone of the sensor by emitting infrared rays. It monitors your chosen area (room, garden, yard, area in front of the entrance to the house) and if it detects movement in the evening or at night, it will automatically light up. As soon as the movement stops, the device turns itself off after the set time. It saves electricity because it lights up only where people move (stairs, corridors, etc.).

Warning: The device is intended for switching light bulbs, compact fluorescent lamps or LED lamps, it cannot be used
for switching purely inductive loads (fans, etc.).


Product parameters:
- simple installation instead of a switch in standard wiring boxes
- possible activity during the day and at night
- the possibility of connection in a 2-wire distribution

Technical parameters:

- detection angle: 160°
- sensor type: PIR
- operating voltage: 220-240V AC / 50 Hz
- rated load: 2-wire connection - 300W bulbs or other resistive load, 150W energy-saving or LED bulbs
- detection distance: 9m max. (< 24°C)
- switching time: 10sec ± 3sec (min.), 7min ± 2min (max.)
- ambient lighting: 3-2000LUX (adjustable)
- protection: IP20
- operating humidity: < 93℅ RH
- dimension: 86 x 86 x 26 mm
- White color
