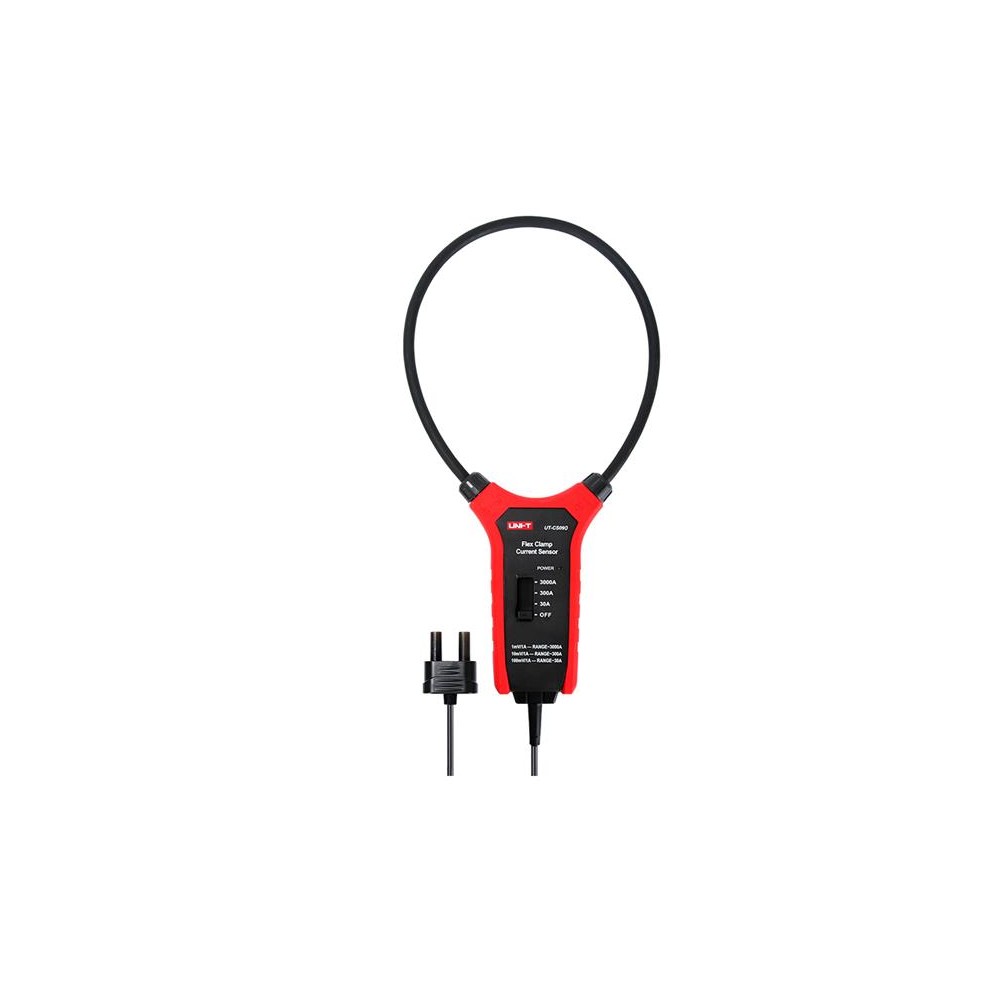

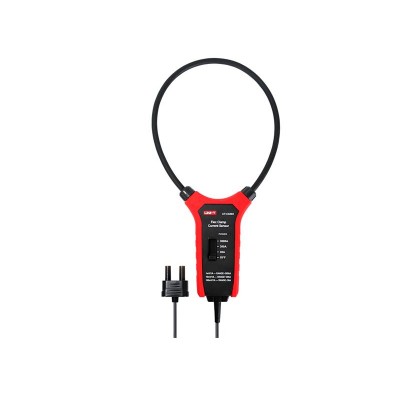

Lankstusis spaustuko jutiklis UNI-T UT-CS09D

Flex Clamp Sensor UNI-T UT-CS09D
UT-CS09D is a stable, safe and reliable 3000A AC non-contact current meter with a flexible Rogowski coil. Directly displays current values ​​when connected to UT206B / 208B multimeters.


Product parameters:

- flexible Rogowski coil
- flexible clamp lock, rotary knob for locking or unlocking.
- battery status indicator
- out of range warning
- AC current measurement from 1,5 A to 3000 A
- maximum output voltage: 3,0 V AC
- switch
- fall resistant: 1m


Technical parameters:

- AC current measurement (range / resolution / corresponding voltage)
30A / 0.1A / ~ 100mV / 1A
300A / 1A / ~ 10mV / 1A
3000A / 10A / ~ 1mV / 1A
- accuracy (middle position): ± (3% + 5)
- frequency response (45Hz to 500Hz)
- switch:
A. 30A (for measuring 1.5 A - 30 A)
B. 300A (for measuring 30 A - 300 A)
C. 3000A (for measuring 300 A - 3000 A)
D. OFF
- measuring loop length: 45,7 cm (18 “)
- measured conductor: maximum diameter 14 cm
- power supply: 3 pcs of batteries R03 (AAA) 1.5V
- working temperature: 0 ° C - 50 ° C
- working humidity: ≤80% relative humidity
- measurement category: CAT IV 600V
- device dimensions: 267 x 119.4 x 34 mm
- weight: approx. 260g (including batteries)
- accessories: manual, BNC adapter, battery
- packaging: 1 blister / 10 cartons
