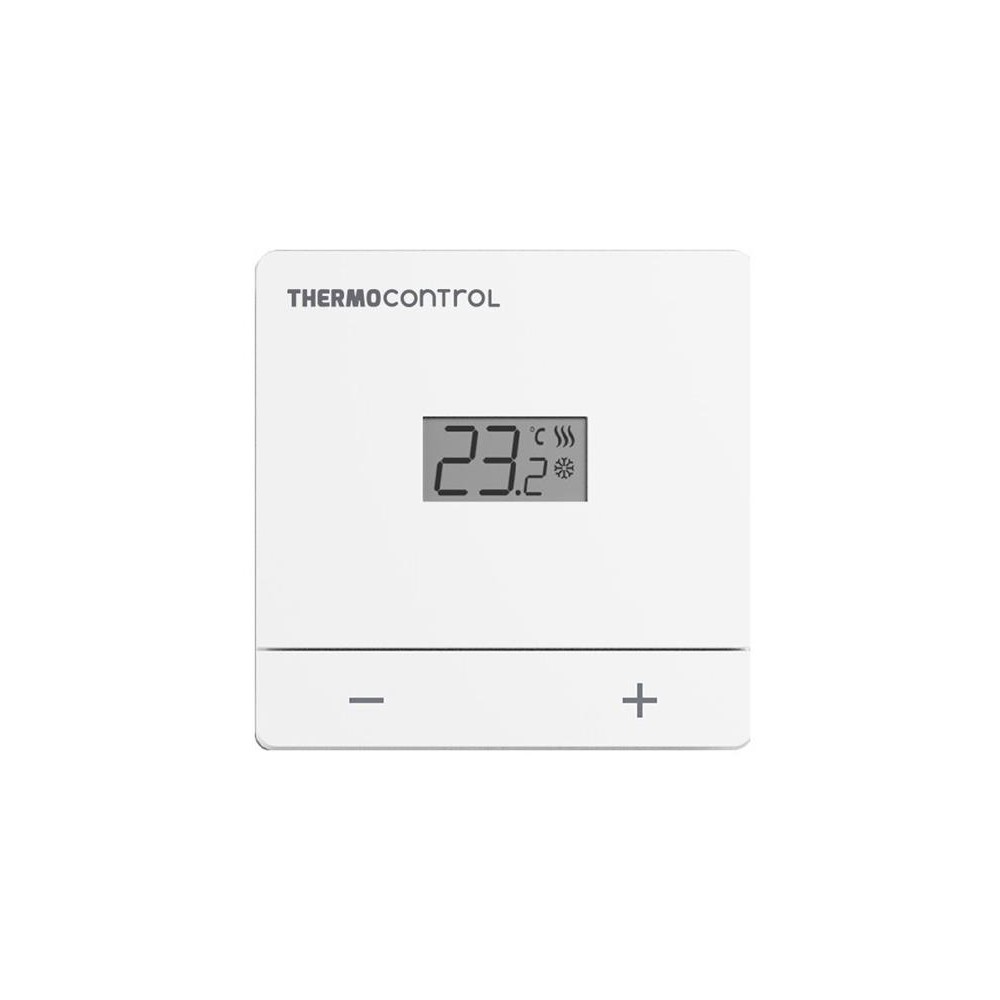

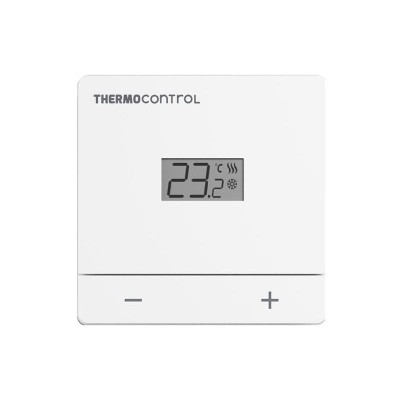

Termostatas THERMOCONTROL TC 20W-230

Wired thermostat powered from the mains (230V). Used for wired control of heating or cooling devices. The principle of its operation is based on maintaining comfortable conditions in the room, in accordance with the constant temperature set by the user. It is connected directly to the heat source. For better customization, the model is available in two colors. Safe, reliable, easy to use.

- minimalistic design
- wired communication
- option to lock the keys
- voltage-free contact
- program change of relay type – no voltage open (NO) or no voltage closed (NC)
- possibility to set the minimum and maximum temperature
- wall bracket included in the package

Technical parameters:

- Power supply: 230V
- Max. load: 3 (1) A
- Temperature control range: 5 – 35°C
- Temperature setting accuracy: 0.1°C
- Control algorithm: TPI or Hysteresis (±0.2°C to ±2°C)
- Communication: Wired
- Output: NO/COM (no voltage)
- Degree of protection: IP30
- Dimensions [mm]: 80 x 80 x 22
