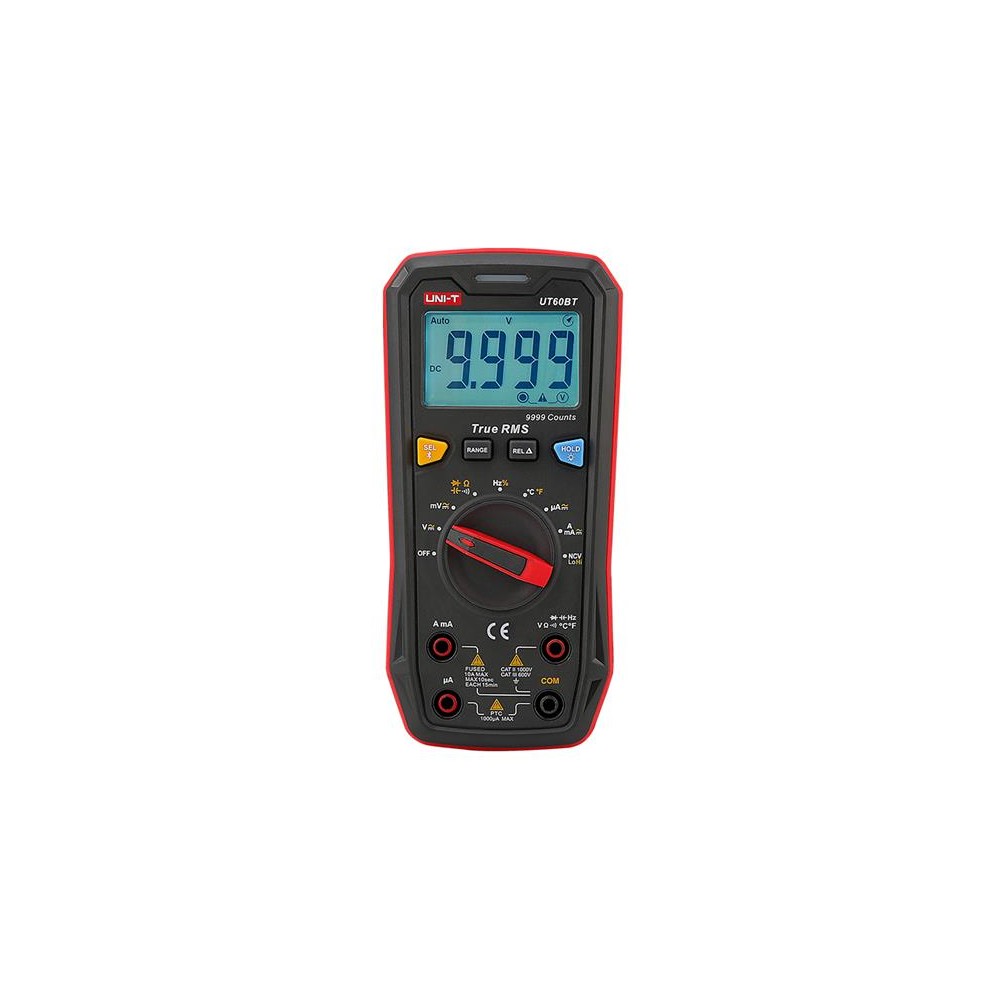

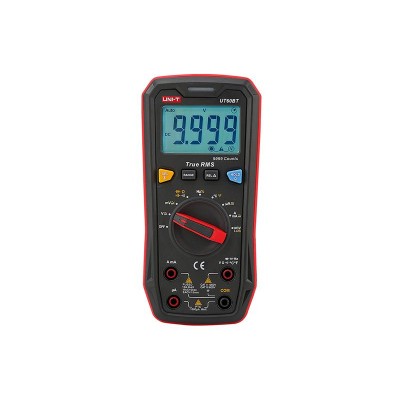

Multimetras UNI-T UT60BT

The UT60BT is a digital multimeter with a display range of 9999, which allows the measurement of true RMS values ​​of voltages and currents with automatic and manual range selection. It has 1000V rms overload protection on all ranges, the current range is protected by a 10A / 1000V, 6.35 x 32mm tubular fuse. If you approach the limit values ​​≥990.0V / ≥9.900A when measuring voltages and currents, an alarm sounds and the "OL" character is displayed when the limit values ​​are exceeded. It also allows the measurement of resistance, capacity, temperature, frequency, duty cycle, circuit continuity and semiconductor junctions. The circuit is optimized for non-contact electric field measurement in two subranges. The multimeter is equipped with a modern processor with a fast analog-to-digital converter (3 times / s conversion) and with the transmission of measured values ​​via Bluetooth via low-energy wireless technology 802.15.4. , to a mobile phone or tablet with the Connect application installed.

The entire construction of the multimeter is equipped with a durable cover with double insulation and has European CE certification and meets the safety classification CAT II 1000V / CAT III 600V. The device is suitable for work in a laboratory or workshop, as well as for common electrical practice. It is powered by standard batteries 3 pcs x 1.5V, AAA, which thanks to low consumption lasts up to 500 hours.

Product parameters :

- backlit display range: 9999
- voltage measurement: up to ± 1000V / DC / AC rms
- current measurement: up to ± 10A / DC / AC rms
- resistance measurement: up to 99.99MΩ
- capacity measurement: up to 9,999mF
- temperature measurement: with supplied type K probe up to 250 ° C
- frequency measurement: up to 9.999MHz
- duty cycle measurement: up to 1kHz
- measurement modes: auto / manual / REL / RMS / HOLD / NCV EFLo / NCV EFHi
- circuit continuity measurement
- measurement of semiconductor junctions
- non-contact NCV measurement
- optical and acoustic alarms
- Bluetooth for transmission of measured data
- protection of voltage inputs against overload above 1000V
- protection of current input 10A by fast fuse
- input impedance approx. 10MΩ for DCV, in the DCmV range then 3GΩ
- power supply: 3 x 1.5V, AAA
- consumption in low power consumption during measurement: about 2 mA
- sleep consumption: <30 μA
- operation on one set of batteries: 500 hours
- low battery indication: yes
- automatic shutdown (sleep on inactivity): yes, after 15 minutes


Technical parameters :

- DC voltage measurement (input impedance is about 3GΩ in the DCmV range, 10MΩ in other ranges):
(range / resolution / accuracy)
9.999 mV / 0.001mV / ± (0.7 % + 8)
99.99 mV / 0.01 mV / ± (0.7 % + 8)
999.9 mV / 0.1 mV / ± (0.5 % + 3)
9.999 V / 0.001 V / ± (0.5 % + 3)
99.99 V / 0.1V / ± (0.5 % + 3)
999.9 V / 0.1V / ± (0.5 % + 3)
- Maximum input voltage: ± 1000V, alarm sounds at 990.0V, "OL" is displayed at >1000V.
- Overload protection 1000V RMS (DC / AC)


- AC voltage measurement (input impedance approx. 10MΩ,):
(range / resolution / accuracy in the range 40Hz to 400Hz, sine RMS)
9.999 mV / 0,001mV / ± (1 % + 3)
99.99 mV / 0,01 mV / ± (1 % + 3)
999.9 mV / 0,1 mV / ± (0,8 % + 3)
9.999 V / 0,001 V / ± (0,8 % + 3)
999.9 V / 0,1V / ± (0,8 % + 3)
- Maximum input voltage: AC1000V, alarm sounds at 990.0V, "OL" is displayed at >1000V.
- Overload protection 1000V RMS (DC / AC)


- DC current measurement:
( range / resolution / accuracy)
999.9 μA / 0.1 μA / ± (0.8% + 3)
999.9 mA / 0.1 mA / ± (1.0% + 3)
9.999 A / 0.001 A / ± (1.0% + 3)
- Alarm sounds at ≥9,900A, "OL" is displayed at >10.00 A.
- Overload protection: 1000V RMS, fast fuse 10A


- AC current measurement:
( range / resolution / accuracy in the range of 40Hz to 400Hz)
999.9 μA / 0.1 μA / ± (1.0% + 3)
999.9 mA / 0.1 mA / ± (1.2% + 3)
9.999 A / 0.001 A / ± (1.2% + 3)
- Alarm sounds at ≥9,900A, "OL" is displayed at >10.00 A.
- Overload protection: 1000V RMS, fast fuse 10A


- Resistance measurement:
( range / resolution / accuracy)
999.9 Ω / 0.1 Ω / ± (0.8 % + 2)
9.999 kΩ / 0.001kΩ / ± (0.8 % + 2)
99.99 kΩ / 0.01 kΩ / ± (0.8 % + 2)
999.9 kΩ / 0.1 kΩ / ± (0.8 % + 2)
9.999 MΩ / 0.001 MΩ / ± (1.5 % + 3)
99.99 MΩ / 0.01 MΩ / ± (2.0 % + 5)
- 1000V overload protection


- Capacitor capacity measurement:
( range / resolution / accuracy)
9.999 nF / 0,001 nF / ± (4% + 10)
99.99 nF / 0.01 nF / ± (4% + 5)
999.9 nF / 0.01 nF / ± (4% + 5)
9.999 /F / 0.001 µF / ± (4% + 5)
99.99 µF / 0.01 µF / ± (4% + 5)
999.9 μF / 0.1 μF / ± (4% + 5)
9.999 mF / 0.001 mF / ± (10%)
- For kapacity100nF capacities, use REL mode
- 1000V overload protection


- Frequency measurement:
( range / resolution / accuracy)
99.99 Hz to 9.999 MHz / 0.01 Hz to 0.001 MHz / ± (0.1% + 5)
- Overload protection 1000V RMS (DC / AC)


- Duty cycle measurement for square waves ≤10kHz:
( range / resolution / accuracy )
0.1% to 99.9% / 0.1% / ± (3% + 5)
Overload protection 1000V RMS (DC / AC)


- Diode test:
voltage at terminals without load about 3.3 V
the voltage drop at a good silicon junction is 0.5 to 0.8 V
measurement resolution 0.001 V


- Circuit continuity test:
the buzzer tone will not sound if the resistance is greater than 30 Ω
the tone sounds if the resistance is less than 30 Ω
Overload protection 1000V RMS (DC / AC)


- Temperature measurement:
( range / resolution / accuracy )
-40 ° C to 0 ° C / 1 ° C / ± 4 ° C
0 ° C to 100 ° C / 1 ° C / ± (1.0% + 5)
100 ° C to 1000 ° C / 1 ° C / ± (2.0% + 5)

-40 ° F to 32 ° F / 1 ° F / ± 5 ° F
> 32 ° F - 212 ° F / 1 ° F / ± (1.5% + 5)
> 212 ° F - 1832 ° F / 1 ° F / ± (2.5% + 5)
The K-type thermocouple in the accessory is only usable for measuring temperatures below 250 ° C / 482 ° F.
1000 V RMS overload protection (DC / AC)


General characteristics :

- ambient operating temperature: 0 ° C to 40 ° C
- storage temperature: -10 ° C - 50 ° C (14 ° F - 122 ° F)
- working relative humidity: ≤75% (0 ° C to 30 ° C), ≤50% (30 ° C to 40 ° C)
- working altitude: 0 to 2000m
- environment of use: indoor use
- EMC resistance: for radio frequency field 1V / m
- power supply: 3 x 1.5V, AAA
- product color: red and gray
- net product weight: 290 g
- product weight: about 400g (including batteries)
- product size: 169 x 81 x 46 mm


Contents of individual packaging :

- UT60BT multimeter with storage case: 1pc
- battery 1.5V, AAA: 3pcs
- fuse F1: F 10A / 250V (6.35 x 32mm) - in the device: 1pc
- test cables with spikes in category CAT II 1000V / CAT III 600V: 1pair
- temperature probe: 1pc
- instructions for use: 1pc


Wholesale packaging :

- standard quantity in a carton: 20pcs
- standard carton size: 420 x 320 x 300 mm


- Manufacturer: UNI-TREND
- www.uni-t.cz
