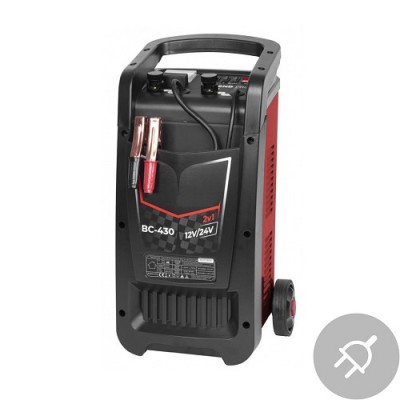

Automobilių užvedimo starteris BC-430

The starting trolley is used for charging and starting lead-acid batteries with a voltage of 12 V / 24 V, used, for example, in passenger cars, motorcycles, vans, tractors, trucks, etc.
It is equipped with an 8-position function controller (OFF; 1st-3th slow charge; 4th-6th fast charge with timer (max. 60 min.), 7th start function), ammeter, thermal fuse and overload protection.
The charging current supplied by the device decreases according to the W curve and in accordance with DIN 41774.
It is always recommended that the nominal power of the battery charger corresponds to the capacity of the rechargeable batteries.
A charger with too low a power may take too long to charge the battery, while a charger with too high a power may damage the battery.
The recommended charging current is about one tenth of the capacity of the Ah battery (eg for a 40Ah battery, the correct current is approximately 4A).

Technical parameters:

- Charging current ef / ari: 30A
- Voltage / frequency: 230V / 50Hz
- Protection class: IP21
- Battery capacity: 20-700Ah
- Dimensions: 64.5x30x31cm
- Starting current: 250A
- Starting power (Pmax, START): 2400W / 4000W
- Charging power (Pmax, START): 1200W / 2000W
