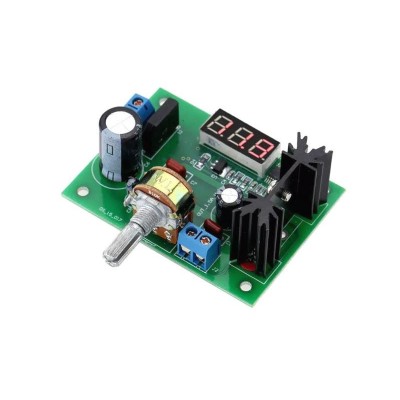

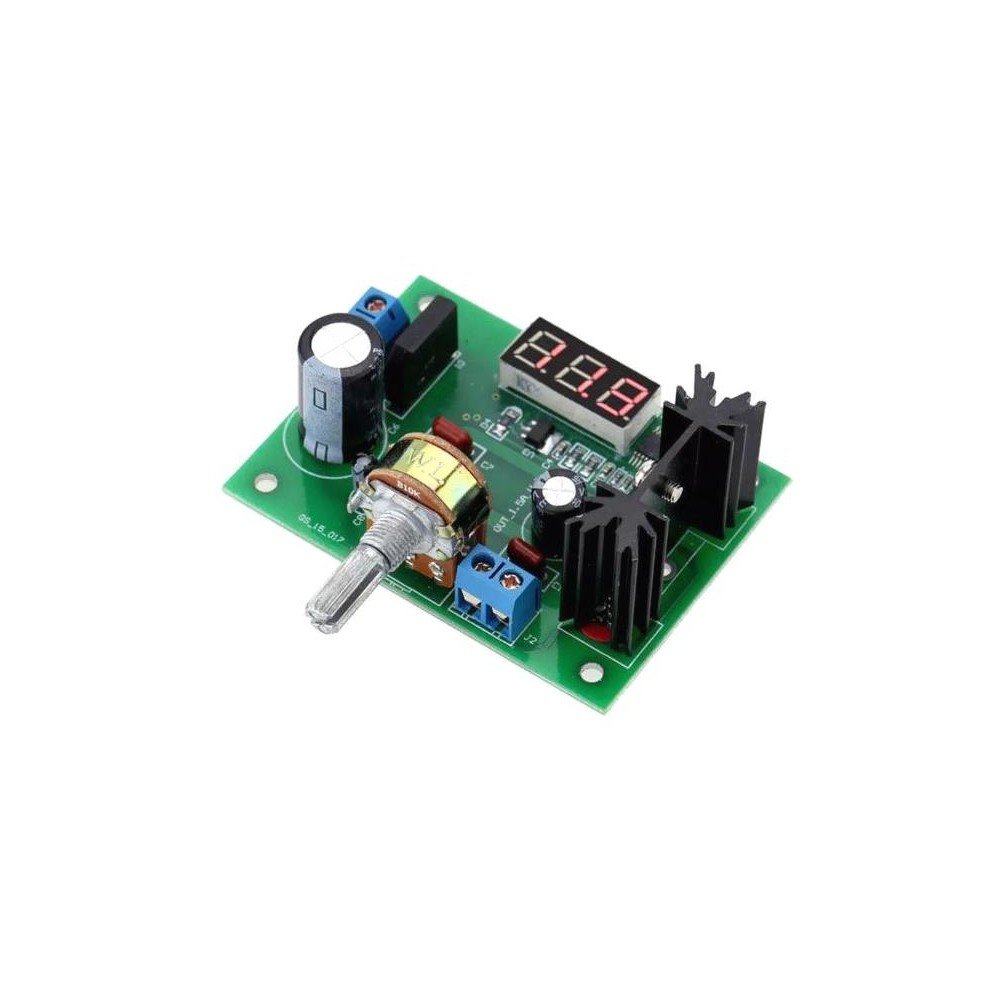

Power supply module, stabilized power supply with LM317 and voltmeter

Stabilized AC / DC-DC power supply 0–22V (0–30VDC) /1.25–28V adjustable with IO LM317.


Technical parameters:

-AC input voltage: 0-22V ~
-DC input voltage: 0-30VDC
-output voltage 1.25-27V adjustable
-output current max.2A
-dimensions 69 × 50 × 27mm

Note:
- An input voltage of 5V or more is required for proper operation of the built-in voltmeter. At lower voltage, the voltmeter does not display.

The product is not a self-functional unit, it requires professional assembly.
