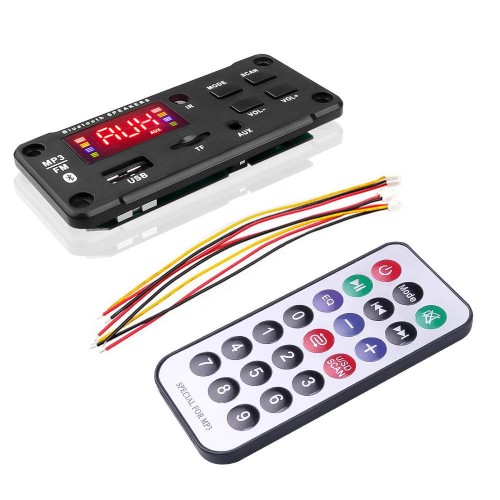

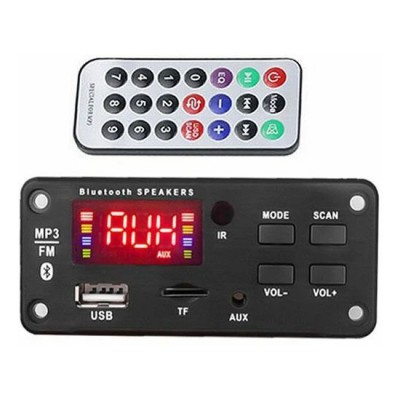

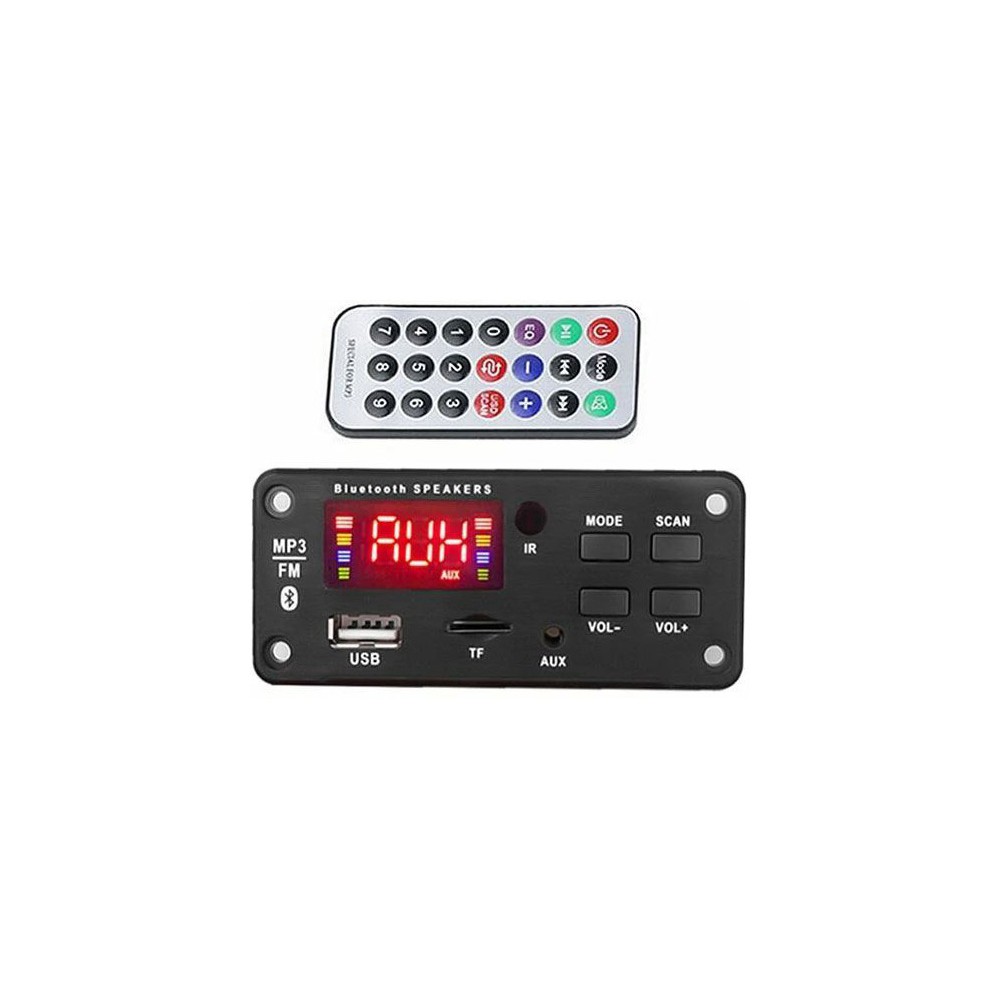

FM radio, MP3 player with bluetooth 5.0, remote control, power supply. 5-14V

Universal module with MP3 player, FM receiver and bluetooth v.5.0 for panel integration. In combination with the nf amplifier, it offers versatile use at a very low price. It differs from the M501B model only by fitting a 5V stabilizer to increase the supply voltage range.


Product parameters:

- micro SD card slot up to 16GB
- USB connector for USB FLASH up to 16GB
- AUX input (jack3,5mm + pins on the printed circuit board)
- output for nf amplifier (pins on the printed circuit board)
- plays MP3, WMA, WAW, FLAC, APE formats
- color LED display
- FM receiver: 87 MHz to 107 MHz with auto tuning
- bluetooth 5.0
- IR remote control

Technical parameters:

- power supply: 5V-14V DC / <250mA
- audio input: 700mV p-p
- operating temperature: -10 ° C to + 50 ° C
- dimensions: 92 × 41 × 21mm

The product is not a stand-alone unit, it requires professional installation.
