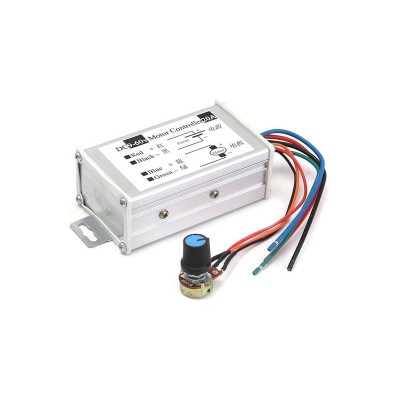

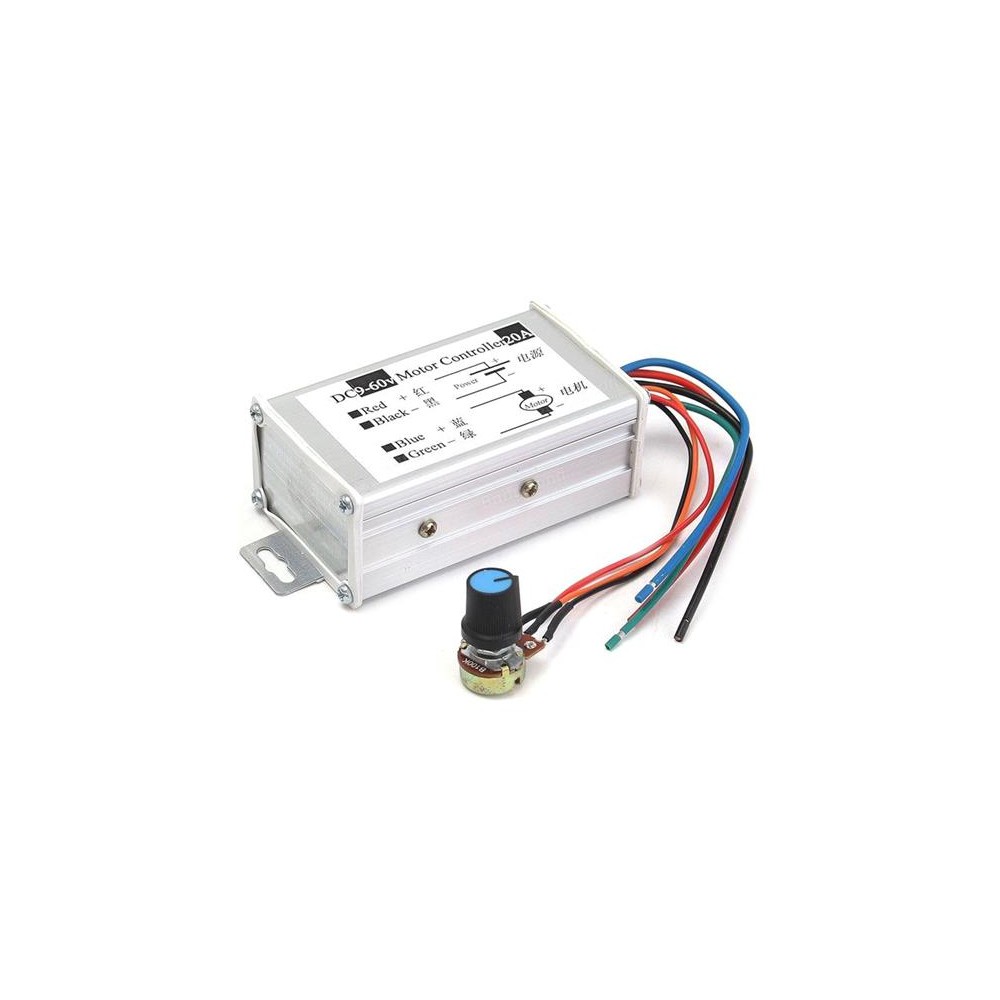

PWM speed regulator for DC motors up to 20A

Pulse PWM controller (PWM driver) for DC motors. Operating voltage in the range from 9 to 60 V, maximum current 20 A, adjustable power - potentiometer.


Technical parameters:

- supply voltage: DC 9 - 60 V
- max. output power: 1200 W
- max. continuous current: 20 A
- PWM frequency: 25 kHz
- control range: 0 - 100% by changing the pulse width
- dimensions: 92 × 52 × 36 mm
- protection against polarity reversal
- aluminum box for better cooling

The product is not a stand-alone unit, it requires professional installation.
