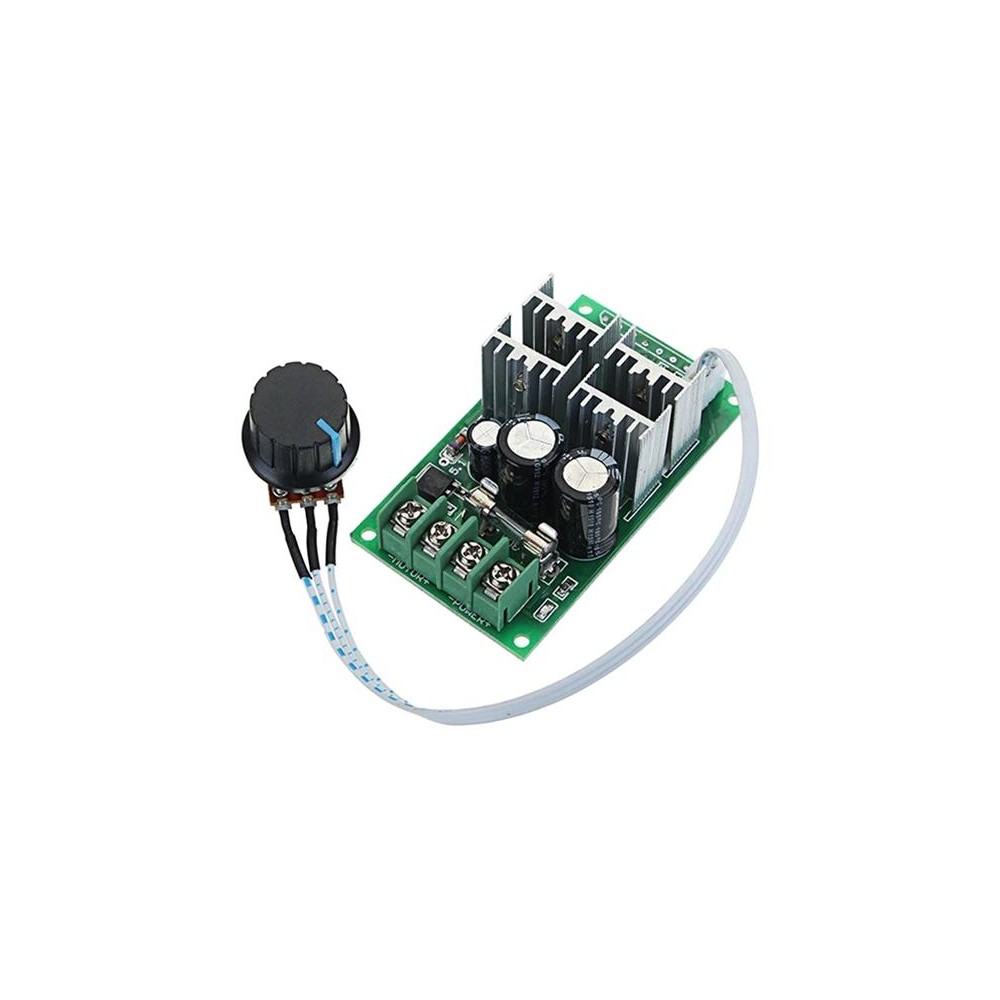

Speed controller PWM DC motors 6-60V 30A

Pulse PWM controller for DC motors.


Technical parameters:

- model: L1239
- supply voltage: DC 6 - 60 V
- max. output power: 1800 W
- max. peak current: 30 A
- max. continuous current: 20 A
- PWM frequency: 15 kHz
- control range 10 - 100% by changing the pulse width
- dimensions: 78 × 45 × 28 mm
- mounting holes: 72 × 39 mm
- knob diameter: 19 mm

The product is not a stand-alone unit, it requires professional installation.
