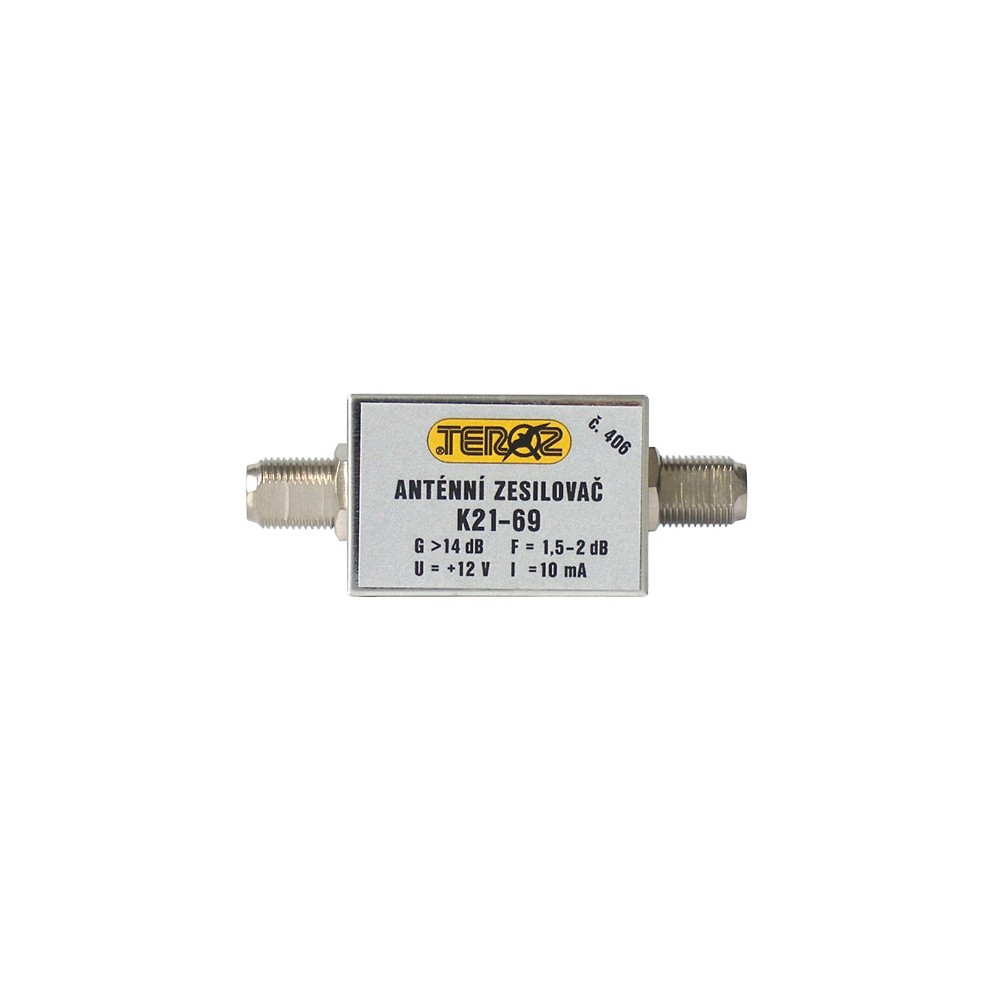

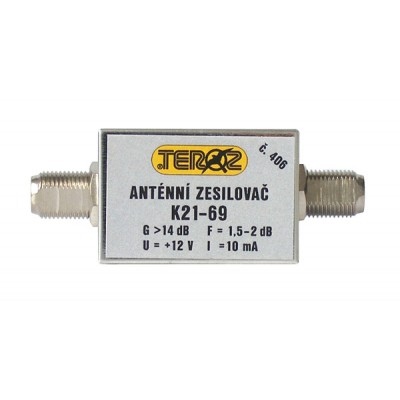

Antenna amplifier Teroz 406X, low noise, UHF, G14dB, F1.5dB, U98dBµV, F-F
The Teroz 406X Antenna Preamplifier is a single-resistor low-noise amplifier K21-69 (470-862 MHz) with a low-noise high-frequency transistor of the BFP series. The amplifier input has a UHF high pass filter that suppresses undesired signals below the operating band.
Technical parameters :
- G gain : 14 dB
- Noise F : 1.5 dB
- Bandwidth : K21 to K69
- Max output level for 2 TV channels : 98 dBμV
- Input and output impedance : 75 Ω
- power to the output connector : 12V / 10mA
- input and output connector : F female
- box dimensions : 24 x 36mm
- installation : indoor
The Teroz 406X Antenna Preamplifier is a single-resistor low-noise amplifier K21-69 (470-862 MHz) with a low-noise high-frequency transistor of the BFP series. The amplifier input has a UHF high pass filter that suppresses undesired signals below the operating band.
Technical parameters :
- G gain : 14 dB
- Noise F : 1.5 dB
- Bandwidth : K21 to K69
- Max output level for 2 TV channels : 98 dBμV
- Input and output impedance : 75 Ω
- power to the output connector : 12V / 10mA
- input and output connector : F female
- box dimensions : 24 x 36mm
- installation : indoor
