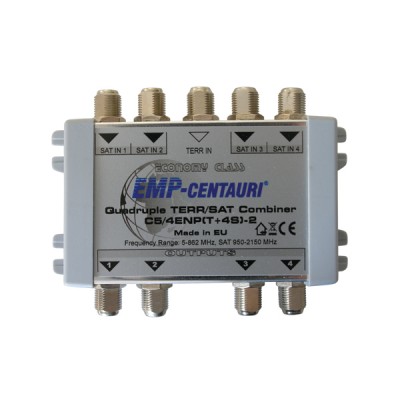

Satellite combiner (C5/4ENP (T+4S)-2), 4xSAT IF+1xTV terr., Indoor, warranty 48 months

Satellite combiner (C5/4ENP (T+4S)-2), 4xSAT IF+1xTV terr., Indoor, warranty 48 months
Satellite combiner with trade name C5/4ENP (T + 4S)-2 (former designation E.107-A) allows connection of up to 4 outputs of satellite converters LNB (up to Quad or Monoblock quad) and merging with terrestrial television DVB-T2, or with terrestrial radio VHF II FM and DAB +(replaces hub in 4 directions for terrestrial broadcasting). The output is four coaxial cables to 4 rooms (apartments) to SAT + TV + R subscriber sockets for connecting televisions, satellite receivers and radios. The satellite path is pass-through for DC voltage, 22 kHz and DiSEqC commands, the terrestrial input is DC blocked. Version with internal cover. Warranty period 48 months.


Technical parameters :

- frequency range of satellite inputs : 950-2300 MHz
- mitochrome range of terrestrial TV + R input : 5-862 MHz
- frequency range of outputs : 5-862 MHz + 950-2300 MHz
- pass attenuation for the band 950-2300 MHz : 2 dB avg
- pass attenuation for the 5-862 MHz band : 9 dB avg
- satin insulation. inputs : 30 dB min
- dimensions (l, w, h) : 10.6 x 7.1 x 3.1 cm
- temperature range : -25 ~ +60 ° C
- indoor installation
