Satellite combiner (C2/1ENP(T+S)-1), 1xSAT IF+1xTV terr., 48 months warranty

Satellite combiner (C2/1ENP(T+S)-1), 1xSAT IF+1xTV terr., 48 months warranty

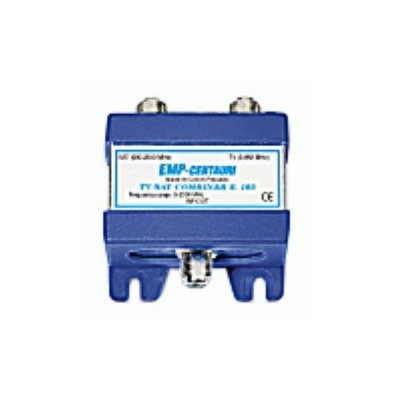

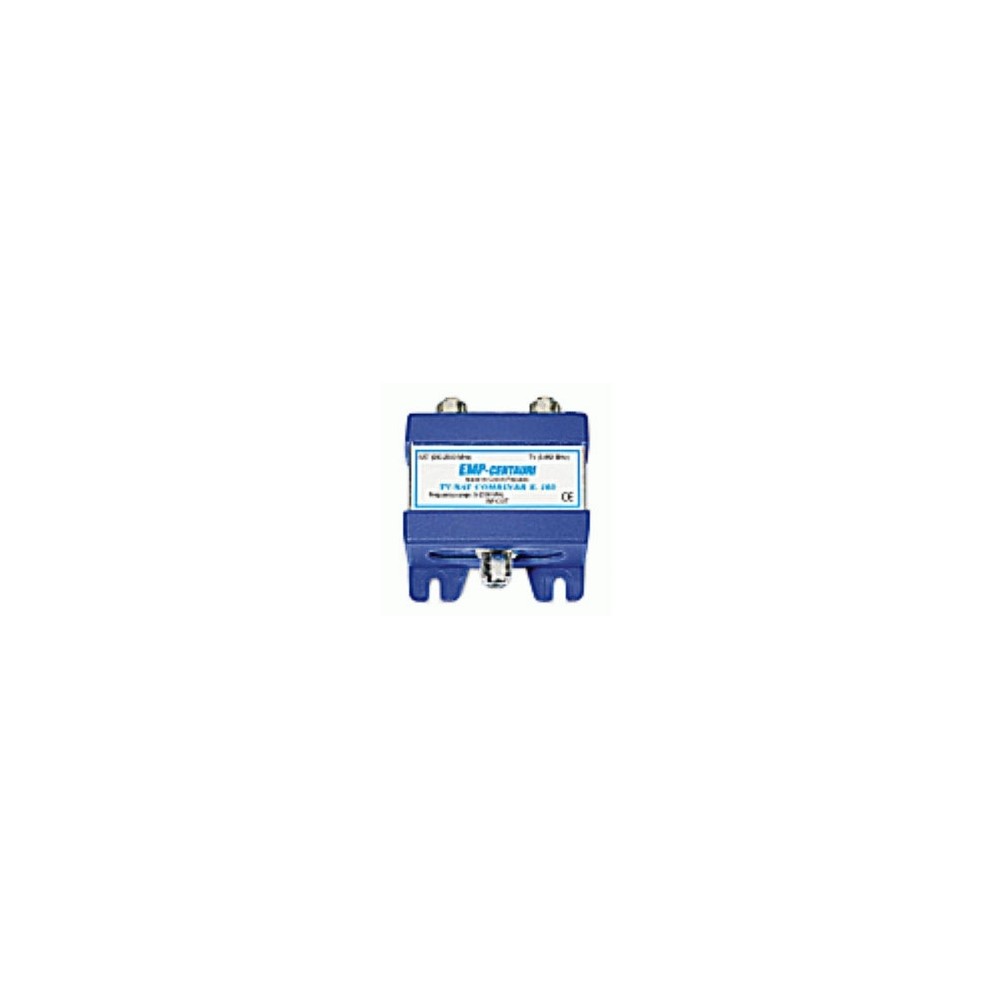

Satellite combiner 1 x SAT IF + 1 x TV terr. under the trade name C2/1ENP(T+S) -1 manufactured by EMP Centauri (older name E.105-A) allows the combination of one output of the satellite converter LNB (Monoblock single LNB) with the output of the terrestrial television antenna DVB-T2. It can also be used to reverse the frequency distribution of the 1xSAT IF + 1xTV terr signal. in one cable to SAT and TV inputs on newer TVs. The satellite path is pass-through for DC power, 22 kHz and DiSEqC commands. The terrestrial pathway is DC blocked. The cover allows indoor use. E.Lite Class product line with a warranty period of 48 months.

Technical parameters :

- frequency range of satellite inputs: 950-2150 MHz
- terrestrial range of terrestrial TV+R input: 5-862 MHz
- output frequency range: 5-862 MHz + 950-2150 MHz
- pass attenuation for the band 950-2150 MHz: 3 dB avg
- pass attenuation for the 5-862 MHz band: 2 dB avg
- slope of filters: 20 dB min
- dimensions (l, w, h): 5.4 x 6.0 x 3.2 cm
- temperature range: -25 ~ +60°C
- weight: 0.070kg
- indoor installation
