HDMI modulator Johansson 8203

HDMI modulator to DVB-T, DVB-C, DTMB and ATSC: 1 HDMI input / 1 RF input - output

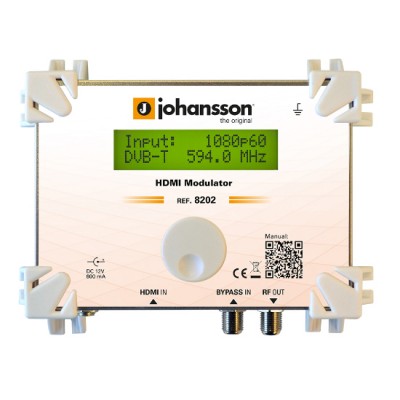

This professional HDMI modulator converts the HDMI signal into an RF signal, suitable for distribution with coaxial cables. The 8202 is suitable for continuous use, making it one of the most reliable HDMI modulators on the market. Features: 1 HDMI input, capable of receiving all resolutions up to 1080p60. 1 RF input for combining another pass-through signal. 1 RF output: DVB-T, DVB-C, DTMB and ATSC. The perfect picture thanks to MER technology is comparable to other premium end devices. The menu interface combined with the Johansson rotary button is very easy to use. Optimized for cascading multiple modulators in one distribution.

HDMI input
Video resolution: 576i to 1080p
Video encoding: H264/AVC
Audio encoding: MPEG1 Layer II / AAC
Connector type: HDMI Type A

RF input
MHz frequency: 5 - 1218
Throughput attenuation dB: 2

RF output (RF input signal + modulated HDMI signal transponder)
Frequency of the modulated channel MHz: 174 - 1218
Output level dBµV: 59 - 99 (adjustable)
MER dB: Typ. 38

Output parameters for DVB-T
Transmission speed Mb/s: 2 – 23
Channel Bandwidth MHz: 6.7 or 8
Modulation: QPSK / 16QAM / 64QAM
Protection interval: 2K - 8K

Output parameters for DVB-C
Transmission speed Mb/s: 2 – 23
Channel Bandwidth MHz: 6.7 or 8
Modulation: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Protection interval: no

Output parameters for ATSC-T
Transmission speed Mb/s: 2 - 15
MHz Channel Bandwidth: 6
Modulation: 8VSB
Protection interval: no

Output parameters for ATSC-C
Transmission speed Mb/s: 2 – 23
MHz Channel Bandwidth: 6
Modulation: 64QAM, 256QAM
Protection interval: no

Output parameters for DTMB
Transmission speed Mb/s: 2 – 23
MHz Channel Bandwidth: 8
Modulation: QPSK, QAM-4NR, 16QAM, 32QAM, 64QAM
Protection interval: 2K - 8K, PN phase synchronization

Basic configuration: Earth | Output Type | Output frequency | Output Level | LCN | Channel name
Advanced configuration: RF | Video & Audio | SID | PMT, VPID, APID | NIT, ONID | PDS | TS ID
Power supply: Input voltage: 12 VDC
Consumption: 5 W Typ. (6 W max.) | Jack Ø 2.1 mm
Dimensions, weight: 155 x 120 x 60 mm. | 0.6 kg
Accessories: 12V power adapter
