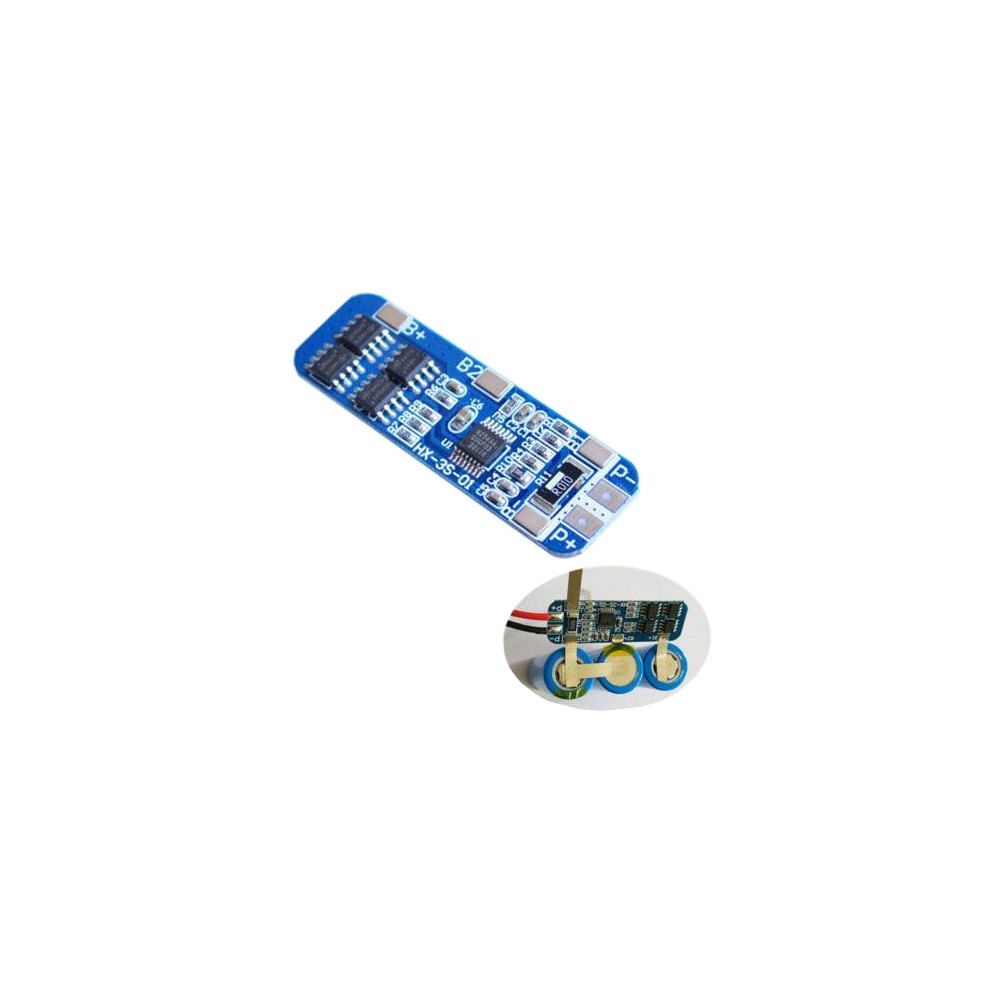

Protective circuit and balancer for 3 Li-Ion cells 18650, current up to 8A

Protection and charging module for three Li-Ion or LiFePO cells with control of each cell separately.


Technical parameters:

- supply voltage: 12.6-12.7 V
- short circuit protection
- overload protection (max.10A)
- overcharge protection <4.25 V
- discharge protection> 2.54 V
- max. charging and load current 8 A
- no-load current: <6uA
- dimensions: 50 × 16 × 3 mm

The product is not a self-functional unit, it requires professional assembly.
