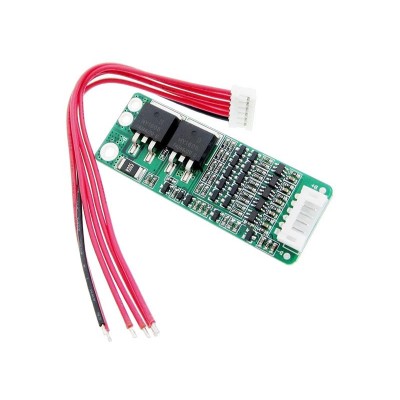

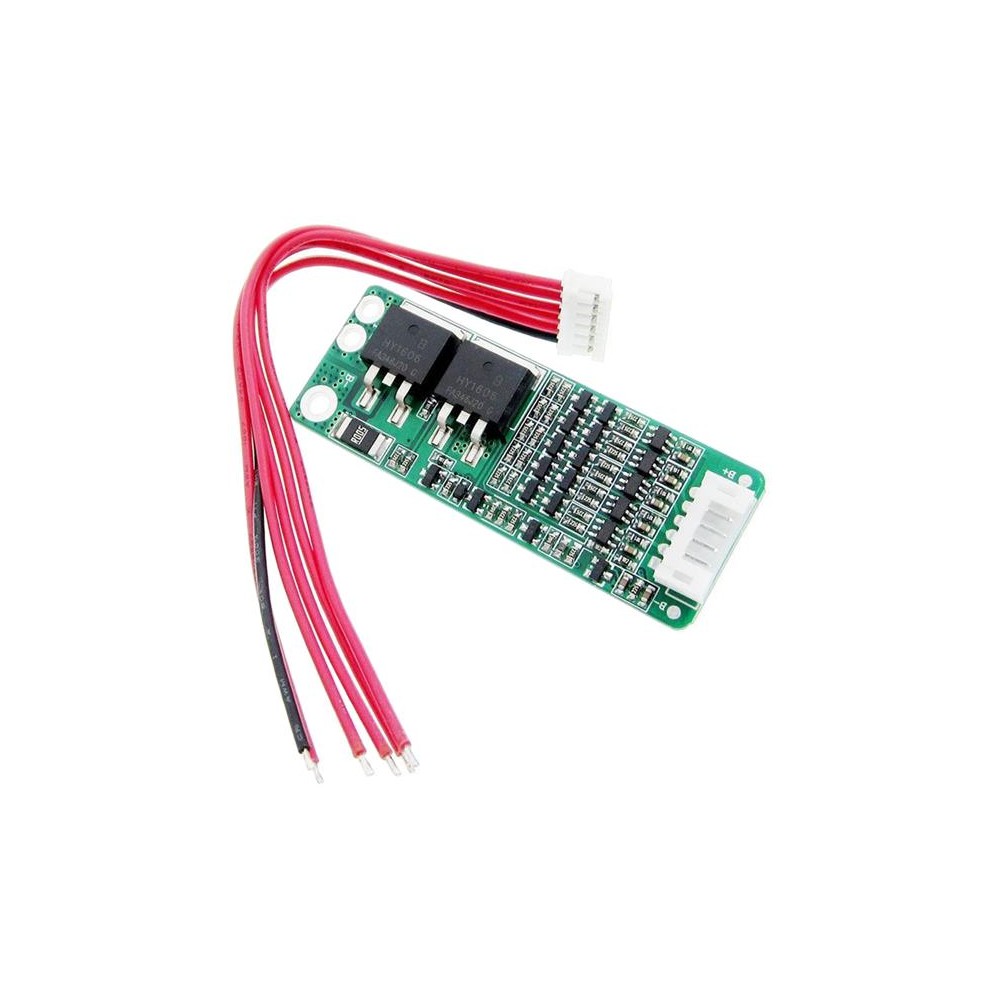

Protective circuit and balancer for 5 Li-Ion cells 18650, current up to 15A

Protection and charging module for 5 Li-Ion or LiFePO cells with control of each cell separately.


Technical parameters:

- short circuit protection
- overload protection (max.55A)
- overcharge protection <4.2V
- recharge: <4.1V
- discharge protection> 2.8V
- discharge discharge:> 3V
- max. charging and load current 15A
- dimensions 60 × 30mm

The product is not a stand-alone unit, it requires professional installation.
