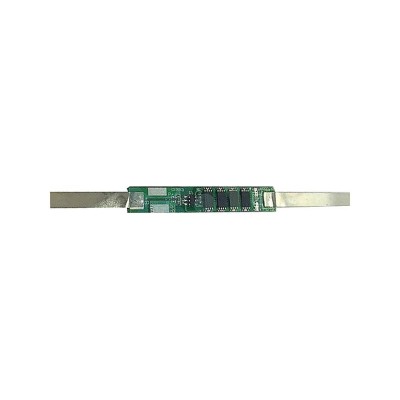

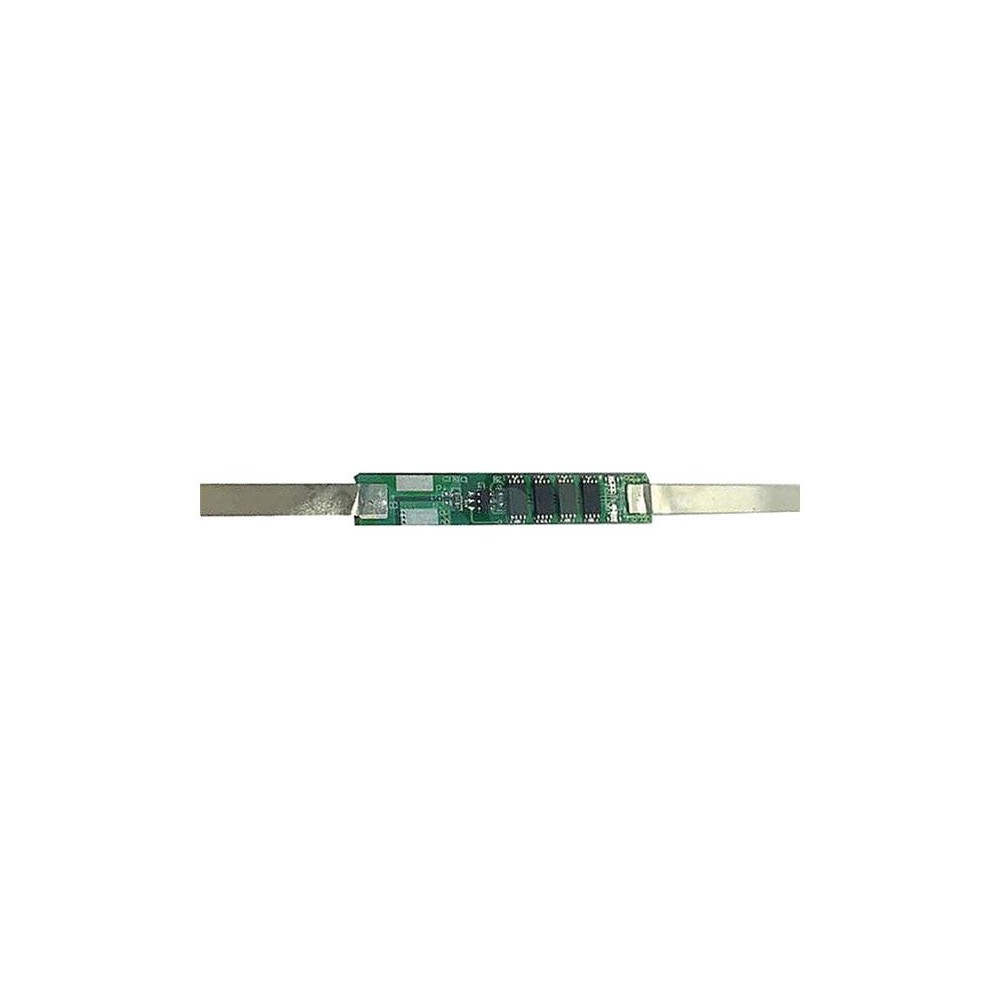

Protective circuit for 1 Li-Ion cell 18650, current up to 6A, strip terminals

Protection and charging module for Li-Ion or LiFePO cell. The cell is connected to the strip terminals, the charging voltage to the printed circuit boards.


Technical parameters:

- short circuit protection
- overload protection (max.6A)
- overcharge protection <4.275V
- protection against excessive discharge> 2.5V
- max. charging current 6A
- internal resistance <40mohm
- dimensions 50 × 8mm + strip terminals

The product is not a stand-alone unit, it requires professional installation.
