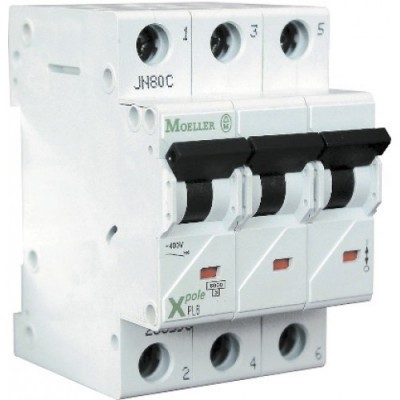

Circuit breaker EATON 25A PL6-B25/3

Circuit breaker EATON 25A PL6-B25/3
Economical range of circuit breakers suitable for house installations. Characteristic B - use for protection of light and socket circuits with low current surges. Off-On Signaling.

Properties:

- Short-circuit capability at 230V Icn EN 60898: 6 kA
- Short-circuit capability at 400V Icn EN 60898: 6 kA
- Rated current: 25 A
- Rated voltage: 400 V
- Mounting depth: 70.5 mm
- Number of modules in one row: 3
- Optional equipment: Yes
- Shunt-switched neutral conductor: No.
- Suitable for flush mounting: No.
- Overvoltage Category: 3
- Pollution degree: 2
- Number of fused poles: 3
- Energy limitation class: 3
- Number of poles: 3
- Short-circuit capability at 400V Icu IEC 60947-2: 0 kA
- Short-circuit capability at 230V Icu IEC 60947-2: 6 kA
- IP rating: IP20
- Voltage type: AC
- Tripping characteristic: B
- Frequency: 50 - 60 Hz
- Width: 53.1 mm
- Length: 85 mm
- Height: 73 mm
- Weight: 360 g
