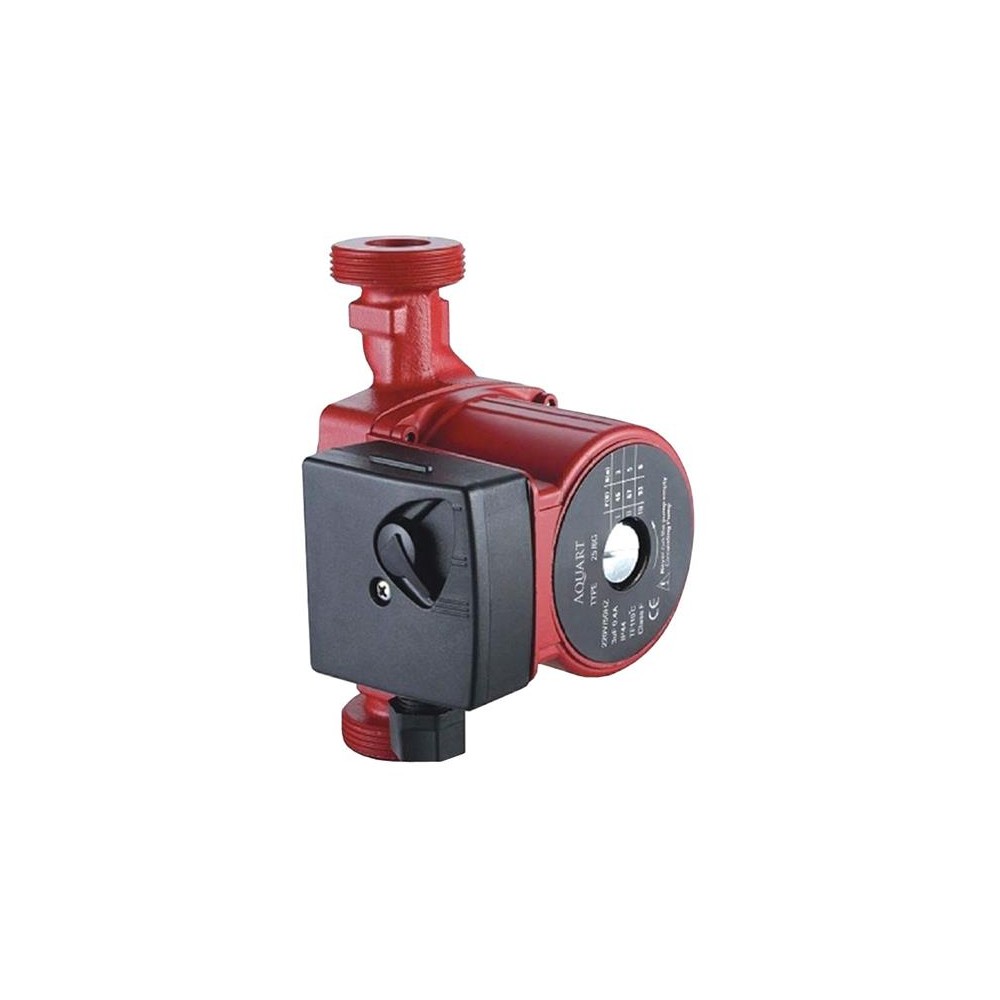

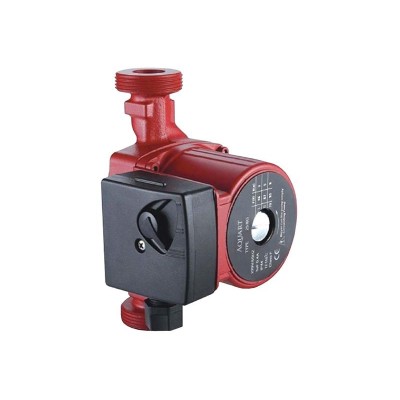

Circulation pump TC 25/6/180

Circulation pump TC AQUART 25/6/180
Circulation pump for circulating hot or cold water.

Product parameters:

Application:

- in heating systems
- in hot water systems
- in cooling and air-conditioning systems

Features and Benefits:

- low noise level
- low power consumption
- wide range of use

Technical parameters:

- Rated power: 93/67/46
- Pipe width: 25 mm
- Qmax flow: 55l / min
- Hmax displacement: 6 m
- gross weight: 2.8 kg
- net weight: 2.7 kg
- Liquid temperature: 10 - 110 ° C
- max. operating pressure: 10 bar
- Ambient temperature: 40 ° C
- Built-in length: 180 mm
- Energy Class: C (Standard Circulation Pumps)

Power supply:

- Supply voltage: 1 ~ 230V
- Frequency: 50 / 60Hz

Materials:

- pump housing: cast iron
- Impeller: PPO
- engine cover: aluminum
- motor winding: copper
- shaft: ceramic
- bearing: ceramic

Engine:

- Insulation class: F - H
- protection class: IP44
- setting options
- 3-speed speed switching
