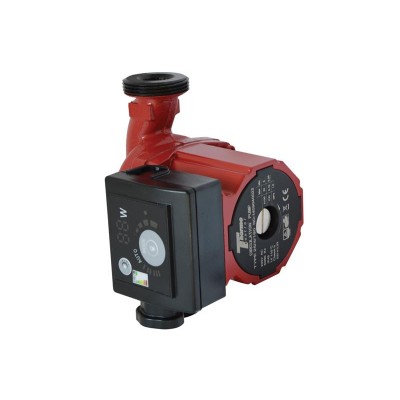

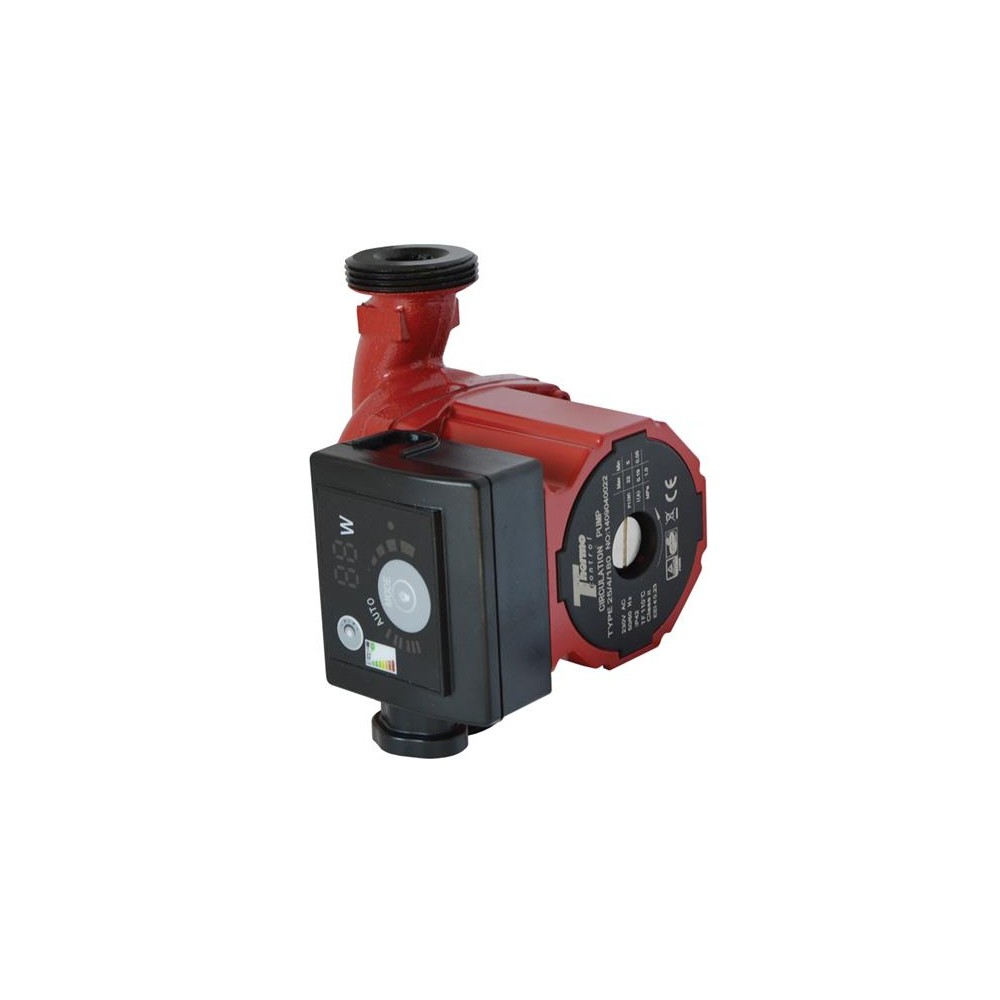

Circulation pump TC 25/4 / 180E
115,59 €
Brutto
TP-06690190-EU
El. Bankininkystė, Grynais arba Visa - Mastercard
Nemokamas pristatymas užsakymams nuo 59€.
Suteikiame 14 dienų pinigų grąžinio garantiją
Circulation pump TC AQUART 25/4 / 180E
Circulation pump for circulating hot or cold water.
Product parameters:
Application:
- in heating systems
- in hot water systems
- in cooling and air-conditioning systems
Features and Benefits:
- low noise level
- low power consumption
- wide range of use
Technical parameters:
- Rated power: 5/35
- Pipe width: 25 mm
- Qmax flow: 48l / min
- Hmax displacement: 4 m
- gross weight: 2.4 kg
- net weight: 2.2 kg
- Liquid temperature: 10-110 ° C
- max. operating pressure: 10 bar
- Ambient temperature: 40 ° C
- Built-in length: 180 mm
- Energy class: A (Economical Circulation Pumps)
Power supply:
- Supply voltage: 1 ~ 230V
- Frequency: 50 / 60Hz
Materials:
- pump housing: cast iron
- Impeller: PPO
- engine cover: aluminum
- motor winding: copper
- shaft: ceramic
- bearing: ceramic
Engine:
- Insulation class: F - H
- protection class: IP44
- setting options
- 3-speed speed switching
Circulation pump for circulating hot or cold water.
Product parameters:
Application:
- in heating systems
- in hot water systems
- in cooling and air-conditioning systems
Features and Benefits:
- low noise level
- low power consumption
- wide range of use
Technical parameters:
- Rated power: 5/35
- Pipe width: 25 mm
- Qmax flow: 48l / min
- Hmax displacement: 4 m
- gross weight: 2.4 kg
- net weight: 2.2 kg
- Liquid temperature: 10-110 ° C
- max. operating pressure: 10 bar
- Ambient temperature: 40 ° C
- Built-in length: 180 mm
- Energy class: A (Economical Circulation Pumps)
Power supply:
- Supply voltage: 1 ~ 230V
- Frequency: 50 / 60Hz
Materials:
- pump housing: cast iron
- Impeller: PPO
- engine cover: aluminum
- motor winding: copper
- shaft: ceramic
- bearing: ceramic
Engine:
- Insulation class: F - H
- protection class: IP44
- setting options
- 3-speed speed switching
